DOCK 6.12 Users Manual



Principal contributors to the current code:

William Joseph Allen (TACC)
Trent Balius (FNLCR)
John Bickel (SUNY-Stony Brook)
Brock Boysan (SUNY-Stony Brook)
Scott R. Brozell (Rutgers University)
Chris Corbo (SUNY-Stony Brook)
Brian Fochtman (SUNY-Stony Brook)
Lingling Jiang (Columbia University)
P. Therese Lang (UCB)
Guilherme D. R. Matos (SUNY-Stony Brook)
T. Dwight McGee Jr. (SUNY-Stony Brook)
Demetri Moustakas (Harvard)
Sudipto Mukherjee (Temple)
Steven Pak (SUNY-Stony Brook)
Lauren Prentis (SUNY-Stony Brook)
Courtney Singleton (SUNY-Stony Brook)
Yuchen Zhou (SUNY-Stony Brook)

Robert Rizzo (SUNY-Stony Brook)
David Case (Rutgers University)
Brian Shoichet (UCSF)
Irwin Kuntz (UCSF)

For more information about previous contributors, please see the History .





Copyright © 2006-2024
Regents of the University of California
All Rights Reserved

Last updated August 21, 2024


Table of Contents

1. Introduction

1.1. General Overview

1.2. What Can DOCK Do for You

1.3. Installation

1.4. What's New in DOCK 6

1.5. Overview of the DOCK Suite of Programs

2. DOCK

2.1. Overview

2.2. History

2.3. Command-line Arguments

2.4. The Parameter Parser

2.5. Sampling Methods

2.5.1. Rigid and Flexible Ligand Docking

2.5.1.1 Anchor and Grow

2.5.1.2 Identification of Rigid Segments

2.5.1.3 Manual Specifications of Non-Rotatable Bonds

2.5.1.4 Pruning the Conformation Search Tree

2.5.1.5 Time Requirements

2.5.1.6 Growth Tree and Statistics

2.5.1.7 Rigid Body and Flexible Ligand Docking Input Parameters

2.5.2. De novo Design

2.5.2.1. DOCK_DN Input Parameters

2.5.2.2. DOCK_D3N Input Parameters

2.5.3. DOCK_GA: Molecular Evolution using a Genetic Algorithm

2.5.3.1 DOCK_GA Input Parameters

2.5.3.2 DOCK_GA RDKit Input Parameters

2.5.4. Hierarchical DataBase (HDB) Search

2.5.4.1 HDB Input Parameters

2.5.5. Covalent Attach-and-Grow

2.5.5.1 Covalent Input Parameters

2.6. Fragment Library Generation

2.6.1 Input Parameters

2.7. Database Filter

2.7.1 Input Parameters

2.7.2 RDKit Input Parameters

2.8. Ligand RMSD

2.8.1 Input Parameters

2.9. Orienting the Ligand

2.9.1. Sphere Matching

2.9.2. Critical Points

2.9.3. Chemical Matching

2.9.4. Macromolecular Docking

2.9.5. Input Parameters

2.10. Internal Energy Calculation

2.10.5. Input Parameters

2.11. Scoring

2.11.1. Bump Filter

2.11.2. Contact Score

2.11.3. Grid-Based Score

2.11.4. DOCK 3.5 Score

2.11.5. Continuous Score

2.11.6. Zou GB/SA Score

2.11.7. Hawkins GB/SA Score

2.11.8. AMBER Score

2.11.8.1. AMBER Score Binding Energy

2.11.8.2. AMBER Score Receptor Flexibility

2.11.8.3. AMBER Score Inputs

2.11.8.4. AMBER Score Outputs

2.11.8.5. AMBER Score in Practice

2.11.8.6. AMBER Score Parameters

2.11.9. Footprint Score

2.11.10. MultiGrid FPS Score

2.11.11. Pharmacophore Matching Similarity Score

2.11.12. Internal Energy Score

2.11.13. SASA Score

2.11.14. GIST Score

2.11.15. Descriptor Score

2.11.15.1. Tanimoto Score

2.11.15.2. Hungarian Matching Similarity Score

2.11.15.3. Volume Overlap Score

2.12. Minimization

2.13. Miscellaneous Parameters

2.14. Parameter Files

2.14.1. Atom Definition Rules

2.14.2. vdw.defn

2.14.3. chem.defn

2.14.4. chem_match.tbl

2.14.5. ph4.defn

2.14.6. flex.defn

2.14.7. flex_drive.tbl

2.15. Parallel Processing

3. Accessories

3.1. Grid

3.1.1. Overview

3.1.2. Bump Checking

3.1.3. Contact Scoring

3.1.4. Energy Scoring

3.2. Docktools

3.2.1. Chemgrid

3.2.2. Ligand Desolvation

3.2.3. Occupancy Desolvation

3.2.4. Grid Conversion

3.3. Nchemgrids

3.4. Sphgen

3.4.1. Overview

3.4.2. Critical Points

3.4.3. Chemical Matching

3.4.4. Output

3.5. Showbox

3.6. Showsphere

3.7. Sphere Selector

3.8. Antechamber

3.9. tLEaP

3.10. Amber Score Preparation Scripts

4. Molecular File Formats

4.1. Tripos MOL2 Format

4.2. PDB Format

4.3. BILD Format

5. References

6. Acknowledgments


Introduction

RETURN TO TABLE OF CONTENTS

1.1. General Overview

DOCK is molecular modeling program used to identify potential binding geometries and interactions of a molecule to a target. Specifically, docking is the identification of the low-energy binding modes of a small molecule, or ligand, within the active site of a macromolecule, or receptor, whose structure is known. A compound that interacts strongly with, or binds, a receptor associated with a disease may inhibit its function and thus act as a drug. Solving the docking problem computationally requires an accurate representation of the molecular energetics as well as an efficient algorithm to search the potential binding modes.

Historically, the DOCK algorithm addressed rigid body docking using a geometric matching algorithm to superimpose the ligand onto a negative image of the binding pocket. Important features that improved the algorithm's ability to find the lowest-energy binding mode, including force-field based scoring, on-the-fly optimization, an improved matching algorithm for rigid body docking and an algorithm for flexible ligand docking, have been added over the years. For more information on past versions of DOCK, click here.

With the release of DOCK 6, we continue to improve the algorithm's ability to predict ligand binding poses by adding new features like force-field scoring, enhanced solvation models, reference-based scoring options, and de novo design. For more information about the current release of DOCK, click here.

RETURN TO TABLE OF CONTENTS

1.2. What Can DOCK Do for You

We and others have used DOCK for the following applications:

  • predict binding modes of small molecule-protein complexes
  • search databases of ligands for compounds that mimic the inhibitory binding interactions of an experimentally validated inhibitor
  • search databases of ligands for compounds that bind a particular site of a specific protein
  • search databases of ligands for compounds that bind nucleic acid targets
  • examine possible binding orientations of protein-protein and protein-DNA complexes
  • help guide synthetic efforts by examining small molecules that are computationally derived
  • many more...

RETURN TO TABLE OF CONTENTS

1.3. Installation

DOCK is Unix based scientific software and follows a common installation recipe: download, unpack, configure, build, and test. The simple configuration scheme of DOCK is based on plain text files. Building and testing employ the make command. DOCK installation is so simple and transparent that users have a reasonable chance of correcting problems themselves.

Start with a plain serial installation. Follow the detailed steps (0. through 5.) enumerated below. The appropriate configuration option is likely gnu; see step 3. Subsequently, additional executables can be installed for parallel; see step 6. (Here is a quick start for an example gnu serial and parallel installation: cd install; ./configure gnu; make install; make dockclean; ./configure gnu parallel; setenv MPI_HOME /bla; make dock; make test;).

If problems occur then read the diagnostics carefully and apply the scientific method. Most initial installation problems are due to unavailable or fouled tools, especially compilers; verify that your compilers work before installing DOCK. To observe what's under the hood, view the DOCK configuration file (install/config.h) that is created by configure, especially its troubleshooting section that describes corrective measures for common difficulties. Execute make -n for a dry run. Platform idiosyncrasies can and should be corrected by editing the install/config.h, as opposed to editing the original source file, e.g., install/gnu. Consult the FAQ. Search the DOCK-Fans mailing list archive.

General use of DOCK does not require setting environment variables. However, we recommend the name DOCK_HOME for referencing DOCK6. During installation, paths to some critical locations are hard coded. In version 6.12, some auxiliary scripts were added in directory template_pipeline that do employ DOCK_HOME.

NOTE FOR WINDOWS USERS: DOCK and its accessories must be run using a Unix-like environment such as Cygwin ( http://www.cygwin.com/ ). We recommend a full Unix installation. In particular, when you install your emulator, make sure to also install compilers, Unix shells, and perl ( Devel for Cygwin ). All steps below should be performed using Cygwin or another Unix emulator for Windows. See also the DOCK wiki entry for Cygwin.

(0) Check for Bugfixes online.

(1) Unpack the distribution using the following command:

[user@dock ~] tar -zxvf dock.6.10.tar.gz

(2) Enter the installation directory:

[user@dock ~] cd dock6/install

(3) Configure the Makefile for the appropriate operating system:

[user@dock ~] ./configure [configuration file]

AUTHOR: Scott Brozell

USAGE: configure [-help] [configuration file]

OPTIONS: Notable ones are listed below; for a complete list see the configure -help output.
-help #emit the usage statement
configuration file #input file containing operating system appropriate variables

Configuration Files Target
gnu GNU compilers
gnu.acml recent GNU compilers and ACML
gnu.parallel GNU compilers with parallel processing capability
gnu.parallel.rdkit GNU compilers with parallel processing capability and RDKit capability
gnu.rdkit GNU compilers with RDKit capability
homebrew GNU compilers installed on macOS using the Homebrew package manager
homebrew.rdkit GNU compilers installed on macOS using the Homebrew package manager with RDKit capability
ibmaix IBM AIX and native compilers
intel Intel compilers
intel.mkl Intel compilers and MKL
intel.parallel Intel compilers with parallel processing capability
intel.intelmpi.parallel Intel compilers with parallel processing capability (specific to Intel MPI)
pgi PGI compilers
sgi SGI native compilers

DESCRIPTION:
Create the DOCK configuration file, config.h, by copying an existing configuration file that is selected using the arguments. When invoked without arguments, print this usage statement and if the configuration file exists then print its creation stamp. Some configuration files require that environment variables be defined; these requirements are listed in the files and emitted by configure. Note that as of version 6.6 gfortran is the default Fortran compiler in the gnu config files (replacing g77). In the unlikely case that another Fortran compiler is desired, simply hand edit install/config.h to use the alternative.

(4) Build the DOCK executables via the following command:

[user@dock ~] make all # builds all the DOCK programs

Finer control over which executables are built is available, but is rarely necessary, via one of the following commands:

[user@dock ~] make dock # builds only the dock program
[user@dock ~] make utils # builds only the accessory programs

(5) Test the built executables via this command:

[user@dock ~] make test

The test directory contains the DOCK quality control (QC) suite. It produces pass/fail results via fast regression tests. The suite should complete in less than ten minutes; five minutes is typical. Un-passed tests should be examined to determine their significance. The make test command from the install directory is a shortcut for this sequence: cd test; make test; make check. The make check command executed from the test directory emits all the differences uncovered during testing. The make clean command executed from the test directory removes all files produced during testing; this command is automatically executed by the main make test command above; however, to run tests from a subdirectory of the test directory, one should explicitly execute make clean.

NOTE: Some failures are not significant. For example, differences in the tails of floating point numbers may not be significant. The sources of such differences are frequently platform dependencies from computer hardware, operating systems, and compilers that impact arithmetic precision and random number generators. In addition, the reference outputs as of version 6.4 are from a 64 bit platform and as of version 6.10 use gfortran gcc version 7.5.0, and this can cause false positives on 32 bit platforms or with other compilers; in particular, differing numbers of Orientations or Conformations and different Contact or Grid scores. We are working on increasing the QC suite's resilience to these issues. For now, apply common sense and good judgment to determine the significance of a possible failure. Note that some number of failures is rarely an indication of real problems, but if almost every test fails then something is amiss.

Some features of DOCK (DOCK3.5 Score aka ChemGrid Score) require an electrostatic potential map which is usually generated by DelPhi. Testing of these features requires that the environment variable DELPHI_PATH be defined to the full path of the DelPhi executable. DelPhi is not distributed with DOCK; see also Wikipedia. Qnifft may now be used to calculate the electrostatic potential map (as is done with DOCK 3.7 and 3.8), instead of Delphi. Testing of these features with Qnifft requires that the environment variable QNIFFT_PATH be defined (and not DELPHI_PATH) to the full path of the Qnifft executable (this executable is available with DOCK 3.7).

DOCK with parallel processing capability will be automatically tested by the QC suite if dock6.mpi has been built. The same environment variable, MPI_HOME, needed for compilation should be identically defined for testing. Optionally, the environment variable DOCK_PROCESSES can be set to control how many MPI processes are tested. See step 6 below for details on building dock6.mpi.

(6) OPTIONAL: Additional dock executables.

(i) DOCK with parallel processing capability requires a Message Passing Interface (MPI) library. Because of the vagaries of MPI libraries, building parallel DOCK has more pitfalls than installing the serial version. The MPI library must be installed and running on the system if the parallel features of DOCK are to be used.
The DOCK installation mechanism supports all MPI implementations. The focus on MPICH2 and MPICH was eliminated in version 6.10. Once MPI is installed, define the environment variable MPI_HOME to the top level of the MPI directory. MPI_HOME will be referenced by all stages of the build procedure - from configuration through testing. See the Parallel DOCK section for execution information.

NOTE: The parallel configuration files should support any MPI installation even though they were initially tailored to MPICH. Linking problems, such as undefined references and cannot find libbla_bla, can occur due to idiosyncrasies in the MPI installation. One corrective approach is to use manual linking; edit your config.h to add to the LIBS definition the link flags (-L and -l) from the command: $MPI_HOME/mpicc -show; in general, the LIBS should contain those link flags in the same order.

(ii) As of version 6.11, DOCK can be compiled with RDKit. However, RDKit is not packaged with DOCK. It must be downloaded and built separately to eventually be compiled with DOCK. Importantly, for consistency with published work on DOCK6 Using RDKit, Matos et al. J. Chem. Inf. Model. 2023, we recommend installing RDKit Release 2019.09.1 which depends on Boost 1.71.0 and Eigen 3.3.9. If you already have this RDKit installed then you can build a DOCK executable with support for RDKit by first defining these environment variables (using Bourne shell syntax):

export BOOST="/path/to/boost/root/dir/"
export RDBASE="/path/to/rdkit/root/dir"
export LD_LIBRARY_PATH="${BOOST}/lib:${RDBASE}/lib:${LD_LIBRARY_PATH}"

and then running the following commands for a serial executable (or their equivalent for a parallel executable):

cd install; make distclean; ./configure gnu.rdkit; make dock; make test;.

If you don't have RDKit installed then there are several approaches: The simplest may be to use the automated recipe supplied by DOCK; see below. The other approach is to manually install RDKit yourself. This path has several options; for instructions please refer to this RDKit website, and consult the How is RDKit installed ? DOCK FAQ for a Python-less approach.

The DOCK automated recipe for installing RDKit requires that you have anaconda/miniconda installed. After the installation of anaconda/miniconda, you must export the root path of anaconda/miniconda as "CONDABASE" in your .bashrc or equivalent file, e.g.:

export CONDABASE="/path/to/miniconda3"

Then you can invoke DOCK's recipe for installing RDKit as shown below:

[user@dock ~] cd ./install
[user@dock ~] make rdkit # downloads RDKit and its dependencies, then compiles. Please follow the instructions shown in the screen.

If you need to clean out the RDKit compiled contents, please execute the command below. Once you execute that command then you will not be able to compile DOCK with RDKit unless you rebuild RDKit:

[user@dock ~] make rdkitclean # to clean out everything pertaining to RDKit.

(7) Build the DOCK executables via Docker

In the 6.12 DOCK6 release, DOCK6 can now be compiled in Docker images (no relation to DOCK6). To start, you must have the Docker engine installed your local computer. The Docker engine is necessary to generate the images from Docker files, then to run to DOCK6 program and tools in a Docker container.

Instructions on how to Dockerize

  1. cd in install/docker
  2. ./dockerize Dockerfile.gnu_w_parallel. This will start dockerizing the dock6 build.
  3. Then the dock6-suite.docker "binary" will be generated in the bin folder. Please be patient, this will take awhile.

Example Usage

Non-interactive mode:

dock6-suite.docker -b "dock6 -i dn.in -o dn.out"

dock6-suite.docker -b "grid -i grid.in -o grid.out"

dock6-suite.docker -b "dock6 -i dn.in -o dn.out" -v /PATH/TO/FILE1 -v ../../PATH/TO/FILE2 -v /PATH/TO/DIR

dock6-suite.docker -b "mpirun -n 4 dock6.mpi -i dn.in -o dn.out"

Interactive mode:

dock6-suite.docker

dock6-suite.docker -v /PATH/TO/FILE1 -v ../../PATH/TO/FILE2 -v /PATH/TO/DIR

Usage flags

Usage: dock6-suite.docker [ -h help ] [ -b BINARY CALL WITH ARGUMENTS ] [ -v mounting files and folders ]
Interactive Mode Usage: dock6-suite.docker [ -h help ] [ -v mounting files and folders ]

Available binary calls

am1bcc
amberize_complex
amberize_ligand
amberize_receptor
antechamber
atomtype
bondtype
chemgrid
dock6
dock6.mpi
espgen
grid
grid-convert
grid-convrds
make_phimap
mopac
nchemgrid_GB
nchemgrid_SA
parmcal
parmchk
prepgen
resp
respgen
sevsolv
showbox
showsphere
solvgrid
solvmap
sphere_selector
sphgen
teLeap
tleap
mpirun

Caveats

  1. When you use the -v flag, you have to repeat this flag for every file you want to mount. If you want to mount multiple files in folder, you can target the folder path.

  2. By default, the path you call dock6-suite.docker at will be mounted to the container.

  3. For non-interactive mode, make sure that input parameters that are referencing input files is just the name of the file. This is because the file is mounted to the path /app/workspace in the Docker container. Or you can prepend all files you mounted with /app/workspace

  4. If you like to use logical paths, you can use interactive mode to mount folders and files. Then, you can start making your own dock6 input file with logical paths.

  5. In non-interactive mode, you MUST enclose all binary calls within "".

  6. Unfortunately, right now calling dock6-suite.docker -b "dock6 -i dock6.in", won't allow you to input parameters manually one by one. The dock.in file must be filled out first. If you want to have this behavior you must use interactive mode.

  7. The wrapper functions that hide away the Docker calls are assuming that your host environment is in a linux based system. This is because it requires #!/bin/bash in your environment.

RETURN TO TABLE OF CONTENTS

1.4. What's New in DOCK 6

Version 6.0

The new features of DOCK 6 include: additional scoring options during minimization; DOCK 3.5 scoring-including Delphi electrostatics, ligand conformational entropy corrections, ligand desolvation, receptor desolvation; Hawkins-Cramer-Truhlar GB/SA solvation scoring with optional salt screening; PB/SA solvation scoring; AMBER scoring-including receptor flexibility; the full AMBER molecular mechanics scoring function with implicit solvent; conjugate gradient minimization and molecular dynamics simulation capabilities.

Version 6.1

The newly added features for this incremental release of DOCK 6 include a new pruning algorithm during the anchor-and-grow algorithm, a distance-based movable region and a mildly performance optimized nothing movable region for AMBER score, cleaner output and more complete output files for AMBER score, the ability to perform ranking and/or clustering on ligands between primary and secondary scoring, and more dynamic output when secondary scoring is employed.

Version 6.2

The newly added features for this incremental release of DOCK 6 include greater control over the output of conformations, improved memory efficiency for grid reading, a distance dependent dielectric control for continuous score, and for AMBER score better error reporting and robustness of the preparation scripts, a metal ions library, a cofactor library, a hook for a user library, support for RNA receptors, a minimization convergence criterion control, and the ability to skip inadequately prepped ligands.

Version 6.3

The newly added features for this incremental release of DOCK 6 include more robust input file processing, support for OpenEye Toolkits version 1.7.0 for PB/SA score, and for AMBER score improved support for RNA receptors, the option to use the existing ligand charges during preparation, and better error reporting and robustness of the preparation scripts. In particular, for AMBER scoring of RNA receptors, the distance movable region can be applied with explicit waters and the preparation can neutralize to a total charge of zero and can solvate with water. See Graves et al., 2008

Version 6.4

The newly added features for this incremental release of DOCK 6 include: resolving ligand internal clashes of flexible ligands (more than seven rotatable bonds) by inclusion of an internal energy function at all stages of growth; an ability to output growth trees as multi mol2 files; printing of growth statistics in the dock output file; restrained minimization with an RMSD tether, a torsion pre-minimizer.

Version 6.5

The newly added features for this incremental release of DOCK 6 include: Now an anchor can be chosen by specifying an atom in that fragment. In addition, the number of anchors used can be limited during multi-anchor docking. The new scoring function called footprint score(the old descriptor score) has been introduced, which includes a hydrogen bond term and footprint similarity scoring. See Balius et al. PB/SA score has undergone some generalizations and efficiency improvements that make docking, as opposed to rescoring, more tractable for nontrivial systems. For AMBER score the cofactors library, leaprc.dock.cofactors, and the ions library, leaprc.dock.ions, have grown substantially.

Version 6.6

The newly added features for this incremental release of DOCK 6 include: A new grid-based footprint scoring function, a SASA-based scoring function, calculation of RMSD using the Hungarian Algorithm, and inclusion of orienting statistics.

Version 6.7

This incremental release of DOCK 6 includes updates to the default values for several input parameters based mainly on a performance assessment by Allen et al. using large data sets and employing multiple metrics.

Version 6.8

The newly added features for this incremental release of DOCK 6 include: A new pharmacophore-based similarity scoring function by Jiang et al., a Tanimoto scoring function, a Hungarian Matching Similarity scoring function, a volume-based similarity scoring function, and a hybrid "descriptor" score to combine component scoring functions in DOCK.

Version 6.9

New features include an enhanced chemical searching method termed: de novo DOCK (DOCK_DN), which is a de novo design method that can be used to construct molecules from scratch or to modify existing molecular frameworks (see Allen et al.). In addition, a new fragment library generator function was added to the docking protocol, and is accessible through flexible ligand docking.

Version 6.10

New features include: an enhanced chemical searching methods termed: molecular evolution DOCK (DOCK_GA), which is an evolution-based method for ligand construction that employs principles of breeding and mutations (see Prentis et al.), a new fragment library generation function was added to the docking protocol, a simplex minimization step ramping functionality for enhanced speed during docking, a new scoring function (internal energy score) that allows for generation and scoring of molecules without a protein, and a molecular weight smoothing function for de novo design that will allow a softer curve of weight distributions in the final ensemble. Secondary score, introduced in 6.1, has been fully removed in this version.

Version 6.11

New features include the integration of the open-source toolkit RDKit with the DOCK6 codebase, allowing users to calculate important drug-based descriptors for molecules. On top of the ability to calculate these descriptors, DOCK6.11 include an enhanced version of DOCK_DN, termed "descriptor-driven de novo design" (DOCK_D3N). This method allows users to specify descriptors (and their target ranges) to bias the on-the-fly molecular construction. This powerful and flexible routine tailors ligand growth towards desirable regions of chemical space. Further, RDKit is utilized in a wide array of DOCK features to calculate descriptors for resulting molecules. (DOCK_GA, Database Filtering, Rigid/Flexible Docking).

Version 6.12

New features include: An implementation of Hierarchical DataBase (HDB) search method to enable large scale docking. HDB search allows us to dock db2 files as is done with DOCK3.7 and 3.8. An update to DOCK3.5 Score (also called ChemGrid_Score) to be compatible with DOCK3.7 and 3.8 scoring. This includes using QNIFFT instead of Delphi. A new scoring function called GIST_Score, (with three scoring options) which accounts for receptor desolvation. Both GIST and DOCK3.5 Scoring functions are now available in descriptor_score, so they can be combined with other methods within descriptor score. (Balius, J.Comput. Chem. 2024). A covalent docking algorithm called attach-and-grow has been added.

DOCK_DN has been rewritten to allow for a "parallel" pruning methodology between each layer, greatly increasing construction efficiency. A final Tanimoto comparison step has been added when molecules are written to file as well, effectively removing duplicate molecules from a given DN run. The output of DOCK_DN has been overhauled to include significantly more information about each step of growth, providing an easy-to-read description of each run. The memory footprint of DN runs has been greatly improved, with pruned molecules being written out to prune_dump files on-the-fly rather than at the end of each layer, or discarded once pruned. An option to Grid Score has been added to instead utilize Ligand Efficiency (Grid Score/# active heavy atoms) as the scoring function during any given run.

DOCK6 can now be containerizable by using Docker. This will help with installing programs that are sometimes difficult to compile. The wrapper funcitons were created to ease the process of generating Docker images. Further, the user can call the dock6 binary and tools in interactive and non-interactive mode. Note that this feature can only be used if your local environment has the bash scripting environment and the Docker engine. Look at the installation section for more information.

RETURN TO TABLE OF CONTENTS

1.5. Overview of the DOCK Suite of Programs

1.5.1. Programs

The relationship between the main programs in the dock suite is depicted in Figure 1. These routines will be described below.

Main programs in DOCK suite

The program sphgen identifies the active site, and other sites of interest, and generates the sphere centers that fill the site. It has been described in the original paper (Kuntz et al. J. Mol. Biol. 1982). The program grid generates the scoring grids (Shoichet et al. J. Comp. Chem. 1992 and Meng et al. J. Comp. Chem. 1992). Within the DOCK suite of programs, the program DOCK matches spheres (generated by sphgen) with ligand atoms and uses scoring grids (from grid) to evaluate ligand orientations (Kuntz et al. J. Mol. Biol. 1982 and Shoichet et al. J. Comp. Chem. 1992). Program DOCK also minimizes energy based scores (Meng et al. Proteins 1993).

1.5.2. General Concepts

The DOCK suite of programs is designed to find favorable orientations of a ligand in a “receptor.” It can be subdivided into

(i) those programs related directly to docking of ligands and
(ii) accessory programs.

We limit the discussion in this section to only those programs and methods related to docking a ligand in a receptor. A typical receptor might be an enzyme with a well-defined active site, though any macromolecule may be used (e.g. a structural protein, a nucleic acid strand, a “true” receptor). We’ll use an enzyme as an example in the rest of this discussion.

The starting point of all docking calculations is generally the crystal or NMR structure of an enzyme from an enzyme-ligand complex. The ligand structure may be taken from the crystal structure of the enzyme-ligand complex or from a database of compounds, such as the ZINC database (Irwin, et. al. J. Chem. Inf. Model. 2005). The primary consideration in the design of our docking programs has been to develop methods which are both rapid and reasonably accurate. These programs can be separated functionally into roughly two parts, each somewhat independent of the other:

(i) Routines which determine the orientation of a ligand relative to the receptor and
(ii) Routines which evaluate (score) a ligand orientation.

There is a lot of flexibility. You can generate orientations outside of DOCK and score them with the DOCK evaluation functions. Alternatively, you can develop your own scoring routines to replace the functions supplied with DOCK.

The ligand orientation in a receptor site is broken down into a series of steps, in different programs. First, a potential site of interest on the receptor is identified. (Often, the active site is the site of interest and is known a priori.) Within this site, points are identified where ligand atoms may be located. A routine from the DOCK suite of programs identifies these points, called sphere centers, by generating a set of overlapping spheres which fill the site. Rather than using DOCK to generate these sphere centers, important positions within the active site may be identified by some other mechanism and used by DOCK as sphere centers. For example, the positions of atoms from the bound ligand may be used as these sphere centers. Or, a grid may be generated within the site and each grid point may be considered as a sphere center. Our sphere centers, however, attempt to capture shape characteristics of the active site (or site of interest) with a minimum number of points and without the bias of previously known ligand binding modes.

To orient a ligand within the active site, some of the sphere centers are “matched” with ligand atoms. That is, a sphere center is “paired” with an ligand atom. Many sets of these atom-sphere pairs are generated, each set containing only a small number of sphere-atom pairs. In order to limit the number of possible sets of atom-sphere pairs, a longest distance heuristic is used; (long) inter-sphere distances are roughly equal to the corresponding (long) inter-atomic ligand distances. A set of atom-sphere pairs is used to calculate an orientation of the ligand within the site of interest. The set of sphere-atom pairs which are used to generate an orientation is often referred to as a match. The translation vector and rotation matrix which minimizes the rmsd of (transformed) ligand atoms and matching sphere centers of the sphere-atom set are calculated and used to orient the entire ligand within the active site.

The orientation of the ligand is evaluated with a shape scoring function and/or a function approximating the ligand-enzyme binding energy. Most evaluations are done on (scoring) grids in order to minimize the overall computational time. At each grid point, the enzyme contributions to the score are stored. That is, receptor contributions to the score, potentially repetitive and time consuming, are calculated only once; the appropriate terms are then simply fetched from memory.

The ligand-enzyme binding energy is taken to be approximately the sum of the van der Waals attractive, van der Waals dispersive, and Coulombic electrostatic energies. Approximations are made to the usual molecular mechanics attractive and dispersive terms for use on a grid. To generate the energy score, the ligand atom terms are combined with the receptor terms from the nearest grid point, or combined with receptor terms from a “virtual” grid point with interpolated receptor values. The score is the sum of over all ligand atoms for these combined terms. In this case, the energy score is determined by both ligand atom types and ligand atom positions on the energy grids.

As a final step, in the energy scoring scheme, the orientation of the ligand may be varied slightly to minimize the energy score. That is, after the initial orientation and evaluation (scoring) of the ligand, a simplex minimization is used to locate the nearest local energy minimum. The sphere centers themselves are simply approximations to possible atom locations; the orientations generated by the sphere-atom pairing, although reasonable, may not be minimal in energy.

1.5.3. Specific Concepts

(A) Sphere Centers

Spheres are generated to fill the target site. The sphere centers are putative ligand atom positions. Their use is an attempt to limit the enormous number of possible orientations within the active site. Like ligand atoms, these spheres touch the surface of the molecule and do not intersect the molecule. The spheres are allowed to intersect other spheres; i.e., they have volumes which overlap. Each sphere is represented by the coordinates of its center and its radius. Only the coordinates of the sphere centers are used to orient ligands within the active site (see above). Sphere radii are used in clustering.

The number of orientations of the ligand in free space is vast. The number of orientations possible from all sets of sphere-atom pairings is smaller but still large and cannot be generated and evaluated (scored) in a reasonable length of time. Consequently, various filters are used to eliminate from consideration, before evaluation, sets of sphere-atoms pairs, which will generate poorly scoring orientations. That is, only a small subset of the number of possible ligand orientations are actually generated and scored. The distance tolerance is one filter. Sphere “coloring” and identification of “critical” spheres are other filters.

Sphere-sphere distances are compared to atom-atom distances. Sets of sphere-atom pairs are generated in the following manner: sphere i is paired with atom I if and only if for every sphere j in the set and for every atom J in the set,

where dij is the distance between sphere i and sphere j, dIJ is the distance between atom I and atom J, and epsilon is a somewhat small user-defined value.

(B) Chemical Matching

DOCK spheres are generated without regard to the chemical properties of the nearby receptor atoms. Sphere “chemical matching” or “coloring” associates a chemical property to spheres and a sphere of one “color” can only be matched with a ligand atom of complementary color. These chemical properties may be things such as “hydrogen-bond donor,” “hydrogen-bond acceptor,” “hydrophobe,” “electro-positive,” “electro-negative,” “neutral,” etc. Neither the colors themselves, nor the complementarity of the colors, are determined by the DOCK suite of programs; DOCK simply uses these labels. With the inclusion of coloring, only ligand atoms with the appropriate chemical properties are matched to the complementary colored spheres. It is probably more likely, then, that the orientation generated will produce a favorable score. Conversely, by excluding colored spheres from pairing with certain ligand atoms, the number of (probably) unfavorable orientations which are generated and evaluated can be reduced. Note that requiring complementarity in matching does not mean that all ligand atoms will lie in chemically complementary regions of the enzyme. Rather, only those ligand atoms, when paired with a colored sphere which is part of the sphere-atom match, will be guaranteed to be in the chemically complementary region of the enzyme (provided chirality of the spheres is the same as that of the matching ligand atoms).

(C) Critical Points

The "critical point" filter requires that certain spheres be part of the set of sphere-atom pairs used to orient the ligand (DesJarlais et al. J. Comput-Aided Molec. Design. 1994). Designating spheres as critical points forces the ligand to have at least one atom in that area of the enzyme, where that sphere is located. This filter may be useful, for example, when it is known that a ligand must occupy a particular area of an active site. This filter removes from consideration any orientation that does not guarantee at least one ligand atom in critical areas of the enzyme (provided chirality of the spheres is the same as that of the matching ligand atom).

(D) Bump Filter

After a ligand is oriented within the active site, the orientation is evaluated. In an attempt to reduce the total computational time, after the ligand is oriented in the site, it is possible to first check whether or not ligand atoms occupy space already occupied by the receptor. If too many of such “bumps” are found, then the ligand is likely to intersect the receptor even after minimization; consequently, the ligand orientation is discarded before evaluation.

1.5.4. Units

The units of the DOCK suite of programs are lengths in angstroms, masses in atomic mass units, charges in electron charges units, and energies in kcal/mol. For Amber score internally and on input of charges from a prmtop file the charges are scaled by 18.2223.

RETURN TO TABLE OF CONTENTS


DOCK

RETURN TO TABLE OF CONTENTS

2.1. Overview

This section is intended as a reference manual for the features of the DOCK Suite of Programs. It is intended to give an overview of the ideas which form the basis of the DOCK suite of programs and to detail the available user parameters. It is not intended to be a substitute for all the papers written on DOCK.

In general, this document is geared towards the experienced user and introduces new features and concepts in version 6. If you are new to DOCK, we strongly recommend you look at the tutorials on the DOCK web site at http://dock.compbio.ucsf.edu/DOCK_6/index.htm, which go into much greater practical detail.

RETURN TO TABLE OF CONTENTS

2.2. History

Version 1.0/1.1

Authors: Robert Sheridan, Renee DesJarlais, Irwin Kuntz

The program DOCK is an automatic procedure for docking a molecule into a receptor site. The receptor site is characterized by centers, which may come from sphgen or any other source. The molecule being docked is characterized by ligand centers, which may be its non-hydrogen atoms or volume-filling spheres calculated in sphgen. The ligand centers and receptor centers are matched based on comparison of ligand-center/ligand-center and receptor-center/receptor-center distances. Sets of ligand centers match sets of receptor centers if all the internal distances match, within a value of distance_tolerance. Ligand-receptor pairs are added to the set until at least nodes_minimum pairs have been found. At least three pairs must be found to uniquely determine a rotation/translation matrix that will orient the ligand in the receptor site. A least-squares fitting procedure is used (Ferro et al. Act. Cryst. A. 1977). Once an orientation has been found, it is evaluated by any of several scoring functions. DOCK may be used to explore the binding modes of an individual molecule, or be used to screen a database of molecules to identify potential ligands.

Version 2.0

Authors: Brian Shoichet, Dale Bodian, Irwin Kuntz

DOCK version 2.0 was written to give the user greater control over the thoroughness of the matching procedure, and thus over the number of orientations found and the CPU time required (Shoichet et al. J. Comp. Chem. 1992). In addition, certain algorithmic shortcomings of earlier versions were overcome. Versions 2.0 and higher are particularly useful for macromolecular docking (Shoichet et al. J. Mol. Biol. 1991) and applications which demand detailed exploration of ligand binding modes. In these cases, users are encouraged to run CLUSTER in conjunction with sphgen and DOCK.

To allow for greater control over searches of orientation space, the ligand and receptor centers are pre-organized according to their internal distances. Starting with any given center, all the other centers are presorted into “bins” based on their distance to the first center. All centers are tried in turn as “first” positions, and all the points in a bin which has been chosen for matching are tried sequentially. Ligand and receptor bins are chosen for matching when they have the same distance limits from their respective “first” points. The number of centers in each bin determines how many sets of points in the receptor and the ligand will ultimately be compared. In general, the wider the bins, the greater the number of orientations generated. Thus, the thoroughness of the search is under user control.

Version 3.0

Authors: Elaine Meng, Brian Shoichet, Irwin Kuntz

Version 3.0 retained the matching features of version 2.0, and introduced options for scoring (Meng et al. J. Comp. Chem., 1992). Besides the simple contact scores mentioned above, one can also obtain molecular mechanics interaction energies using grid files calculated by CHEMGRID (which is now superseded by GRID in version 4.0). More information about the ligand and receptor molecules is required to perform these higher-level kinds of scoring. Point charges on the receptor and ligand atoms are needed for electrostatic scoring, and atom-type information is needed for the van der Waals portion of the force field score. Input formats (some of them new in version 3.5) are discussed in various parts of the documentation; one example of a “complete format” (including point charges and atom type information) is SYBYL MOL2 format. Parameterization of the receptor is discussed in the documentation for CHEMGRID. In DOCK, ligand parameters are read in along with the coordinates; input formats are described below. Currently, the options are: contact scoring only, contact scoring plus Delphi electrostatic scoring, and contact scoring plus force field scoring. Atom-type information and point charges are not required for contact scoring only.

Version 3.5

Authors: Mike Connolly, Daniel Gschwend, Andy Good, Connie Oshiro, Irwin Kuntz

Version 3.5 added several features: score optimization, degeneracy checking, chemical matching and critical clustering.

Version 4.0

Authors: Todd Ewing, Irwin Kuntz

Version 4.0 was a major rewrite and update of DOCK (Ewing et al. 2001 ). A new matching engine was developed which is more robust, efficient, and easier to use (Ewing and Kuntz. J. Comput. Chem. 1997). Orientational sampling can now be controlled directly by specifying the number of desired orientations. Additional features include chemical scoring, chemical screening, and ligand flexibility.

Version 5.0-5.4

Authors: Demetri Moustakas, P. Therese Lang, Scott Pegg, Scott Brozell, Irwin Kuntz

Version 5 was rewritten in C++ in a modular format, which allows for easy implementation of new scoring functions, sampling methods and analysis tools (Moustakas et al., 2006). Additional new features include MPI parallelization, exhaustive orientation searching, improved conformation searching, GB/SA solvation scoring, and post-screening pose clustering. (Zou et al. J. Am. Chem. Soc., 1999)

Version 6.0-6.11

Authors: P. Therese Lang, Demetri Moustakas, Scott Brozell, Noel Carrascal, Sudipto Mukherjee, Lauren Prentis, Courtney Singleton, Yuchen Zhou, Brian Fochtman, Trent Balius, T. Dwight McGee Jr., William Joseph Allen, John Bickel, Guilherme D. R. Matos, Steven Pak, Christopher Corbo, Brock Boysan, Patrick Holden, Scott Pegg, Kaushik Raha, Devleena Shivakumar, Robert Rizzo, David Case, Brian Shoichet, Irwin Kuntz

DOCK 6 is an extension of the DOCK 5 code base. It includes the implementation of Hawkins-Cramer-Truhlar GB/SA solvation scoring with salt screening and PB/SA solvation scoring through OpenEye's Zap Library. Additional flexibility has been added to scoring options during minimization. The new code also incorporates DOCK version 3.5.54 scoring features like Delphi electrostatics, ligand desolvation, and receptor desolvation. Finally, DOCK 6 introduces new code that allows access to the NAB library of functions such as receptor flexibility, the full AMBER molecular mechanics scoring function with implicit solvent, conjugate gradient minimization, and molecular dynamics simulation capabilities. The most recent version of DOCK 6 includes novel searching methods (DOCK_DN, DOCK_GA) and the ability to create fragment libraries. DOCK_D3N depends on an enhanced version of DOCK by integrating RDKit. See Lang et al. RNA, 2009, Brozell et al., 2012, Allen et al., 2015, Allen et al., 2017, and Prentis et al., 2022.

RETURN TO TABLE OF CONTENTS

2.3. Command-line Arguments

DOCK must be run from the command line in a standard unix shell. It reads an input parameter file containing field/value pairs:

USAGE: dock6 -i dock.in [-o dock.out] [-v]

DESCRIPTION:
DOCK may be executed in either interactive or batch mode, depending on whether the output is written to a file. In interactive mode, the user is requested only for parameters relevant to the particular run and default values are provided. This mode is recommended for the initial construction of the input file and for short calculations. In batch mode, input parameters are read in from the input file and all output is written to the output file. This mode is recommended for long calculations once an input file has been generated interactively.

OPTIONS
-i dock.in #input file containing user-defined parameters
-help
#emit the usage statement.
-v #verbosity flag that prints additional information and warnings for scoring functions
-o dock.out #output file containing the parameters used in the calculation, summary information for each molecule docked, and all warning messages

Interactive mode

USAGE: dock6 -i dock.in

DESCRIPTION:
When launched this way, DOCK will extract all relevant parameters from dock.in (or any file supplied by the user). If additional parameters are needed (or if the dock.infile is non-existent or empty), DOCK will request them one at a time from the user. Reasonable default values are presented. Any parameters supplied by the user will be automatically appended to the dock.in file. If the user would like to change any previously entered values, the user can edit the dock.in file using a text editor.

Batch mode

USAGE: dock6 -i dock.in -o dock.out

DESCRIPTION:
When launched in this way, DOCK will run in batch mode, extracting all relevant parameters from dock.in (or any file supplied by the user) and will write out all output to dock.out (or any file supplied by the user). If any parameters are missing or incorrect, then execution will halt and an appropriate error message will be reported in dock.out.

Parallel DOCK

USAGE: mpirun [-machinefile machfile] [-np #_of_proc] dock6.mpi -i dock.in -o dock.out [-v]

DESCRIPTION:
If DOCK has been built for parallel processing (see Installation) then DOCK can be run in parallel. Parallelization employs a single master processor with the remaining processors acting as slaves. If np = 1, the code defaults to non-MPI behavior. There is a minimal difference in performance between 1 and 2 processors. Improved performance is only evident with more than 2 processors. In some MPIs dock6.mpi should be launched with mpiexec.

ADDITIONAL OPTIONS:
-machinefile #simple text file containing the names of the computers (nodes) to be used
-np #
specifies the number of processors which typically is the same as the number of lines in the machinefile
For additional details on your MPI installation, read the man page:
man mpirun

RETURN TO TABLE OF CONTENTS

2.4. The Parameter Parser

In Interactive Mode, dock will dynamically ask the user to enter the appropriate user parameters. The generic format for the questions is:

parameter_name [default value] (legal values):

The parameter parser requires that the values entered for a parameter exactly match one of the legal values. For example:

Example A: program_location [Hello_World!] ():

Example B: #_red_balloons [99] ():

Example C: glass_status [half_full] (half_full half_empty):

In Example A, the parameter "program_location" can be assigned any string value, and in Example B, the parameter "#_red_balloons" can be assigned any integer value. However, in Example C, the parameter value "glass_status" can only be assigned the strings "half_full" or "half_empty". If no parameter are assigned by the user, the default value--in brackets--will be used.

In Batch Mode, all parameters in the dock.in file, must be:

parameter_name value

Note that the parameter_name and corresponding value must be separated by white space, namely, blanks or tabs.

RETURN TO TABLE OF CONTENTS

2.5. Sampling Methods

Before you can dock a ligand, you will need atom types and charges for every atom in the ligand. Currently, DOCK reads the Tripos MOL2 format. For a single ligand (or several ligands), you can use Chimera in combination with antechamber to prepare a MOL2 file for the ligand (see Structure Preparation Tutorial) or various other visualization packages. During the docking procedure, ligands are read in from a single MOL2 or multi-MOL2 file. Atom and bond types are assigned using the DOCK 4 atom/bond typing parameter files.


For hierarchical database search, dock will read in db2 files which efficiently store multiple ligand conformations.


Many new sampling methods have been fully integrated into DOCK6, where users will be able to access powerful virtual screening capabilities, from scratch de novo growth (DOCK_DN), and evolution-based searching (DOCK_GA). We have added hierarchical database search (HDB) which performs hierarchical traversal through precomputed ligand conformations to enable large-scale docking. (Balius, J.Comput. Chem. 2024) We also now have a covalent docking method called attach-and-grow (this method is still in development).

Sampling Method Input Parameter

Parameter Description Default Value
conformer_search_type Choose the type of docking calculation: Rigid body docking (rigid), Flexible ligand docking (flex), de novo ligand design (denovo), Genetic Algorithm ligand construction (genetic), hierarchical database search (HDB), attach-and-grow (covalent) flex

RETURN TO TABLE OF CONTENTS

2.5.1. Rigid and Flexible Ligand Docking

The internal degrees of freedom of the ligand can be sampled with the anchor-and-grow incremental construction approach. This conformational search algorithm has been validated for binding mode prediction using a large dataset derived from the protein data bank of 1043 protein-ligand complexes (Allen et al., 2015).

2.5.1.1. Anchor-and-Grow

The process of docking a molecule using the anchor-first strategy is shown in the Workflow for Anchor-and-Grow Algorithm Ewing et al. 2001 . First, the largest rigid substructure of the ligand (anchor) is identified (see Identification of Rigid Segments) and rigidly oriented in the active site (orientation) by matching the center of the heavy atoms to that of the receptor spheres (see Orienting the Ligand). The anchor orientations are evaluated and optimized using the scoring function (see Scoring) and the energy minimizer (see Minimization). In general, the orientations are then ranked according to their score, spatially clustered by heavy atom root mean squared deviation (RMSD), and pruned (see Pruning the Conformation Search Tree). Next, the remaining flexible portion of the ligand (see Identification of Flexible Layers) is built onto the best anchor orientations within the context of the receptor (grow). It is assumed that the shape of the binding site will help restrict the sampling of ligand conformations to those that are most relevant for the receptor geometry.



Workflow for Anchor-and-Grow Algorithm

Starting with version 6.8, ligand conformational searching is enabled when the conformer_search_type input parameter is set to flex. In versions 6.7 and earlier of DOCK, the corresponding input parameter was flexible_ligand [yes] (yes no). Only the torsion angles are modified, not the bond lengths or angles. Therefore, the input geometry of the molecule needs to be of good quality. A structure generated by ZINC15 is sufficient.

The torsion angle positions reside in an editable file (see flex_drive.tbl on page 111) which is identified with the flex_drive_file parameter. Internal clashes are detected during the torsion drive search based on the clash_overlap or internal_energy parameters, which are independent of scoring function.

RETURN TO TABLE OF CONTENTS

2.5.1.2. Identification of Rigid Segments

A flexible molecule is treated as a collection of rigid segments. Each segment contains the largest set of adjacent atoms separated by non-rotatable bonds. Segments are separated by rotatable bonds.

The first step in segmentation is ring identification. All bonds within molecular rings are treated as rigid. This classification scheme is a first-order approximation of molecular flexibility, since some amount of flexibility can exist in non-aromatic rings. To treat such phenomenon as sugar puckering and chair-boat hexane conformations, the user will need to supply each ring conformation as a separate input molecule. Additional bonds may be specified as rigid by the user (see Manual Specification of Non-rotatable Bonds).

Identification of Rigid Anchor and Flexible Bonds

The second step is flexible bond identification. Each flexible bond is associated with a label defined in an editable file (see flex.defn). The parameter file is identified with the flex_definition_file parameter. Each label in the file contains a definition based on the atom types (and chemical environment) of the bonded atoms. Each label is also flagged as minimizable. Typically, bonds with some degree of double bond character are excluded from minimization so that planarity is preserved. Each label is also associated with a set of preferred torsion positions. The location of each flexible bond is used to partition the molecule into rigid segments. A segment is the largest local set of atoms that contains only non-flexible bonds.

RETURN TO TABLE OF CONTENTS

2.5.1.3. Manual Specification of Non-rotatable Bonds

Currently this functionality is not available!

The user can potentially specify additional bonds to be non-rotatable, to supplement the ring bonds automatically identified by DOCK. Such a technique could be used to preserve the conformation of part of a molecule and isolate it from the conformation search. Non-rotatable bonds are identified in the Tripos MOL2 format file containing the molecule. The bonds are designated as members of a STATIC BOND SET named RIGID (see Tripos MOL2 Format).

Creation of the RIGID set can be done within Chimera. With the molecule of interest loaded into Chimera, select the portion of the ligand you would like to remain rigid. Then select on File > Save MOL2. Make sure the "Write current selection to @ SETS section of file" is checked and save the file.

Alternatively, the RIGID set can be entered into the MOL2 file by hand. To do this, go to the end of the MOL2 file. If no sets currently exist, then add a SET identifier on a new line. It should contain the text "@<TRIPOS>SET". On a new line add the text "RIGID STATIC BONDS <user> **** Comment". On the next line enter the number of bonds that will be included in the set, followed by the numerical identifier of each bond in the set.

RETURN TO TABLE OF CONTENTS

2.5.1.4. Identification of Flexible Layers

Anchor Selection

An anchor segment is normally selected from the rigid segments in an automatic fashion (see Manual Specification of Non-rotatable Bonds to override this behavior). The molecule is divided into segments that overlap at each rotatable bond. The segment with the largest number of heavy atoms is selected as the first anchor, number of attachment points are also considered. All segments with more heavy atoms than min_anchor_size are tried separately as anchors. The number of anchors can be limited by setting the limit_max_anchors flag to "yes"; max_anchor_num is used to specify the maximum number of anchors to be used (anchors are ordered by heavy atoms and attachment points):

min_anchor_size 5
limit_max_anchors yes
max_anchor_num 5


At most 5 anchors are used and all anchors have at least 5 heavy atoms.

To use a single specific anchor (e.g scaffold with known binding pose), specify an atom name and its corresponding atom number in the chosen fragment (e.g. if atom number 10 is C16):

user_specified_anchor yes
atom_in_anchor C16,10


Identification of Overlapping Segments

When an anchor has been selected, then the molecule is redivided into non-overlapping segments, which are then arranged concentrically about the anchor segment. Segments are reattached to the anchor according to the innermost layer first and within a layer to the largest segment first.

Layered Non-Overlapping Segments

The anchor is processed separately (either oriented, scored, and/or minimized). The remaining segments are subsequently re-attached during the conformation search. The interaction energy between the receptor and the ligand can be optimized with a simplex minimizer (see Minimization).

RETURN TO TABLE OF CONTENTS

2.5.1.5. Pruning the Conformation Search Tree

Starting with version 6.1, there are two methods for pruning. The first method is the one that existed in earlier versions; it is the default and corresponds to input parameter pruning_use_clustering = yes. In this method pruning attempts to retain the best, most diverse configurations using a top-first pruning algorithm, which proceeds as follows. The configurations are ranked according to score. The top-ranked configuration is set aside and used as a reference configuration for the first round of pruning. All remaining configurations are considered candidates for removal. A root-mean-squared distance (RMSD) between each candidate and the reference configuration is computed. Each candidate is then evaluated for removal based on its rank and RMSD using the inequality:

If the factor is greater than number_confs_for_next_growth, as appropriate, the candidate is removed. Based on this factor, a configuration with rank 2 and 0.2 angstroms RMSD is comparable to a configuration with rank 20 and 2.0 angstroms RMSD. The next best scoring configuration which survives the first pass of removal is then set aside and used as a reference configuration for the second round of pruning, and so on. This pruning method biases its search time towards molecules that sample a more diverse set of binding modes. As the values of num_anchors_orients_for_growth and number_confs_for_next_growth are increased, the anchor-first method approaches an exhaustive search.

In the second method, the goal is to bias the sampling towards conformations that are close to the correct binding mode (as optimized using a test set of experimentally solved structures). Much as the method above, the algorithm ranks the generated poses and conformations. Then, all poses that violate a user-defined score cutoff are removed. To facilitate the speed of the calculation, the remaining list is additionally pared back to a user-defined length. In this method, the sampling is driven towards molecules that sample closer to the experimentally determined binding site, and the result is a significantly less diverse set of final poses.

RETURN TO TABLE OF CONTENTS

2.5.1.6 Time Requirements

The time demand grows linearly with thenumber of anchor segments explored for a given molecule, num_anchors_orients_for_growth, the number of flexible bonds and the number of torsion positions per bond, as well as the number_confs_for_next_growth. Using the notation in the Workflow for Anchor-and-Grow Algorithm, the time demand can be expressed as

where the additional terms are:
NA is the number of anchor segments tried per molecule.
NB is the number of rotatable bonds per molecule.

RETURN TO TABLE OF CONTENTS

2.5.1.7. Growth Tree and Statistics

Dock uses Breadth First Search to sample the conformational space of the ligand. The tree is pruned at every stage of growth to remove unsuitable conformations. In order to be as space efficient as possible, DOCK only saves one level of growth at a time unless "write_growth_tree" is turned on. In order to construct the growth tree it was necessary to do the following: (1) Retain all levels of growth (before and after minimization) in memory. (2) Link every conformer to its parent conformer during growth. (3) While writing out the tree, the traversal starts from a fully grown ligand (leaf), moving up the branch (parent conformer) until the ligand anchor (root) is reached. Finally, the growth tree branch is printed as a multi-mol2 file starting from the anchor to the fully grown ligand, including minimizations. This newly implemented feature allows visualization of all stages of growth and optimize behavior of current DOCK routines. Note that the growth trees can easily be visualized using the ViewDock module in the UCSF chimera program. Extra information regarding conformer number, anchor number, parent conformer etc. can also be accessed directly using this tool.

Format for branch files name is as follows:

${Ligand name}_anchor${anchor number}_branch${conformer number of fully grown mol.}.mol2

e.g. LIG1_anchor1_branch4.mol2

The ligand name is that specified in the mol2 file. The anchor number indicates what fragment or portion of the molecule was used as the anchor. The every conformer (both partially and fully grown) is assigned a unique number.

we recommend that users cat files together and compress them.

cat *_branch*.mol2 > growth_tree.mol2; gzip growth_tree.mol2

In addition, growth statistics are printed to the output files if the verbose flag is used.

-----------------------------------
VERBOSE MOLECULE STATS
Number of heavy atoms = 30
Number of rotatable bonds = 7
Formal Charge = 1.00
Molecular Weight = 429.56
Heavy Atoms = 30
-----------------------------------
VERBOSE ORIENTING STATS :
Orienting 10 anchor heavy atom centers
Sphere Center Matching Parameters:
tolerance: 0.25; dist_min: 2; min_nodes: 3; max_nodes: 10
Num of cliques generated: 2298
Residual Info:
min residual: 0.0261
median residual: 0.3932
max residual: 0.5000
mean residual: 0.3737
std residual: 0.0935
Node Sizes:
min nodes: 3
max nodes: 4
mean nodes: 3.0070
# of anchor positions: 1000
-----------------------------------
VERBOSE GROWTH STATS : ANCHOR #1
32/1000 anchor orients retained (max 1000) t=9.06s
Lyr 1-1 Segs|Lyr 2-1 Segs|Lyr 3-2 Segs|Lyr 4-2 Segs|Lyr 5-1 Segs|
Lyr:1 Seg:0 Bond:8 : Sampling 6 dihedrals C6(C.ar) C4(C.ar) C3(C.3) C1(C.3)
Lyr:1 Seg:0 24/192 retained, Pruning: 6-score 162-clustered t=10.68s
Lyr:2 Seg:0 Bond:5 : Sampling 3 dihedrals C4(C.ar) C3(C.3) C1(C.3) N1(N.3)
Lyr:2 Seg:0 51/72 retained, Pruning: 21-clustered t=11.38s
Lyr:3 Seg:0 Bond:1 : Sampling 3 dihedrals C3(C.3) C1(C.3) N1(N.3) S1(S.o2)
Lyr:3 Seg:0 105/153 retained, Pruning: 7-score 41-clustered t=13.37s
Lyr:3 Seg:1 Bond:3 : Sampling 6 dihedrals N4(N.am) C2(C.2) C1(C.3) C3(C.3)
Lyr:3 Seg:1 86/630 retained, Pruning: 8-score 536-clustered t=23.93s
Lyr:4 Seg:0 Bond:43 : Sampling 3 dihedrals C16(C.ar) S1(S.o2) N1(N.3) C1(C.3)
Lyr:4 Seg:0 90/258 retained, Pruning: 168-clustered t=28.85s
Lyr:4 Seg:1 Bond:26 : Sampling 2 dihedrals C11(C.3) N4(N.am) C2(C.2) C1(C.3)
Lyr:4 Seg:1 147/180 retained, Pruning: 5-score 28-clustered t=35.28s
Lyr:5 Seg:0 Bond:46 : Sampling 6 dihedrals C17(C.ar) C16(C.ar) S1(S.o2) N1(N.3)
Lyr:5 Seg:0 104/882 retained, Pruning: 15-outside grid 22-score 741-clustered t=77.71s

These are the verbose growth statistics for flexible docking to 1PPH (thrombin). These are printed only when the verbose flag is enabled in the command line. This feature is useful for debugging incomplete growths and other possible issues with the growth routines. This feature is also useful to show progress when docking in larger peptide-like ligands (20+ rotatable bonds) which can take several hours. Cumulative timing in seconds (e.g. t=13.37s) is shown at the end of each line to allow quick profiling of the slowest steps during docking. A separate section is printed for each anchor sampled when using multiple anchors. For anchor #1, the orienting routine produces 1000 orients, and 37 are retained after clustering and minimization. The ligand has 7 rotatable bonds. The second line shows the assignment of layers and segments. For details on the terminology, please consult the DOCK 4 paper. subsequently, two lines of information are printed for each torsion sampled.

Lyr:1 Seg:0 indicates that this is Layer #1 and Segment #0. Layer and segment number starts from zero, and corresponds to the array indices used internally. Bond:8 refers to bond number in the mol2 file read in. "Sampling 6 dihedrals C6(C.ar)  C4(C.ar)  C3(C.3)  C1(C.3)" specifies the exact torsion being sampled. Six dihedral positions are being sampled in this case, as determined by the drive_id in flex_drive.tbl. 21/246 retained means 21 conformers were retained from the 246 conformers generated during growth (41 conformers x 6 dihedral positions = 246 new conformers). The Pruning: section demonstrates how these (246-21) or 225 conformers were pruned: 2 conformers were outside the energy grid, 5 conformers exceeded the score cut-off (see pruning_conformer_score_cutoff) and 218 conformers were clustered. Typically clustering removes the greatest number of conformers during each torsion grown as controlled by the pruning_clustering_cutoff parameter. The reader is encouraged to verify that the number of conformers retained can be calculated as above at each stage of growth. If the growth tree is turned on, the total number of conformers stored in the growth tree are also reported.

RETURN TO TABLE OF CONTENTS

2.5.1.9 Rigid Body and Flexible Ligand Docking Input Parameters

Parameter Description Default Value
user_specified_anchor Will the user specify an anchor file? no
atom_in_anchor If the user specifies an anchor, which atom label in the anchor? C1,1
limit_max_anchors Will the user limit the maximum number of anchors docked? no
max_anchor_num If the user limits the number - maximum number of anchors allowed 1
min_anchor_size Minimum number of atoms in the anchor 5
pruning_use_clustering Will pruning the conformers use a clustering algorithm? yes
pruning_max_orients How many orients will be generated prior to pruning? 1000
pruning_clustering_cutoff Maximum number of clusterheads retained from pruning 100
pruning_orient_score_cutoff Maximum score allowed for orientation of the anchor (kcal/mol) 1000.0
pruning_conformer_score_cutoff Maximum score allowed for conformers (kcal/mol) 100.0
pruning_conformer_score_scaling_factor Score cutoff scaling factor to increase of reduce the score cutoff as molecules rebuild 1.0
use_clash_overlap Flag to check for overlapping atomic volumes during anchor and grow no
clash_overlap A clash exists id the distance between a pair of atoms is less than the clash overlap times the sum of their atom type radii 0.5
write_growth_trees Generate large growth tree files (increases memory usage - recommended to concatenate and compress growth tree branches) no

RETURN TO TABLE OF CONTENTS

2.5.2 De novo Design

New to DOCK6.9 is a de novo design approach (DOCK_DN) that can assemble new ligands from a library of smaller fragments in the context of a receptor binding site. We believe this will be a welcome addition to the DOCK community for those users looking to construct new ligands "from scratch" or perform lead refinement in a target binding site.

However, while substantial progress has been made (see Allen et al and online tutorials), users should be warned that the new de novo code has numerous features and only a few parameter combinations have been thoroughly tested. Thus, the default protocols and parameter choices outlined below should only be taken as a rough guide. Users would be wise to perform their own de novo tests as the optimal parameter choices for a specific system, or specific type of de novo experiment, are likely to be system dependent.

DOCK_DN experiments entail two primary processes: (1) fragment library generation followed by (2) de novo construction. Fragment generation is discussed in more detail in the section titled Fragment Library Generation.

Users have a choice of two types of de novo construction: (1) ligand assembly in which growth is based on anchor positions that have been oriented (i.e. sampled to the binding site spheres like the standard DOCK 6 Flex protocol, see Mukherjee et ) or (2) ligand assembly in which growth is based on a user supplied anchor position (i.e. a known scaffold geometry). The first type is a true "from-scratch" assembly, while the second type is better suited for lead refinement. The DOCK distribution contains test case example input files for both types of experiments.

Next, DOCK_DN generates new molecular structures layer-by-layer, in an iterative growth approach, sampling different fragments from sidechain, linker, and scaffold libraries (see next section). The overall flowchart for iterative growth can be seen below.

All "complete" molecules, as the growth become completed (no additional attachment points possible), are written to output files that contain the prefix of the recently completed layer number. In addition, the final output file contains all complete molecules that were created over the course of the run. Introduced in DOCK6.12 is a parameter (dn_remove_duplicates) that will write out only one conformer for each molecule. If users wish to save more conformers, they may turn this parameter off or apply the associated parameter (dn_max_duplicates_per_mol) to retain more structures on write-out. If this parameter is turned off and a single unique conformer is desired, users may need to post-process their results. (see Make Unique Script Usage).

WARNING: Use of de novo design methods, including the genetic algorithm, must include a vdw_defn file that contains parameters for dummy atoms or unintended clashes can occur during growth. This parameter file is included with DOCK6 as vdw_de_novo.defn.

WARNING: The final molecular output files of de novo design are not overwritten at runtime, but are instead appended to as molecules are built. Users should beware of duplicate structures if experiments are re-run without deletion of output files.

De novo DOCK Refinement

User specified anchor molecules must contain Du atoms to specify attachment points. This can be done manually in a text based editor such as Vi or Emacs. The screenshot below shows a modified mol2 file altered to specify attachment of fragments replacing atom C1. The name of atom C1 has been changed to Du1 and the atom type has been changed to type Du. For some substitutions additional atoms and bonds may need to be removed (with bond and atoms counts updated) to generate a structure maintaining valence properties. To ensure proper valence, bond and atom counts, structures can be created using a program such as UCSF Chimera, specifying the attachment point as a rare atom type. The rare atom type can be simply replaced with Du in a text editor after the structure has been output by Chimera.

	@ TRIPOS ATOM
			1 Du1    1.5994		-16.9463	-11.2883	Du      1	<1>		-0.0418
			2 C2     0.6443		-16.1780	-10.2132	C.ar	1	<1>		-0.1263
			3 C3    -0.4560		-14.9142	-9.8558		C.ar	1	<1>		-0.0990


De novo DOCK Descriptor Driven Design (D3N)

When DOCK is compiled with RDKit (configure with gnu.rdkit or gnu.parallel.rdkit) termed DOCK/RDKit, DOCK/RDKit takes advantage of multiple cheminformatics descriptors featured in RDKit. In standard DOCK_DN design, molecules are constructed based on the user defined energy grids and/or torsion environments. In previous versions, there was no method to drive molecular construction based on key cheminformatics descriptors, until now. In version 6.11, users can bias molecular growth to promote partially grown molecules to the next layers of growth that are contingent on user-defined ranges for the descriptor being employed. As each partially grown molecule is passed to the next layer of growth, the molecules undergo a Metropolis-like criteria to assess if the values for computed descriptors fall within user-defined ranges based on input file. If they pass the criteria, the molecule is to be sent to the next layer immediately. However, if molecules fail the criteria, they will be rejected. Since the criteria is based on Metropolis-like procedure, the resulting distributions of these descriptors will have soft tails near the user-defined upper and lower limit for a given ensemble of molecules. Shown below is an example header information for a constructed molecule. All descriptors that are shown in the descriptor will have a "RD_" prefix.


			##########                   RD_num_arom_rings:                   2
			##########                   RD_num_alip_rings:                   1
			##########                    RD_num_sat_rings:                   0
			##########                    RD_Stereocenters:                   0
			##########                      RD_Spiro_atoms:                   0
			##########                             RD_LogP:            2.505100
			##########                             RD_TPSA:           31.350000
			##########                           RD_SYNTHA:            2.218558
			##########                              RD_QED:            0.798296
			##########                             RD_LogS:           -3.425866
			##########                     RD_num_of_PAINS:                   0
			##########                      RD_PAINS_names:            NO_PAINS
			##########                           RD_SMILES:c1csc(Cc2ccc3c(c2)OCCO3)n1



2.5.2.1 DOCK_DN Input Parameters

Parameter Description Default Value
dn_fraglib_scaffold_file The path to the fragment library for just scaffolds
dn_fraglib_linker_file The path to the fragment library for just linkers
dn_fraglib_sidechain_file The path to the fragment library for just side chains
dn_user_specified_anchor Choose whether to provide an anchor (yes), or have DOCK search for an anchor from within the fragment libraries. yes
dn_fraglib_anchor_file The path to the anchor .mol2 file
dn_use_torenv_table Will torsion environment be used? yes
dn_torenv_table The path to the torsion environment (.dat)

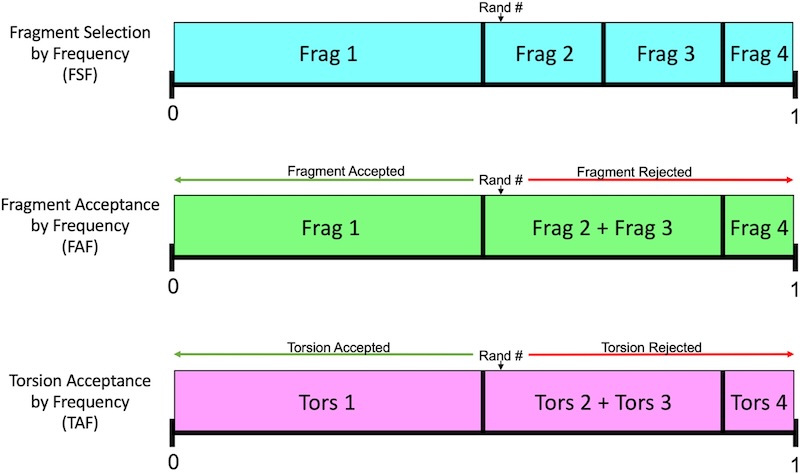

dn_sampling_method Choose which method to use when choosing fragments for each layer (exhaustive, random, graph) graph
dn_graph_max_picks The number of fragment picks per layer per Dummy atom when graph method is turned on 30
dn_graph_breadth The number of fragments that are similar (using Tanimoto) to a successful fragment when graph method is turned on. 3
dn_graph_depth Parameter that controls the overall number of fragment attempted via the following formula: Total_attempts=(max_picks)x=(breadth)^(depth). 2
dn_graph_temp The beginning annealing temperature when graph method is turned on. Higher temperatures lead to greater likelihood of fragment selection even if score does not improve. 100.0
dn_num_random_picks Number of fragments randomly chosen to add to anchor when random method is turned on
dn_pruning_conformer_score_cutoff The max score allowed for fragment conformer addition to be accepted (kcal/mol) if that fragment is in the top (dn_max_layer_size) scoring of each layer. 100.0
dn_pruning_conformer_score_scaling_factor Scaling factor which alters dn_pruning_conformer_score with each layer. Set the scaling factor to 1 then the cutoff stays the same at each layer; set it to 2 and it is halved at each layer. 2.0
dn_pruning_clustering_cutoff Parameter which impacts clustering of anchor orients. The lower value the more anchor orients are kept. 100.0
dn_remove_duplicates Determines whether duplicates of complete molecules are removed at the end of growth, based on Tanimoto. yes
dn_max_duplicates_per_mol Specifies the number of molecules to be kept in the ensemble - defaulted to no duplicates. 0
dn_write_pruned_duplicates If turned on, any duplicates that are pruned by Tanimoto will be written to their own file. no
dn_advanced_pruning Master parameter for advanced pruning. yes
dn_prune_initial_sample Controls pruning of the initial attachments performed on a growing molecule yes
dn_sample_torsions Controls whether or not torsions are sampled. Constructing with internal energy only as the scoring function is the major reason to turn this off. yes
dn_prune_individual_torsions Controls pruning of each individual torsional sampling. Each growing molecule will have all of its potential growth paths pruned for each individual attempted attachment. yes
dn_prune_combined_torsions Controls ensemble pruning for each attachment point. This is performed after all attachments for a given attachment point have been attempted and all torsions sampled. yes
dn_random_root_selection Controls whether or not roots for the next layer will be selected randomly, rather than the best by scoring function. Constructing with internal energy only as the scoring function is the major reason to turn this off. no
dn_mol_wt_cutoff_type Parameter which determines the use of a "hard" upper and lower cutoff for molecular weight (no molecules beyond those values) or a "soft" cutoff (accepted based on standard deviation). soft
dn_upper_constraint_mol_wt The max molecular weight allowed, or the upper boundary before the standard deviation is assessed. 550
dn_lower_constraint_mol_wt The minimum molecular weight allowed, or the lower boundary before the standard deviation is assessed. 0
dn_mol_wt_std_dev If using a soft molecular weight cutoff, this is the standard deviation that determines the probability of acceptance beyond the cutoffs. 35.0
dn_constraint_rot_bon The max rotatable bonds allowed 15
dn_constraint_formal_charge Largest absolute charge of molecule 2.0
dn_heur_unmatched_num # of unmatched heavy atoms for hRMSD to be considered a different molecule when pruning between root and layer 1
dn_heur_matched_rmsd Max rmsd of matching heavy atoms of molecules to be considered similar molecule when pruning root to layer 2.0
dn_unique_anchors The number of unique anchors post clustering 3
dn_max_grow_layers The maximum number of layers that can be grown from a given starting anchor. 9
dn_max_root_size The number of new anchors that seed the next layer of growth 25
dn_max_layer_size The number of partially grown molecules that advance through the search to subsequent attachment points 25
dn_max_current_aps Maximum attachment points the molecule can have at any one time (stop adding new scaffolds when the current fragment has this many open attachment points) 5
dn_max_scaffolds_per_layer The max number of scaffolds added per layer per molecule 1
dn_write_checkpoints Write molecules for each layer yes
dn_write_prune_dump Write all molecules pruned out at every step (large memory output) yes
dn_write_orients Write out the orients no
dn_write_growth_trees Shows growth for every accepted molecule (may produce large output files) no
dn_output_prefix The prefix of the output file with final molecules output

DOCK_DN Output Components

In the 6.12 release, The output of the DOCK_DN method has been overhauled. Below is an example portion of the new output, where the given run has finished Layer 8.


``` dn.out
1  ##### Entering layer of growth #8
2  Root size at the beginning of this layer = 6
3    In Root [ 0], sccf atts 322 |acc mols 98 |cmpd 59 |fltrd cmpd 59 |Prnd 39 |Kpt 0 |S 16.83|A/S 19.13
4    In Root [ 1], sccf atts 413 |acc mols 98 |cmpd 47 |fltrd cmpd 47 |Prnd 51 |Kpt 0 |S 24.50|A/S 16.85
5    In Root [ 2], sccf atts 297 |acc mols 101|cmpd 30 |fltrd cmpd 30 |Prnd 71 |Kpt 0 |S 16.02|A/S 18.54
6    In Root [ 3], sccf atts 390 |acc mols 83 |cmpd 39 |fltrd cmpd 38 |Prnd 44 |Kpt 0 |S 21.97|A/S 17.75
7    In Root [ 4], sccf atts 168 |acc mols 33 |cmpd 24 |fltrd cmpd 25 |Prnd 9  |Kpt 0 |S 10.97|A/S 15.32
8    In Root [ 5], sccf atts 28  |acc mols 0  |cmpd 0  |fltrd cmpd 0  |Prnd 0  |Kpt 0 |S  3.90|A/S 7.18
9      From all attachments events, 1618 fragments were collected in layer 8 prior to all pruning/filtering.
10      From accepted frags ( N= 413 ) in layer 8,
11          Collected a total of 0 candidate root fragments, then that number goes down to 0 due to pruning by the RMSD heuristic.
12          -------------------------------------------
13          0    duplicate fragments were found.
14          199  complete molecules were filtered
15          214  root fragments were filtered
16          0    completed molecules were written to file
17          -------------------------------------------
18          0    root frags intended for the next layer were further pruned via rmsd.
19          0    candidate root frags intended for the next layer were ignored due to limit on root size.
20          For prune_root frags, 17 frags couldn't be written out due to failed H-capping protocol
21                                        1 frags couldn't be written out due to failed torsion checks on H-caps.
22
23      Layer 8 completed! Moving on the next layer with 0 root fragments.
24      For Layer 8, time duration is: 94.20 seconds with 17.18 with attachments per second.
```

Lines 3 to 8 shows the basic break down on how many attachments there are per working root molecule. The following columns show more details on each attachment type. Those columns definitions are shown below:


DEFINITONS:
sccf atts: number of successful attachments.

acc mols: number of accepted attachments after pruning.

cmpd: number of completed number generated.

fltrd cmpd: number of completed molecule that were filtered based on Molecular Weight, Formal Charge, and Number of Rotatable Bonds.

Prnd: number of partially grown molecules that were pruned due to the limit set by dn_max_layer_size.

Kpt: number of partially grown molecules kept during the growth iterations via sampling the root.

S: how many seconds it took to run for a given root sampling.

A/S: The number of successful attachments per second.


Lines 9 to 21 outline the statistics on how many molecules were written out and how many were further filtered for an easier understanding on how DOCK_DN is behaving.

Lines 13 to 21 displays the number of molecules that were written out and more details on why some molecules are not eligible for a write out. Further, the write out system of pruned molecules has been changed to be more comprehensive. Below shows the types of output .mol2 files that are written out on-the-fly.

{#} represents anchor number and {##} represents the layer number they have been outputted




Details

Filtering and Pruning Reasons


Nomenclature
Finalized with?
Partially grown?
Valid molecules?
Prune via size max Layer
Filter via MW/ROT/FC
Prune via size of max Root
PruneRMSD via hRMSD
Output .mol2 nomenclature
Completed Sidechains N Y N/A Pass N/A N/A output.completed.denovo_build.mol2
Completed: Filtered Sidechains N Y N/A Failed N/A N/A ${output}.anchor_{#}.filtered_comp_layer_{##}.mol2
Pruned via Root Hydrogens Y Y Failed Failed N/A N/A ${output}.anchor_{#}.prune_root_layer_{##}.mol2
Pruned via RMSD Hydrogens Y Y N/A N/A N/A Failed ${output}.anchor_{#}.prune_rmsd_mw_layer_{##}.mol2
Ignored Candidate Root Hydrogens Y Y N/A N/A Failed N/A ${output}.anchor_{#}.cand_root_ign_layer_{##}.mol2
Propagated Root Attachment Points Y N N/A N/A N/A N/A ${output}.anchor_{#}.root_layer_{##}.mol2

2.5.2.2 DOCK_D3N Input Parameters

DOCK_D3N is developed on top of DOCK_DN. The input parameters shown below is also prompted with the input parameters in standard DOCK_DN, when DOCK is compiled with RDKit

Parameter Description Default Value
dn_drive_verbose Turn on verbose D3N to output more information no
dn_save_all_molecules Save all molecules that are rejected by D3N no
dn_drive_clogp Turn on if you want to bias construction with cLogP no
dn_lower_clogp Lower limit of the range -0.30
dn_upper_clogp Upper limit of the range 3.75
dn_clogp_std_dev Standard deviation of the Metropolis-like procedure 2.02
dn_drive_esol Turn on if you want to bias construction with ESOL(LogS) no
dn_lower_esol Lower limit of the range -5.23
dn_upper_esol Upper limit of the range -1.35
dn_esol_std_dev Standard deviation of the Metropolis-like procedure 1.94
dn_drive_tpsa Turn on if you want to bias construction with TPSA no
dn_lower_tpsa Lower limit of the range 28.53
dn_upper_tpsa Upper limit of the range 113.20
dn_tpsa_std_dev Standard deviation of the Metropolis-like procedure 42.33
dn_drive_qed Turn on if you want to bias construction with QED no
dn_lower_qed Lower limit of the range 0.61
dn_qed_std_dev Standard deviation of the Metropolis-like procedure 0.19
dn_drive_sa Turn on if you want to bias construction with Synthetic Accessibility (SynthA/sa) no
dn_upper_sa Upper limit of the range 3.34
dn_sa_std_dev Standard deviation of the Metropolis-like procedure 0.9
dn_drive_stereocenters Turn on if you want to bias construction with number of stereocenters no
dn_upper_stereocenter Upper limit of the range 2
dn_drive_pains Turn on if you want to bias construction with number of Pan-assay Interference Compounds (PAINS/pains) no
dn_upper_pains Upper limit of the range 1
dn_start_at_layer Layer number you want to start D3N 1
sa_fraglib_path Path to SynthA parameters sa_fraglib_path
PAINS_path Path to PAINS parameters pains_table_2019_09_01.dat

NOTE: some descriptors do not have double-sided limits. This is as intended because these descriptors have a one-sided direction of "most favorable" score.

DOCK_D3N Output Components

1. ${output}.denovo_build.mol2 is the mol2 file containing the complete top scoring molecules. Molecules are appended to this file as molecules are built to completion.

2. ${output}.denovo_rejected.mol2 is the mol2 file containing the partially/complete molecules. Whenever molecules are rejected by the Metropolis-like criteria, molecules will go here. (This file is created, when "dn_save_all_molecules" is turned on. )

3. ${output}.anchor_{#}.root_layer_{##}.mol2 is the partial molecules for each anchor (#) at each layer (##). These files are generated as the algorithm is running. This feature is turned on/off by the input parameter "dn_write_checkpoints".

4. ${output}.anchor_{#}.prune_dump_layer_{##}.mol2 is the partial and complete molecules that were filtered out for having undesirable properties for each anchor (#) at each layer (##) of growth. This feature is turned on/off by the input parameter "dn_write_prune_dump".

RETURN TO TABLE OF CONTENTS

2.5.3 DOCK_GA: Small Molecule Evolution using a Genetic Algorithm

Introduced in DOCK6.10 is a genetic algorithm (DOCK_GA) - a molecular construction method that utilizes evolutionary principles, including molecular recombination (referred to as crossover), mutation, and natural selection, to guide de novo design of ligands that interact favorably with the target (see Prentis et al. and online tutorials). DOCK_GA can be used (1) to generate structural analogs with tailored interactions to the target, (2) as a de novo design method to grow molecules from a molecular segment, and (3) as a compliment to a screen to identify the key molecular functionality of that can be used to target the site. To initiate a DOCK_GA run,a pre-docked molecular or fragment ensemble is required. During DOCK_GA preparation, fitness pressures are applied to the initial parent ensemble and structurally similar molecules are removed. Next, the initial parent ensemble, as well as all subsequent parent ensembles, undergo crossover to generate offspring followed by mutation of the offspring and the parents (if the user so chooses). All newly constructed molecules have their energetic interactions optimized with the receptor through minimization and are subjected to the fitness pressures, molecular descriptor filters, and bond environment filter. Next, a subset of the current generation's parents and offspring are selected to become the parents for the next generation. The aforementioned processes continue until the maximum number of generations is reached.

Genetic Algorithm Crossovers

Parental crossover occurs between two molecules with overlapping rotatable bonds in 3D space within the context of the binding site. Molecule pairs are permitted to undergo single-point crossover, where the substructures on either side of the overlapping bond are exchanged, generating two offspring. Two versions of the crossover method, exhaustive and random, have been implemented, where either all or a randomly selected subset of parents undergo crossover. For both methods, the distance and angle between parent-parent bond pairs is used to limit mating to a confined geometric area, thereby promoting the generation of offspring with reasonable geometries.

Genetic Algorithm Mutations

There are four types of fragment-based mutations employed in DOCK_GA: addition, deletion, substitution, or replacement of a portion of the molecule. A subset of offspring (and parents, if specified by user) undergo fragment-based mutation until the number of mutants reaches the user-defined target or the maximum mutation attempts is performed. These mutations allow the ensembles to change in size and composition, including scaffold-hopping behavior within single segment/fragment structures.

If the initial ensemble is comprised of one molecule or a group of molecules that do not overlap in the binding site, parent mutation is required to produce offspring during the first generation. When a randomly selected molecule undergoes mutation and the product successfully passes the bond environment filter (torsion environment table), it is prohibited from producing additional mutants during the current generation.

Genetic Algorithm Fitness Function

In preparation for molecule selection, compounds are prioritized for retention using the fitness function, which is comprised of any user-defined combination of DOCK6 scoring methods. The score components can be combined linearly (using the Descriptor Score) or normalized by the scores present in the current ensemble, using one of the two niching options discussed later.

Genetic Algorithm Selection

To focus the combinatorial explosions that occurs in de novo design, molecules are selected at each generation to become the next generation's parents. This process is performed through one of three selection methods: elitism, roulette, and tournament. Elitism maintains a user-defined number of the top scoring molecules. Tournament selection maintains the best scored molecule from a randomly selected pair of compounds. The roulette method selects molecules based on a probability function, whereby those with greater fitness are more likely to be propagated to the next generation. Both elitism and roulette methods can be executed on the parents and offspring independently (separate) or the combined ensemble (combined). Tournament selection can be performed by creating parent-offspring pairs or pairs within each ensemble.

2.5.3.1 DOCK_GA Input Parameters

Parameter Description Default Value
ga_molecule_file Initial molecule ensemble in mol2 format ga_molecule_file.mol2
ga_utilities Use of GA utilities for this run no
ga_fraglib_scaffold_file Fragment library mol2 file containing scaffolds fraglib_scaffold.mol2
ga_fraglib_linker_file Fragment library mol2 file containing linkers fraglib_linker.mol2
ga_fraglib_sidechain_file Fragment library mol2 file containing sidechains fraglib_sidechain.mol2
ga_torenv_table Path to the torsion environment table (.dat) fraglib_torenv.mol2
ga_max_generations Max number of generations to be executed 100
ga_xover_sampling_method_rand Selects the random or exhaustive crossover sampling methods (yes for random) yes
ga_xover_max Max number of offspring generated from crossover events 150
ga_bond_tolerance User-specified cutoff for allowable atom sq dist 0.5
ga_angle_cutoff User-specified cutoff for bond angles 0.14
ga_check_overlap Output parent pairs involved in crossover in unique_xover.mol2 file. no
ga_check_only Only check parent pairs for crossover (no offspring, mutations, or selection). no
ga_mutate_parents Mutate the parents no
ga_pmut_rate Parent mutation rate - only used when random parent mutation is turned on 0.3
ga_omut_rate Offspring mutation rate for random mutation sampling 0.7
ga_max_mut_cycles Max mutation attempts - for random mutation sampling 5
ga_num_random_picks Number of random picks for random sampling 15
ga_max_root_size Max root size in de novo DOCK 5
ga_energy_cutoff The upper bounds for energy pruning 100
ga_heur_unmatched_num The number of unmatched atoms for hRMSD pruning 1
ga_heur_matched_rmsd The RMSD of matched atoms for hRMSD pruning 0.5
ga_constraint_mol_wt The upper bound for mol wt 500
ga_constraint_rot_bon The upper bound for # rot bonds 10
ga_constraint_H_accept The upper bound for # of hydrogen acceptors 10
ga_constraint_H_donor The upper bound for # of hydrogen donors 5
ga_constraint_formal_charge The upper and lower bound for formal charge 2
ga_ensemble_size The number of survivors to carry to next generation 200
ga_selection_method The type of selection (elitism, tournament, roulette) elitism
ga_elitism_combined Combine the parent and offspring populations for the elitism selection method? yes
ga_elitism_option Type of selection:max, percent (perc), or number(num) when elitism is the selection method max
ga_elitism_number The number of top scored parents to pass to the next generation when elitism number is the selection method 20
ga_elitism_percent The top percent of the ensemble(s) to be carried to the next generation when elitism percent is the selection method 0.2
ga_tournament_p_vs_c Select the top scored molecules between parents and offspring separately when tournament selection method is used yes
ga_roulette_separate Select the top scored molecule between parents and offspring separately when roulette selection method is used yes
ga_max_num_gen_with_no_crossover The max number of generations where crossover is not necessary for continuing evolution. After that generation without crossover the algorithm terminates. 25
ga_name_identifier Molecule names prefix in the output files ga
ga_output_prefix Output file name prefix ga_output

DOCK_GA Output Components

1. ${ga_output_prefix}.restart0000.mol2 is the initial parent ensemble to begin DOCK_GA sampling.

2. ${ga_output_prefix}.restart####.mol2 is the molecules from each generation (####). This file can be used as a restart file where the user only needs to change simplex_random_seed to the number of the generation last completed.

2.5.3.2 DOCK_GA RDKit Input Parameters

When RDKit is compiled with DOCK, the input parameters below will be prompted. All molecules in the output mol2 files will contain RDKit descriptors in the header. Currently, DOCK_GA does not have descriptor-driven capabilities.

Parameter Description Default Value
sa_fraglib_path Path to SynthA parameters sa_fraglib.dat
PAINS_path Path to PAINS parameters pains_table_2019_09_01.dat

RETURN TO TABLE OF CONTENTS

2.5.4. Hierarchical DataBase (HDB) Search

For the hierarchical database (HDB) search routine, we precompute molecule conformations, store the conformations in a DB2 file (Coleman, Plos One 2013; Balius, J.Comput. Chem. 2024) with a defined format, read these DB2 files in DOCK, and orient and search through these conformations to find the best scoring poses. For more information about HDB search see Balius et al. (Balius, J.Comput. Chem. 2024). This was implemented to mimic DOCK 3.7 and to enable large scale docking with DOCK 6. DB2 files can be downloaded from the ZINC database (zinc22;zinc20).
Example scripts for building DB2 files can be found here: "[DOCK6path]/template_pipeline/hdb_lig_gen/"

To use HDB set conformer_search_type to HDB.


2.5.4.1 HDB Input Parameters

Parameter Description Default Value
num_per_search Number of poses kept for each orient. The HDB hierarchy is oriented, and then the hierarchy is searched, and a user-specified number of poses are kept. (If the minimizer is turned on, these poses are all minimized.) 1
skip_broken If atoms within a conformation (a branch in the hierarchy) are too close, the conformation is flagged as broken in the DB2 file. If this parameter is "yes", these conformations are skipped. no
hdb_db2_input_file This parameter is for reading in DB2 files. The parameter can take a split_database_index file (as in DOCK 3), which contains a list of db2.gz files; or the parameter can take a single db2.gz file. sdi.txt
hdb_db2_search_score_threshold This is the score cutoff for each segment of the branch. If the score-cutoff is exceeded, then the segment is flagged and all branches containing the segment are halted. (for Grid score and ChemGrid score only VDW term is considered.) 10.0

RETURN TO TABLE OF CONTENTS

2.5.5. Covalent Attach-and-Grow.

Covalent docking can be performed in DOCK6 with the attach-and-grow method (This method is still in development. Use with caution). Attach-and-grow requires two dummy atoms attached to the ligand atom involved in the covalent bond. Attach-and-grow should only be run with the torsion pre-minimizer (the regular minimizer will allow the molecule including the attachment point to move which is undesirable). It uses three spheres to define the attachment location on the receptor. For a cysteine residue these spheres correspond to SG, CB, CA. The dummy atoms are aligned to these spheres. The bond environment is defined by exploring the bondlength, bondlength2 and angle. The dihedral is also sampled. The ligand internal degrees of freedom are explored in the same way as in anchor-and-grow (using the grow periphery functionality).


To use attach-and-grow set conformer_search_type to covalent.


2.5.5.1 Covalent Input Parameters

Parameter Description Default Value
covalent_bondlength This defines the bond length between dummy1 (SG) and dummy2 (CB). The user can give a value, or define a range of values. start:step:stop or start:stop (assumes a step size of 0.1). 1.8
covalent_bondlength2 This defines the bond length between dummy1 (SG) and the ligand atom attachment point. The user can give a value, or define a range of values. start:step:stop or start:stop (assumes a step size of 0.1). A value of -1 will use the bond length of the input structure. -1
covalent_angle This defines the angle between dummy2 (CB), dummy1 (SG) and the ligand atom attachment point. The user can give a value, or define a range of values. start:step:stop or start:stop (assumes a step size of 0.1). A value of -1 will use the angle of the input structure. -1
covalent_dihedral_step Parameter that defines the dihedral step size (0 to 360). The dihedral is defined by sphere 3(CA), dummy2 (CB), dummy1 (SG) and the ligand atom attachment point. a value of 10 means that 36 dihedral are explored. 10

RETURN TO TABLE OF CONTENTS

2.6. Fragment Library Generation

Fragments represent the smallest rigid chemical unit perceived by the program DOCK. These rigid units are determined by the Sybyl atom types of input molecules and settings in the flexible definition library (flex.defn) distributed with the program. As a rule, fragments themselves contain no internal rotatable bonds, however there are some exceptions. For example, methyl, cyano, halogen, and hydrogen groups are, strictly speaking, rotatable groups. But, rotating about the R-X bond does not change the nature of the interaction with the receptor. Thus, these bonds are treated as rigid in the fragment generation process. In addition, double bonds such as those in alkenes (-C=C-) is not typically described as a rotatable bond, but de novo DOCK treats it as such with two possible states: cis and trans. Thus, all double bonds are broken in the fragment generation process. To generate fragments, molecules in the mol2 format must first be downloaded from a chemical catalog. The input molecule file is read by de novo DOCK, the molecules are broken at each rotatable bond, and finally fragments are written to file with dummy atoms (labeled as Du) used as placeholders to mark where the fragment was cleaved. These points in the fragments, called attachment points, define where two fragments can be connected. Final fragments are written to three separate output mol2 files, classified as either sidechains (one attachment point), linkers (two attachment points), or scaffolds (three or more attachment points). Furthermore, redundant fragments are removed, and the frequency of each fragment is the input database is recorded in the header section of the mol2 file. In addition, user may manually add their preferred fragments to the fragment library. The fragments need to be created following the rules described above, and be added to the corresponding classification depending on the number of dummy atoms within each fragment. Users should note that during development we tested MOL2 files from ZINC, MOE, and AMBER. The MOL2 atom types in particular will influence how the fragments are created. Users should check their MOL2 files prior to fragment library generation, for example using the view dock feature in UCSF Chimera.

Fragment Visualization

DOCK6.10 introduced a change in how fragments can be output for better visualization. Using the fragment_library_trans_origin parameter will both translate all output fragments to the origin, as well as attempt to rotate them in such a way that major functionality is in the same plane. This does not affect usage of the fragments in DOCK itself, and is only for manual inspection of the fragment library in the user's favorite visualization software.

Torsion Environments

For every atom in a given molecule, its local topology in all directions one bond away is computed and stored as a canonical string. The atom hybridization, as well as the bond order are considered in these environments, and the collection of all atom environments in a molecule constitutes its fingerprint. The application of atom environments to synthetic feasibility becomes clear upon mining large databases of synthesized, drug-like molecules. In DOCK, we restrict the formation of new connections to torsion environments that have been directly observed in databases of existing chemical matter. This is achieved through an input look-up table provided as a parameter file (prefix_torenv.dat). These look-up tables are distributed with DOCK, or can be generated on-the-fly along with fragments as previously described. If the user chooses to add fragments to the library manually, then the torsion environment table may also need to be updated to allow connections involving the added fragments. The fragment library entries can be edited as follows. Using the combine_torenv.py script (located in the bin directory upon compilation), the user can combine two torsion environments .dat files. This is necessary to increase the likelihood of success for DOCK_GA runs. The combine_torenv.py requires two files as arguments combine, sort and remove redundancies to make a master torsion environment table.

DOCK_GA Torsion Environments

DOCK_GA requires a specialized torsion environment table that includes the bond types of the initial molecules in order to succeed. The torsion environment table is alphanumerically ordered. The user can use the combine_torenv.py script located in the bin directory upon compilation to combine multiple torsion environment tables. Doing so will increase the likelihood of successful mutations during the genetic algorithm routine.

2.6.1 Fragment Library Generation Parameters

Under current DOCK infrastructure, to write a new fragment library, conformer_search_type must be set to flex.

Parameter Description Default Value
write_fragment_libraries Does the user want to write fragment libraries? (By default, set to no. Must be 'yes' to write libraries) no
fragment_library_prefix Choose a prefix for fragment library file fraglib
fragment_library_sort_method Choose from frequency (freq) or fingerprint (fingerprint) for sorting the fragment library, when fragment library is turned on freq
fragment_library_trans_origin Translate all fragments to a single origin point (no: fragments remain in their original positioning in 3D space) yes
fragment_library_freq_cutoff When frequency fragment library is turned on then what is the minimum frequency allowed in the fragment library? (1 = all fragments allowed) 1

Fragment Library Generation Output Components

1. ${fragment_library_prefix}_sidechain.mol2 is the sidechain fragments file - these fragments contain 1 point of attachment.

2. ${fragment_library_prefix}_linker.mol2 is the linker fragments file - these fragments contain 2 points of attachment.

3. ${fragment_library_prefix}_scaffold.mol2 is the scaffold fragment file - these fragments contain 3 or more points of attachment.

3. ${fragment_library_prefix}_rigid.mol2 is the rigid fragment file, which contains whole molecules lacking any DOCK rotatable bonds.

4. ${fragment_library_prefix}_torenv.dat is the torsion environment table listing all seen bond connections.

RETURN TO TABLE OF CONTENTS

2.7. Database Filter

The Database Filter is designed for on-the-fly filtering of small molecules from the database during docking. Filtering small molecules by heavy atoms, rotatable bonds, molecular weight and formal charge is currently supported. This routine is designed to be modular so that other descriptors can be easily added. The default values are deliberately set to allow most small molecules to pass through. One use of this routine would be to partition a database into subsets such as "0-7 rotbonds" or "300-500 molwt" or "neutral charge". Another use would be to exclude ligands that are too small (<200 amu) or too large (>500 amu) for a particular target. This routine can also be used to filter a database without performing any docking.

2.7.1 Database Filter Parameters

Parameter Description Default Value
use_database_filter Does the user want to use database filter? no
dbfilter_max_heavy_atoms Maximum number of ligand heavy atoms 999
dbfilter_min_heavy_atoms Minimum number of ligand heavy atoms 0
dbfilter_max_rot_bonds Maximum number of ligand rotatable bonds 999
dbfilter_min_rot_bonds Minimum number of ligand rotatable bonds 0
dbfilter_max_molwt Maximum ligand molecular weight 9999.0
dbfilter_min_molwt Minimum ligand molecular weight 0.0
dbfilter_max_formal_charge Maximum ligand formal charge 10.0
dbfilter_min_formal_charge Minimum ligand formal charge -10.0

2.7.2 Database Filter RDKit Parameters

RDKit is built on top of the DOCK database filtering feature. The input parameters shown below will be prompted with the input parameters during standard Databse Filtering procedure, when DOCK is compiled with RDKit.

Parameter Description Default Value
dbfilter_max_stereocenters Upper limit to number of stereocenters 6
dbfilter_min_stereocenters Lower limit to number of stereocenters 0
dbfilter_max_spiro_centers Upper limit to number of spiro_centers 6
dbfilter_min_spiro_centers Lower limit to number of spiro_centers 0
dbfilter_max_clogp Upper limit to number of cLogP 20
dbfilter_min_clogp Lower limit to number of cLogP -20
dbfilter_max_logs Upper limit to number of LogS 20
dbfilter_min_logs Lower limit to number of LogS -20
dbfilter_max_tpsa Upper limit to number of TPSA 1000.0
dbfilter_min_tpsa Lower limit to number of TPSA 0.0
dbfilter_max_qed Upper limit to number of QED 1.0
dbfilter_min_qed Lower limit to number of QED 0.0
dbfilter_max_sa Upper limit to number of SynthA 10
dbfilter_min_sa Lower limit to number of SynthA 1
dbfilter_max_pns Upper limit to number of PAINS 100
dbfilter_sa_fraglib_path Path to SynthA parameters sa_fraglib.dat
dbfilter_PAINS_path Path to PAINS parameters pains_table_2019_09_01.dat

RETURN TO TABLE OF CONTENTS

2.8. Ligand RMSD

Three types of root mean square distance (RMSD) values are reported when "calculate_rmsd = yes". These values can be found in the header of the output MOL2 file. Note: Ligand RMSD calculations cannot be performed when running DOCK in parallel.

(1) Standard heavy-atom RMSD (HA_RMSDs): This is the standard pair-wise RMSD calculation between the non-hydrogen atoms of a reference conformation a and a pose conformation b for a ligand with N total heavy atoms of index i:


If the HA_RMSDs is "-1000.0", then there is an inconsistency in the number of heavy atoms between the reference and the docked conformer.

(2) Minimum-distance heavy-atom RMSD (HA_RMSDm): This measure is based on the RMSD implementation used in AutoDock Vina (Trott and Olson, J. Comput. Chem. 2010), which does not explicitly enforce one-to-one mapping. Rather, atom pairings between reference conformation a and pose conformation b are determined by the minimum distance to any atom of the same element type, and it may be an under-prediction of the true RMSD.


(3) Hungarian (symmetry-corrected) heavy-atom RMSD (HA_RMSDh): The final RMSD implementation is based on an O(N^4) implementation of the Hungarian algorithm (Kuhn, Nav. Res. Logist. Q. 1955; Munkres, J. Soc. Indust. Appl. Math. 1957). The algorithm solves the optimal assignment between a set of reference ligand atoms a and a set of pose ligand atoms b of the same size. For all groups of atoms of the same Sybyl atom type, a cost matrix M is populated where each matrix element mij is equal to the distance-squared between reference atom ai and pose atom bj. The Hungarian algorithm is used to determine one-to-one assignments between reference and pose ligand atoms such that the total distance between atoms is minimized. The new assignments c(i) are fed into the standard RMSD function in order to compute a symmetry-corrected RMSD. If the HA_RMSDh is "-1000.0", then there is an inconsistency in the number of atoms of at least one atom type between the reference and the docked conformer.


2.8.1 Ligand RMSD Parameters

Parameter Description Default Value
calculate_rmsd Calculate root mean square deviation? no
use_rmsd_reference_mol Does the user want to use a reference molecule to calculate rmsd? no
rmsd_reference_filename The path to the rmsd reference molecule N/A

RETURN TO TABLE OF CONTENTS

2.9. Orienting the Ligand

2.9.1. Sphere Matching

The rigid body orienting code is written as a direct implementation of the isomorphous subgraph matching method of Crippen and Kuhl (Kuhl et al. J. Comput. Chem. 1984). All receptor sphere pairs and atom center pairs are considered for inclusion in a matching clique. This is more computationally demanding than the clique matching algorithm implemented in previous versions that used a distance binning algorithm to restrict the clique search, in which pairs of spheres and atom centers were binned by distance. Only sphere pairs and center pairs that were within the same distance bin were considered as potential matches (Ewing and Kuntz. J. Comput. Chem. 1997).

The clique matching implementation avoids bin boundaries that prevent some receptor sphere and ligand atom pairs from matching, and, as a result, it can find good matches missed by previous versions of DOCK. The rigid body rotation code has also been corrected to avoid a singularity that occurred if the spheres in the match lay within the same plane.

There are two types of ligand orientation currently available:

(1) Automated Matching —Specify the number of orientations, and DOCK will generate matches until enough orientations passing the bump filter have been formed. Matches are formed best first, with respect to the difference in the ligand and site point internal distances.
(2) Manual Matching —Specify the distance and node parameters, and DOCK will generate all the matches which satisfy them. The number of orientations scored is equal to the total matches minus the orientations discarded by the user applied filters.

Multiple orientations may be written out for each molecule using the write_orientations parameter, otherwise only the best orientation is recorded. Note that this feature is available only in serial DOCK; in parallel DOCK only the best orientation is emitted. In addition, now "VERBOSE ORIENTING STATS" are now printed when the verbose flag is used. This prints orienting parameters, residual statistics, statistics on the nodes used in the match. See the Growth Tree And Statistics section below for an example of the output.

RETURN TO TABLE OF CONTENTS

2.9.2. Critical Points

The critical_points feature is used to focus the orientation search into a subsite of the receptor active site (DesJarlais et al. J. Comput-Aided Molec. Design. 1994 and Miller et al. J. Comput. Aided Mol. Design. 1994). For example, identifying molecules that interact with catalytic residues might be of chief interest. Any number of points may be identified as critical (see Critical Points in the sphgen documentation for information on labeling spheres), and any number of groupings of these points may be identified. Cliques are checked for critical points by comparing spheres; the criterion is that every grouping must have a coincident sphere and the first coincident sphere found in a grouping terminates further searching of that grouping. An alternative to using critical points is to discard all site points that are some distance away from the subsite of interest, while retaining enough site points to define unique ligand orientations. This feature can be highly effective at reducing matching by five-fold or more. It is particularly useful to also assign chemical labels to the critical points to further focus sampling. In this case cliques are checked first for satisfaction of the critical points criterion and then for satisfaction of the chemical matching criteria.

RETURN TO TABLE OF CONTENTS

2.9.3. Chemical Matching

The chemical_matching feature is used to incorporate information about the chemical complementarity of a ligand orientation into the matching process. In this feature, chemical labels are assigned to site points (see Chemical Matching in the sphgen documentation for information on labeling spheres) and ligand atoms (see Ligand File Input) (Kuhl et al. J. Comput. Chem. 1984). The site point labels are based on the local receptor environment. The ligand atom labels are based on user-adjustable chemical functionality rules. These labeling rules are identified with the chemical_defn_file parameter and reside in an editable file (see chem.defn). A node in a match will produce an unfavorable interaction if the atom and site point components have labels which violate a chemical match rule. The chemical matching rules are identified with the chemical_match_file parameter and reside in an editable file (see chem_match.tbl). If a match will produce unfavorable interactions, then the match is discarded. The speed-up from this technique depends how extensively site points have been labeled and the stringency of the match rules, but an improvement of two-fold or more can be expected.

RETURN TO TABLE OF CONTENTS

2.9.4. Macromolecular Docking

This feature has not been used in a long time.

Although DOCK is typically applied to small ligand molecules, it can be used to study macromolecular ligands, for example protein-protein and protein-DNA complexes. The chief difference in protocol is that to use the match_receptor_sites procedure for the orientation search, special ligand centers must be used to represent the ligand. This is signaled by setting the ligand_centers parameter. The ligand centers may be constructed by sphgen and must reside in a file identified with the ligand_center_file parameter. See Shoichet et al. J. Mol. Biol. 1991 for examples and discussion of macromolecular docking.

RETURN TO TABLE OF CONTENTS

2.9.5 Orienting Parameters

Parameter Description Default Value
orient_ligand Does the user want to orient the ligand to spheres? yes
automated_matching Does the user want to perform automated matching instead of manual matching? yes
distance_tolerance The tolerance in angstroms within which a pair of spheres is considered equivalent to a pair of centers (only turned on if manual matching is used) 0.25
distance_minimum The shortest distance allowed between 2 spheres - any sphere pair with a shorter distance is disregarded (only turned on with manually matching is used) 0.0
nodes_minimum The minimum number of nodes in a clique 3
nodes_maximum The maximum number of nodes in a clique 10
receptor_site_file The path to the file containing the receptor spheres receptor.sph
max_orientations The maximum number of orientations that will be cycled through 1000
critical_points Does the user want to use critical point sphere labeling to target orientations to particular spheres? no
chemical_matching Does the user want to use chemical coloring of spheres to match chemical labels on ligand atoms? no
chem_match_tbl The path to the file defining the legal chemical type matches/pairings (only turned on when chemical matching is used) chem_match.tbl
use_ligand_spheres Does the user want to use a sphere file representing ligand heavy atoms to orient the ligand? (typically used for macromolecular docking) no
ligand_sphere_file The path to the file containing the ligand sphere files (only turned on when use ligand spheres is used) ligand.sph

RETURN TO TABLE OF CONTENTS

2.10. Internal Energy Calculation

During growth and minimization, an internal energy scoring function can be used. The goal of the internal energy function is to reduce the occurrence of internal clashes during the torsional optimization. This function computes the repulsive Lennard-Jones term between all ligand atom pairs, excluding all 1-2, 1-3, and 1-4 pairs. (Currently, attractive Lennard-Jones and Coulombic terms are neglected; the aim is to eliminate internal clashes not to optimize the internal geometry. In addition, since there is no dihedral term in the force field, if the attractive terms are included the molecule might appear less physical.) The internal energy can be cut on or off; if cut on, it is reported in the output mol2 file and is used to prune conformers during growth. (This pruning is separate from the pruning that occurs based on interaction energy). We recommend the use of the internal energy function for all calculations.

2.9.5 Internal Energy Parameters

Parameter Description Default Value
use_internal_energy Does the user want to use internal energy for growth and or minimization (only repulsive VDW) yes
internal_energy_rep_exp The VDW exponent only when use internal energy is turned on(DOCK is optimized for default value) 12
internal_energy_cutoff All conformers with an internal energy value above this cutoff are pruned(only turned on use internal energy is used) 100.0

RETURN TO TABLE OF CONTENTS

2.11. Scoring

DOCK uses several types of scoring functions to discriminate among orientations and molecules. Scoring is requested using the score_molecules parameter. The scoring functions are implemented with a hierarchical strategy. A master score class manages all scoring functions that DOCK uses. Any of the DOCK scoring functions can be selected as the primary, or used in combination with Descriptor Score. The scoring function is used during rigid orienting, anchor-and-grow steps, and minimization, which typically make many calls to the scoring function.

RETURN TO TABLE OF CONTENTS

2.11.1. Bump Filter

Orientations and grow steps may be filtered prior to scoring to discard those in which the molecule significantly overlaps receptor atoms. This feature is enabled with the bump_filter flag. At the time of construction of the bump filter, the amount of atom VDW overlap is defined with the bump_overlap parameter (see Grid). At the time of bump evaluation the number of allowed bumps is defined with the max_bump_anchor and max_bump_growth parameter.

2.11.1 Bump Filter Parameters

Parameter Description Default Value
bump_filter Does the user want to perform bump filter? no
bump_grid_prefix The prefix to the grid file containing the desired bump grid (only turned on when bump filter is used) grid
max_bumps_anchor The maximum allowed number of bumps for an anchor to pass the filter 12
max_bumps_growth The maximum allowed number of bumps for a molecule to pass the filter 12

RETURN TO TABLE OF CONTENTS

2.11.2. Contact Score

The contact score is a simple summation of the number of heavy atom contacts between the ligand and receptor. At the time of construction of the contact scoring grid, the distance threshold defining a contact is set with the contact_cutoff_distance (see Grid). Atom VDW overlaps are penalized by checking the bump filter grid, or with the contact_clash_overlap parameter for the intramolecular score. The amount of penalty is specified with the contact_clash_penalty parameter.

The contact score provides a simple assessment of shape complementarity. It can be useful for evaluating primarily non-polar interactions.

2.11.2 Contact Score Parameters

Parameter Description Default Value
contact_score_primary Does the user want to perform contact scoring as primary scoring function no
contact_score_cutoff_distance The distance threshold defining a contact when contact scoring is turned on 4.5
contact_score_clash_overlap Contact definition for use with intramolecular scoring when contact scoring is turned on 0.75
contact_score_clash_penalty The penalty for each contact overlap made when contact score is turned on 50
contact_score_grid_prefix The prefix to the grid files containing the desired contact when contact score is turned on grid

Contact Score Output Components

  • Contact_Score:
    #sum of the number of heavy atom contacts between the ligand and receptor

RETURN TO TABLE OF CONTENTS

2.11.3. Grid-Based Score

The grid-based score is based on the non-bonded terms of the molecular mechanic force field (see Grid for more background).

2.11.3.1 Grid Score Parameters

Parameter Description Default Value
grid_score_primary Does the user want to perform grid-based energy scoring as the primary scoring function? yes
grid_score_rep_rad_scale Scalar multiplier of the radii for the repulsive portion of the VDW energy component only when grid score is turned on 1.0
grid_score_vdw_scale Scalar multiplier of the VDW energy component 1
grid_score_turn_off_vdw A flag to turn off vdw portion of scoring function when grid score vdw scale = 0 yes
grid_score_es_scale Flag to scale up or down the es portion of the scoring function when es scale is turned on 1
grid_lig_efficiency Flag to control use of ligand efficiency (Grid Score / # active heavy atoms) as primary score. no
grid_score_turn_off_es A flag to turn off es portion of scoring function when grid score es scale = 0 yes
grid_score_grid_prefix The prefix to the grid files containing the desired nrg/bmp grid grid

When using Grid Score as a component scoring function in the Descriptor Score, the following parameters (questions asked in the DOCK input) may be needed.

2.11.3.1 Descriptor Grid Score Parameters

Parameter Description Default Value
descriptor_grid_score_rep_rad_scale Scalar multiplier of the radii for the repulsive portion of the VDW energy component only when grid score is turned on 1.0
descriptor_grid_score_vdw_scale Scalar multiplier of the VDW energy component 1
descriptor_grid_score_turn_off_vdw A flag to turn off vdw portion of scoring function when grid score vdw scale = 0 yes
descriptor_grid_score_es_scale Flag to scale up or down the es portion of the scoring function when es scale is turned on 1
descriptor_grid_score_turn_off_es A flag to turn off es portion of scoring function when grid score es scale = 0 yes
descriptor_grid_score_grid_prefix The prefix to the grid files containing the desired nrg/bmp grid grid

Grid Score Output Components

Note: output components will have the prefix desc_ if the scoring function is employed through Descriptor Score

  • Grid_Score:
    #sum of the van der Waals and electrostatic interactions
  • Grid_vdw_energy:
    #van der Waals interaction between the ligand and grid
  • Grid_es_energy:
    #electrostatic interaction between the ligand and grid

RETURN TO TABLE OF CONTENTS

2.11.4. DOCK3.5 Score

DOCK3.5 score is a variant of Grid-based scoring (see Grid). DOCK3.5 score calculates ligand desolvation in addition to steric and electrostatic interactions between the ligand and receptor. The electrostatic interactions between the ligand and the protein are calculated from an electrostatic potential (ESP) map. The ESP map should be calculated using finite difference Poisson-Boltzmann equation (PBE) as implemented in the program DelPhi. We provide scripts for the calculation; however, DelPhi is not distributed with DOCK; see also here.

In DOCK 6.12, DOCK3.5 Score has been updated to match the DOCK 3.7 scoring function. We can convert electrostatic grids producted with Qnifft (Coleman, Plos One 2013). We can convert grids genereated with blastermaster.py to work with DOCK 6. SolvMap has also been updated to use solvent-excluded volume (MySinger, J Chem Inf Model 2010). solvent-excluded volume solvation grids are calculated with sevsol program.

In the DOCK scoring hierarchy DOCK3.5 Score follows GridScore.

2.11.4.1 DOCK 3.5 Score Parameters

Parameter Description Default Value
dock3.5_score_primary Does the user want to perform dock3.5 scoring as the primary scoring function? no
dock3.5_vdw_score When dock3.5 scoring is turned on - calculate steric interaction from dock3.5 score yes
dock3.5_grd_prefix When dock3.5 scoring is turned on - path to files containing dock3.5 grids chem52
dock3.5_electrostatic_score When dock3.5 scoring is turned on - calculate electrostatic interaction from ESP grid calculated using DelPhi yes
dock3.5_ligand_internal_energy Flag to add ligand internal energy to the scoring function no
dock3.5_ligand_desolvation_score Calculate total or volume based ligand desolvation from solvation grids volume
dock3.5_solvent_occlusion_file Occluded solvent grid of the receptor when desolvation score is turned on solvmap
dock3.5_redistribute_positive_desolvation Distribute positive partial atomic desolvation penalties when desolvation score is turned on no
dock3.5_write_atomic_energy_contrib Write contribution from each atom to total score no
dock3.5_score_vdw_scale Scalar multiplier of vdw energy component 1.0
dock3.5_score_es_scale Scalar multiplier of es energy component 1.0

DOCK3.5 Score Output Components

  • Chemgrid_Score:
    #sum of the van der Waals and electrostatics interactions, plus other components (i.e. ligand and receptor desolvations) but depends on your input parameters
  • Chemgrid_vdw_energy:
    #van der Waals interaction between the ligand and receptor
  • Chemgrid_es_energy:
    #electrostatic interaction between the ligand and receptor
  • Chemgrid_polsol:
    #ligand polar desolvation component
  • Chemgrid_apolsol:
    #ligand apolar desolvation component

2.11.5. Continuous Score

Continuous scoring may be used to evaluate a ligand:receptor complex without the investment of a grid calculation, or to perform a more detailed calculation without the numerical approximation of the grid. See Meng et al. J. Comp. Chem. 1992. When continuous scoring is requested, then score parameters normally supplied to Grid, must also be supplied to DOCK. It is left to the user to make sure consistent values are supplied to both programs.

The distance dependence of the Lennard-Jones function is set with the cont_score_att_exp and cont_score_rep_exp parameters. Typically a 6-12 potential is used, but it can be softened up by using a 6-8 or 6-9 potential. The source of the radii and well-depths is the same as for other atom typing applications; see vdw.defn. The distance dependence of the Coulombic function is set with the cont_score_use_dist_dep_dielectric parameter. The dielectric constant is adjusted with the cont_score_dielectric parameter. Note the correspondence of these parameters to those for Grid Energy Scoring.

2.11.5.1 Continuous Score Parameters

Parameter Description Default Value
continuous_score_primary Does the user want to perform continuous non-grid scoring as the primary scoring function? no
cont_score_rec_filename File that contains receptor coordinates receptor.mol2
cont_score_att_exp VDW Lennard-Jones potential attractive exponent 6
cont_score_rep_exp VDW Lennard-Jones potential repulsive exponent 12
cont_score_rep_rad_scale Scalar multiplier of the radii for the repulsive portion of the vdw energy component only 1.0
cont_score_use_dist_dep_dielectric Distance dependent dielectric switch yes
cont_score_dielectric Dielectric constant for the electrostatic term
cont_score_vdw_scale Scalar multiplier of vdw energy component 1
cont_score_vdw_scale Flag to turn off vdw portion of the scoring function when cont_score_vdw_scale=0 yes
cont_score_es_scale Scalar multiplier of electrostatic energy component 1.0
cont_score_turn_off_es Flag to turn off es portion of the scoring function when cont_score_es_scale = 0 yes

When using Continuous Score as a component scoring function in the Descriptor Score, the following parameters (questions asked in the DOCK input) may be needed.

2.11.5.2 Descriptor Continuous Score Parameters

Parameter Description Default Value
descriptor_cont_score_rec_filename File that contains receptor coordinates receptor.mol2
descriptor_cont_att_exp VDW Lennard-Jones potential attractive exponent 6
descriptor_cont_score_rep_exp VDW Lennard-Jones potential repulsive exponent 12
descriptor_cont_score_rep_rad_scale Scala multiplier of the radii for the repulsive portion of the VDW energy component only 1.0
descriptor_cont_score_use_dist_dep_dielectric Distance dependent dielectric switch yes
descriptor_cont_score_dielectric Dielectric constant for electrostatic term
descriptor_cont_score_vdw_scale Scalar multiplier of vdw energy component 1
descriptor_cont_score_turn_off_vdw Flag to turn off vdw portion of scoring function when descriptor_cont_score_vdw_scale = 0 yes
descriptor_cont_score_es_scale Scalar multiplier of es energy component 1
descriptor_cont_score_turn_off_es_scale Flag tot turn off es portion of scoring function when descriptor_cont_score_es_scale=0 yes

Continuous Score Output Components

Note: output components will have the prefix desc_ if the scoring function is employed through Descriptor Score

  • Continuous_Score
    #sum of the van der Waals and electrostatic interactions
  • Continuous_vdw_energy
    #van der Waals interaction between the ligand and receptor
  • Continuous_es_energy
    #electrostatic interaction between the ligand and receptor

RETURN TO TABLE OF CONTENTS

2.11.6. Zou GB/SA Score

The Zou GB/SA scoring function is a fast algorithm, the pairwise free energy model, for ligand binding affinity calculations. Specifically, a pairwise descreening approximation (Hawkins et al. Chem. Phys. Lett. 1995) is used in calculations of the electrostatic energy contribution. The algorithm also includes a procedure to account for the low dielectric region that might form between the ligand and the receptor during docking processes. It has been tested to obtain similar results compared with the grid-based free energy model but with much less computation efforts.

For more information on the scoring function and specifics of the implementation, see Liu et al. J. Phys. Chem. B. 2004. Use of the DOCK -v verbose flag will produce more detailed energy breakdowns than described below under Zou GB/SA Score Output Components.

2.11.6.1 Zou GB/SA Score Parameters

Parameter Description Default Value
gbsa_zou_score_primary Flag to perform Zou GB/SA scoring as the primary scoring function no
gbsa_zou_gb_grid_prefix The path to the pairwise GB grids gb_grid
gbsa_zou_sa_grid_prefix The path to the SA grids sa_grid
gbsa_zou_vdw_grid_prefix The path to the nrg grids, used for the vdw portion of the GB/SA calculation grid
gbsa_zou_screen_file GB parameter file for electrostatic screening. Its located in the parameter dir by default screen.in
gbsa_zou_solvent_dielectric The value for the solvent dielectric 78.300003

Zou GB/SA Score Output Components

  • Zou_GBSA_Score:
    #sum of the van der Waals, generalized born, solvent accessible surface area, and delta SA upon binding components
  • Zou_GBSA_vdw_energy:
    #van der Waals interaction between the ligand and receptor
  • Zou_GBSA_gb_energy:
    #generalized-born component
  • Zou_GBSA_sa_energy:
    #solvent accessible surface area
  • Zou_GBSA_delta_SAS_hp_energy:
    #change in the hydrophobic and total solvent accessible surface area upon ligand binding

RETURN TO TABLE OF CONTENTS

2.11.7. Hawkins GB/SA Score

The Hawkins GB/SA score is an implementation of the Molecular Mechanics Generalized Born Surface Area (MM-GBSA) method originally described by (Srinivasan et al. J. Am. Chem. Soc. 1998) and reviewed by (Kollman et al. Acc. Chem. Res. 2000). This particular implementation of MM-GBSA uses the pairwise GB solvation model reported by Hawkins, Cramer and Truhlar (Hawkins et al. Chem. Phys. Lett. 1995 , Hawkins et al. J. Phys. Chem. 1996) with parameters described by Tsui and Case (Tsui, et al. Biopolymers 2001). Solvent Accessible Surface Areas (SA) are computed using a C++ implementation of the Amber8 "icosahedra" algorithm.

The total interaction between the ligand and receptor are represented by unscaled Coulombic and Lennard jones energy terms (MM) plus the change (delta) in solvation (GBSA) where deltaGBSA = GBSA complex - (GBSA receptor + GBSA ligand). For any given species GBSA = Gpolar ( GB energy) + Gnonpolar (SA*0.00542 + 0.92). Note that if inner and outer dielectric constants are set to 1 (gas-phase) and 80 (water-phase), then GBSA terms are formally equivalent to free energies of hydration that can be directly compared with experimental data and useful for evaluating the accuracy of different partial charge models (Rizzo et al. J. Chem. Theory. Comput. 2006).

The Hawkins GB/SA score was intended to be used for "single-point" calculations and the current implementation is quite slow if energy minimization is performed at the same time. However, an energy minimization is highly recommended prior to GBSA single-point calculations given that scores can be very sensitive to receptor-ligand geometry. Use of the -v flag will yield separate GBSA terms for each species (complex, receptor, and ligand) and also include raw icosahedra SA values in units of angstroms squared. This scoring method requires that the vdw_AMBER_parm99.defn file be specified which contains GB radii and scale parameters for each atom type.

2.11.7.1 Hawkins GB/SA Score Parameters

Parameter Description Default Value
gbsa_hawkins_score_primary Flag to perform Hawkins GB/SA scoring as the primary scoring function no
gbsa_hawkins_score_rec_filename File that contains receptor coordinates receptor.mol2
gbsa_hawkins_score_solvent_dielectric Dielectric constant for solvent 78.5
gbsa_hawkins_use_salt_screen use salt screening no
gbsa_hawkins_score_salt_conc(M) When salt screen is turned on, salt concentration for solvent at molar concentration 0.0
gbsa_hawkins_score_gb_offset GB radius offset 0.09
gbsa_hawkins_score_cont_vdw_and_es Flag to determine whether vdw and es values will be calculated continuously or from a grid yes
gbsa_hawkins_score_vdw_att_exp VDW Lennard-Jones potential attractive exponent 6
gbsa_hawkins_score_vdw_rep_exp VDW Lennard-Jones potential repulsive exponent 12
grid_score_rep_rad_scale Scalar multiplier for the radii for the repulsive portion of the vdw energy component only, not specific to gbsa_hawkins_score 1.0
gbsa_hawkins_score_grid_prefix The prefix of the grid file containing the vdw values when gbsa_hawkins_score_grid_cont_vdw_and_es = no grid

Hawkins GB/SA Score Output Components

  • Hawkins_GBSA_Score:
    #sum of the van der Waals, electrostatics, generalized-born, solvent accessible surface area components
  • Hawkins_GBSA_vdw_energy:
    #van der Waals interaction between the ligand and receptor
  • Hawkins_GBSA_es_energy:
    #electrostatic interaction between the ligand and receptor
  • Hawkins_GBSA_gb_energy:
    #generalized-born component
  • Hawkins_GBSA_sa_energy:
    #solvent accessible surface area

RETURN TO TABLE OF CONTENTS

2.11.8. AMBER Score

The AMBER score provides a suite of functionality including: AMBER molecular mechanics, implicit solvation, and molecular dynamics simulation, receptor flexibility, and conjugate gradient minimization. The main disadvantages are more complicated input preparation and increased computational expense.

2.11.8.1. AMBER Score Binding Energy

AMBER score implements molecular mechanics implicit solvent simulations with the traditional all-atom AMBER force field (Pearlman et al. Comp. Phys. Commun. 1995) for protein atoms and the general AMBER force field (GAFF, Wang et al. J. Comp. Chem. 2004) for ligand atoms. The interaction between the ligand and the receptor is represented by electrostatic and van der Waals energy terms, and the solvation energy is calculated using a Generalized Born (GB) solvation model. The user has the option to choose one of the following GB models: (i) Hawkins, Cramer and Truhlar pairwise GB model with parameters described by Tsui and Case (gb=1) ( Tsui et al. Biopolymers 2001), (ii) Onufriev, Bashford and Case model, GB(OBC) (gb=2) ( Onufriev et al. Proteins 2004), and (iii) a modified GB(OBC) (gb=5) ( Onufriev et al. Proteins 2004). The surface area term is derived using a fast LCPO algorithm ( Weiser et al. J. Comp Chem 1999).

The AMBER score is calculated as:
E(Complex) - [ E(Receptor) + E(Ligand) ],
where E(Complex), E(Receptor), and E(Ligand) are, respectively, the internal energies of the complex, receptor, and ligand (all solvated) as approximated by the AMBER force field with a GB/SA solvation term as referenced above.

The calculation of each of these three energies uses the same protocol: minimization with a conjugate gradient method is followed by MD simulation (Langevin molecular dynamics at constant temperature), another minimization, and a final energy evaluation. The user can specify the number of pre-MD-minimization cycles, the number of MD simulation steps, and the number of post-MD-minimization cycles in the dock input file. During the final energy evaluation, a surface area term is included. The receptor energy is determined once. The AMBER score energy protocol is performed for every ligand and its corresponding complex. The protocol that is performed with all default input parameters was developed in the work of Graves et al., 2008.

2.11.8.2. AMBER Score Receptor Flexibility

AMBER score enables all or a part of the receptor to be flexible, in order to reproduce the so-called "induced-fit". The Cartesian coordinates of atoms that are flexible can be altered during the AMBER score energy protocol. The Cartesian coordinates of atoms that are not flexible cannot be altered during the AMBER score energy protocol. The flexible parts of the receptor-ligand complex are specified with a movable region Dock input file parameter. The movable region options are ligand, everything, nothing, distance, and NAB atom expression. For the ligand option, only the ligand is allowed to move during minimization and MD simulation. For the everything option, all the atoms in the receptor and the ligand are allowed to move. No minimization or MD simulation occurs for the nothing option. This is the only movable region option for which the ligand is not flexible during the AMBER score energy protocol. Consequently, close contacts can produce very large energies because the AMBER force field can be sensitive to the receptor-ligand geometry. However, the nothing option is the fastest type of AMBER scoring.

The distance movable region option selects residues that are allowed to move by receptor-ligand distance. If any atom in a receptor residue is within amber_score_movable_distance_cutoff angstroms of the ligand then the whole residue is selected. The ligand is represented by the active site sphere list, and thus the movable receptor residues are well defined and independent of any particular ligand molecule. The ligand is always movable. The selected residues are emitted with the -v verbose flag as a NAB atom expression.

The NAB atom expression movable region option is based on the program Nucleic Acid Builder (NAB). Every atom in a NAB molecule has a unique name. This name is composed of the strand name, the residue number and the atom name. A NAB atom expression is a character string that contains one or more patterns that match a set of atom names in a molecule. The two Dock input file parameters associated with this option specify the sets of atoms in the receptor and in the complex that are movable. To date our use of of this option has always specified that the set of complex movable atoms is the set of receptor movable atoms plus all atoms of the ligand; however, the two input parameters allow disparate usage. In DOCK a strand name is in fact a strand sequence number, and in a receptor-ligand complex, the ligand is always first in the sequence. Thus, a receptor molecule with two strands has strand names of "1" and "2"; in a corresponding receptor-ligand complex, the ligand (which is almost certainly single stranded) has strand name "1" and the receptor has strand names of "2" and "3".

NAB atom expressions contain three subexpressions separated by colons. They represent the strand, residue and atom parts of the atom expression. Not all three parts are required. An empty part selects all strands, residues or atoms depending on which parts are empty. Each subexpression consists of a comma separated list of patterns, or for the residue part, patterns and/or number ranges. Several atom expressions may be placed in a single character string by separating them with the vertical bar. Patterns in atom expressions are similar to Unix shell expressions. Each pattern is a sequence of one or more single character patterns and/or stars. The star matches zero or more occurrences of any single character. Each part of an atom expression is composed of a comma separated list of limited regular expressions, or in the case of the residue part, limited regular expressions and/or ranges. A range is a number or a pair of numbers separated by a dash. The NAB manual contains more information on atom expressions.

Here are some examples of NAB atom expressions:

  • :SER:
    #Select all atoms in any residue named SER. All three parts are present but both the strand and atom parts are empty. The atom expression :SER selects the same set of atoms.
  • ::C,CA,N,O
    #Select all atoms with names C, CA, N or O in all residues in all strands (typically the peptide backbone).
  • 1:1-10,13:CA,C,N
    #Select all atoms named CA,C,N in residues 1-10 and 13 in strand 1.
  • ::C*[^1]
    #The [^1] is an example of a negated character class. It matches any character in the last position except 1. In this case, it will match all the atoms starting with C, such as CA, CB, CG2, but not those ending with 1, such as CD1, CE1.
  • 2::|1:50,100:O*,N*
    #Select all atoms in strand 2. Select all atoms whose name starts with O and N in residue 50, 100 in strand 1. Note that the vertical bar separates the two strands
  • 4::|2::|1::
    #Select strand 4, 2 and 1.
  • :: or :
    #Select all atoms in the molecule.

2.11.8.3. AMBER Score Inputs

AMBER score requires many additional input files beyond those of other DOCK scoring functions. All the input files, such as the prmtop, frcmod, amber.pdb, etc. should be generated prior to running the DOCK AMBER score. Two perl scripts, prepare_amber.pl and prepare_rna_amber.pl, have been provided for this purpose. The script prepare_rna_amber.pl differs from prepare_amber.pl in that the former treats all nucleic acids as RNA whereas the latter treats them as DNA; in addition, prepare_rna_amber.pl supports the RNA specific features to neutralize to a total charge of zero and to solvate with water. The usage of these is, e.g.,
prepare_amber.pl ligand_mol2_file receptor_PDB_file
For example, if lig.mol2 is the name of the file that contains the ligand in mol2 format and rec.pdb is the name of the file that contains the receptor in PDB format then enter: prepare_amber.pl lig.mol2 rec.pdb
These scripts can process a mol2 file containing multiple ligands (usually the output from a previous DOCK run). See the section Amber Score Preparation Scripts and the tutorials for more information on how to use these scripts to generate the input files.

The prepare amber perl scripts call other scripts and programs, such as antechamber to calculate the AM1-BCC charges for the ligands, and tLEaP to assign the parm94 parameter set for protein atoms and the GAFF parameter set for ligand atoms. A metal ions library (parameters/leap/cmd/leaprc.dock.ions), a cofactor library (parameters/leap/cmd/leaprc.dock.cofactors), and a hook for a user library (parameters/leap/cmd/leaprc.dock.user), are automatically processed by tleap. The latter library provides an override mechanism for the global handling of common problems such as missing force field parameters. Detection of parmchk "ATTN, needs revision" messages for missing force field parameters and a local recovery mechanism for the frcmod files exists. The recovery process is described in the warning message and involves creating a file with the extension ".frcmod.revised file". With knowledge of and experience using AMBER one could create the input files manually; see the amberize scripts for the gory details. Note that the ligand_atom_file, which has the extension ".amber_score.mol2", must have a TRIPOS AMBER_SCORE_ID section for every ligand.

2.11.8.4. AMBER Score Outputs

The AMBER score output in the DOCK output contains energy terms for each species (complex, receptor, and ligand) such that the sum of the terms is equal to the score; in particular, note that the receptor and ligand values have been negated. Use of the DOCK -v verbose flag will produce detailed energy breakdowns; the formats and definitions of this information are discussed in the the NAB manual: Nucleic Acid Builder (NAB). The verbose output is best captured via UNIX shell file redirection as opposed to the DOCK -o flag.

The AMBER score output in the ligand_outfile_prefix_scored.mol2 file contains the ligand coordinates extracted from the final structure of the complex (i.e., the structure after the AMBER score energy protocol is performed). The ligand charges are from the ligand prmtop file. The ligand atom types are the normal ones from DOCK and are not the GAFF atom types used by AMBER score.

The AMBER score uses the following method for emitting all the final structures in their entirety. The AMBER score will create a file with the extension ".final_pose.amber.pdb" for every species (receptor, ligands, and complexes) that contains any movable region (regardless of whether that region actually exists or actually does move). Thus, for the distance, everything, and NAB atom expression options of the movable region, a file for the receptor (amber_score_receptor_file_prefix.final_pose.amber.pdb) and two for each ligand,complex pair (AMBER_SCORE_ID.final_pose.amber.pdb, amber_score_receptor_file_prefix.AMBER_SCORE_ID.final_pose.amber.pdb) will be created; for the nothing option of the movable region, no files will be created. In addition, if the -v verbose flag is present then the AMBER score will create an AMBER restart file with the extension ".final_pose.amber.restart" for every species (receptor, ligands, and complexes) that contains any movable region (regardless of whether that region actually exists or actually does move).

2.11.8.5. AMBER Score in Practice

Here is some general advice on the AMBER score. Since it is slower and more complicated than the other scoring functions, one should proceed carefully when using the AMBER score as the sole primary score. The most obvious use is to rescore, with the default amber_score input parameters, the ligands that have been already scored using one of the faster scoring functions. In fact, due to current software constraints it is not possible to use AMBER score as the primary score when orient_ligand=yes. In general, the input preparation for AMBER score is more involved than for the other scores. Effectively, one needs to generate input files for AMBER. In particular, examine the amberize*.out and *.log files for warnings and errors. (Note that the environment variable AMBERHOME should Not be defined when using AMBER score.) Experience using AMBER will help in understanding and judging the impact of the messages in these files. Correcting problems may involve substantial effort. This DOCK-Fans post discusses in detail the recovery options for failing ligands.

2.11.8.6 AMBER Score Parameters

Parameter Description Default Value
amber_score_primary Flag to perform amber scoring as the primary scoring function no
amber_receptor_file_prefix Prefix of the file that contains receptor coordinates that was used in the prepare_amber.pl input files preparation step. rec
amber_score_movable region The region that will be flexible during the scoring protocol.(Options: distance, everything, ligand, nab_atom_expression, nothing) ligand
receptor_site_file The file containing the receptor spheres that define the active site. This is not specific to amber score. This is active for amber_score_movable_region=distance. receptor.sph
amber_score_receptor_movable_atom_expr NAB atom expression defining the movable receptor region. This is active only for amber_score_movable_region=nab_atom_expression
amber_score_complex_movable_atom_expr NAB atom expression defining the movable complex region. This is active only for amber_score_movable_region=nab_atom_expression
amber_score_minimization_rmsgrad Minimization convergence criterion for the root-mean-square of the components of the gradient. 0.01
amber_score_before_md_minimization_cycles Number of conjugate gradient minimization cycles to be performed before MD. 100
amber_score_md_steps Number of Molecular Dynamics (MD) steps to be performed. 3000
amber_score_after_md_minimization_cycles Number of conjugate gradient minimization cycles to be performed after MD. 100
amber_score_gb_model GB model to be used 5
amber_score_nonbonded_cutoff Non-bonded cutoff in angstroms for the energy calculation. 18.0
amber_score_temperature Temperature at which MD should be performed. 300
amber_score_abort_on_unprepped_ligand Control over the behavior for an unprepped ligand. yes

AMBER Score Output Components

  • Amber_Score:
    #sum of the complex, receptor, and ligand energies
  • Amber_complex_energy:
    #energy component of the complex
  • Amber_receptor_energy:
    #energy component of the receptor
  • Amber_ligand_energy:
    #energy component of the ligand

RETURN TO TABLE OF CONTENTS

2.11.9. Footprint Score

The Footprint score (previously named Descriptor score in DOCK6.7) is a scoring function that calculates intermolecular hydrogen bonds, and footprint comparisons, in addition to standard intermolecular energies (VDW and ES). Descriptor score is now the name of a new function that allows for combinations of many different scoring functions to be used (see discussion below).

Intermolecular Energy

Intermolecular Energies (VDW, ES) are calculated the same way as in Continuous Score.

Hydrogen Bonds

A geometric definition of Hydrogen bonds is employed. We define 3 atoms XD, HD, and XA as the heavy atom donor, donated hydrogen, and heavy atom acceptor, respectively. There is a hydrogen bond present if the following two conditions are met:

(1) The distance between HD and XA is less than or equal to 2.5 angstroms;

(2) The angle defined by XD, HD, and XA is between 120 and 180 degrees.

Footprints

Footprints are a per-residue decomposition of interactions between the ligand and the receptor. This can be performed for all three terms VDW, ES, HB. See Balius et al. The method was validated using a testset of 780 structures. See Mukherjee et al.

Footprints Similarity

Two footprints can be compared in three ways: Standard Euclidean, Normalized Euclidean, Pearson Correlation.

Footprints are used to gauge how similar two poses or two molecules are to one-another. For applications to virtual screening applications a reference is required.

There are to choices for a reference:

(1) One can give a mol2 file containing a reference molecule, and footprints will be calculated.

(2) One can pass a text file containing VDW, ES, and H-bond footprints. The following is an example of format for the footprint reference text file:

####################################
###  Reference FP
####################################

 resname   resid     vdw_ref      es_ref  hb_ref
    GLY1       1   -0.000045   -0.000061       0
    GLU2       2   -0.000226    0.000032       0
    ALA3       3   -0.000174   -0.000093       0
    PRO4       4   -0.000266    0.000186       0
    ASN5       5   -0.001091    0.000538       0
    GLN6       6   -0.000612    0.000165       0
    ALA7       7   -0.001325   -0.000591       0
    LEU8       8   -0.002368    0.000552       0
    LEU9       9   -0.007224    0.000388       0
   ARG10      10   -0.007143   -0.008906       0
   ILE11      11   -0.004132    0.000615       0
   LEU12      12   -0.012233   -0.000404       0
   LYS13      13   -0.002511   -0.003366       0
   GLU14      14   -0.004349    0.005031       0
   THR15      15   -0.001461    0.000304       0


Residue selections

There are different choices for selection of residues:

(1) All residues.

(2) Residues chosen using a threshold (union of the sets of reference and pose). The VDW, ES, and HB footprints may have different residues chosen in this case.

(3) Selected residues.

Note that for (2) and (3) the remaining residue interaction may be placed in a remainder value included in the footprint.

2.11.9.1 Footprint Score Parameters

Parameter Description Default Value
footprint_similarity_score_primary Flag to perform footprint scoring as the primary scoring function no
fps_score_use_footprint_reference_mol2 Use a molecule to calculate footprint reference. no
fps_score_footprint_reference_mol2_filename Path to the reference mol2 file - only used when footprint reference mol2 is turned on. ligand_footprint.mol2
fps_score_use_footprint_reference_txt Use a pre-calculated footprint reference in text format. no
fps_score_footprint_reference_txt_filename Path to the reference txt file - only used when footprint reference txt is turned on. ligand_footprint.txt
fps_score_foot_compare_type Footprint similarity calculation methods (Options: Euclidean, Pearson). If Pearson, the correlation coefficient as the metric to compare the footprints. When the value is 1 then there is perfect agreement between the two footprints. When the value is 0 then there is poor agreement between the two footprints. If Euclidean, the Euclidean distance as the metric to compare the footprints. When the value is 0 then there is perfect agreement between the two footprints. As the agreement gets worse between the two footprints the value increases. Euclidean
fps_score_normalize_foot normalization is used only with Euclidean distance. no
fps_score_foot_comp_all_residue If yes all residues are used for calculating the footprint. yes
fps_score_choose_foot_range_type User can use to determine the type of the range of the footprint by either specifying a residue range or defining a threshold. If specify_range, the user chooses to use a residue range and all footprints will be evaluated only on this residue range. First residue id = 1 not 0. If threshold, the user chose to use a residue range that is defined by only residues that have magnitudes that exceed the specified thresholds. (Options: specify_range, threshold) specify_range
fps_score_vdw_threshold Specify threshold for van der Waals energy, when threshold is turned on. 1
fps_score_es_threshold Specify threshold for electrostatic energy, when threshold is turned on. 1
fps_score_hb_threshold specify threshold for hydrogen bonds (integers). 0.5 means that all none zeros are used, when threshold is turned on. 0.5
fps_score_use_remainder Interaction remainder is all remaining residues not included individually yes
fps_score_rec_filename File that contains receptor coordinates receptor.mol2
fps_score_att_exp VDW Lennard-Jones potential attractive exponent 6
fps_score_rep_exp VDW Lennard-Jones potential repulsive exponent 12
fps_score_rep_rad_scale Scalar multiplier of the radii for the repulsive portion of the VDW energy component ONLY 1
fps_score_use_distance_dependent_dielectric Distance dependent dielectric switch yes
fps_score_dielectric Dielectric constant for electrostatic term 4.0
fps_score_vdw_scale Scalar multiplier of vdw energy component 1
fps_score_es_scale Scalar multiplier of es energy component 1
fps_score_hb_scale Scalar multiplier of hb energy component 0
fps_score_internal_scale Scalar multiplier of internal energy component 0
fps_score_fp_vwd_scale Scalar multiplier of vdw footprint component 0
fps_score_fp_es_scale Scalar multiplier of es footprint component 0
fps_score_fp_hb_scale Scalar multiplier of hb footprint component 0

When using Footprint Score as a component scoring function in the Descriptor Score, the following parameters (questions asked in the DOCK input) may be needed.

2.11.9.2 Descriptor Footprint Score Parameters

Parameter Description Default Value
descriptor_fps_score_use_footprint_reference_mol2 Use a molecule to calculate footprint reference. no
descriptor_fps_score_footprint_reference_mol2_filename Path to the reference mol2 file - only used when footprint reference mol2 is turned on. ligand_footprint.mol2
descriptor_fps_score_use_footprint_reference_txt Use a pre-calculated footprint reference in text format. no
descriptor_fps_score_footprint_reference_txt_filename Path to the reference txt file - only used when footprint reference txt is turned on. ligand_footprint.txt
descriptor_fps_score_foot_compare_type Footprint similarity calculation methods (Options: Euclidean, Pearson). If Pearson, the correlation coefficient as the metric to compare the footprints. When the value is 1 then there is perfect agreement between the two footprints. When the value is 0 then there is poor agreement between the two footprints. If Euclidean, the Euclidean distance as the metric to compare the footprints. When the value is 0 then there is perfect agreement between the two footprints. As the agreement gets worse between the two footprints the value increases. Euclidean
descriptor_fps_score_normalize_foot normalization is used only with Euclidean distance. no
descriptor_fps_score_foot_comp_all_residue If yes all residues are used for calculating the footprint. yes
descriptor_fps_score_choose_foot_range_type User can use to determine the type of the range of the footprint by either specifying a residue range or defining a threshold. If specify_range, the user chooses to use a residue range and all footprints will be evaluated only on this residue range. First residue id = 1 not 0. If threshold, the user chose to use a residue range that is defined by only residues that have magnitudes that exceed the specified thresholds. (Options: specify_range, threshold) specify_range
descriptor_fps_score_vdw_threshold Specify threshold for van der Waals energy, when threshold is turned on. 1
descriptor_fps_score_es_threshold Specify threshold for electrostatic energy, when threshold is turned on. 1
descriptor_fps_score_hb_threshold specify threshold for hydrogen bonds (integers). 0.5 means that all none zeros are used, when threshold is turned on. 0.5
descriptor_fps_score_use_remainder Interaction remainder is all remaining residues not included individually yes
descriptor_fps_score_rec_filename File that contains receptor coordinates receptor.mol2
descriptor_fps_score_att_exp VDW Lennard-Jones potential attractive exponent 6
descriptor_fps_score_rep_exp VDW Lennard-Jones potential repulsive exponent 12
descriptor_fps_score_rep_rad_scale Scalar multiplier of the radii for the repulsive portion of the VDW energy component ONLY 1
descriptor_fps_score_use_distance_dependent_dielectric Distance dependent dielectric switch yes
descriptor_fps_score_dielectric Dielectric constant for electrostatic term 4.0
descriptor_fps_score_vdw_scale Scalar multiplier of vdw energy component 1
descriptor_fps_score_es_scale Scalar multiplier of es energy component 1
descriptor_fps_score_hb_scale Scalar multiplier of hb energy component 0
descriptor_fps_score_internal_scale Scalar multiplier of internal energy component 0
descriptor_fps_score_fp_vwd_scale Scalar multiplier of vdw footprint component 0
descriptor_fps_score_fp_es_scale Scalar multiplier of es footprint component 0
descriptor_fps_score_fp_hb_scale Scalar multiplier of hb footprint component 0

Footprint Similarity Score Output Components

Note: output components will have the prefix desc_ if the scoring function is employed through Descriptor Score

  • Footprint_Similarity_Score:
    #sum of the van der Waals, electrostatic, and hbond footprint similarity scores
  • FPS_vdw_energy:
    #van der Waals interaction between the ligand and receptor
  • FPS_es_energy:
    #electrostatic interaction between the ligand and receptor
  • FPS_num_hbond:
    #number of hydrogen-bonds
  • FPS_vdw+es_energy:
    #sum of the van der Waals and electrostatic components
  • FPS_vdw_fps:
    #van der Waals footprint similarity score
  • FPS_es_fps:
    #electrostatic footprint similarity score
  • FPS_hb_fps:
    #hbond footprint similarity score
  • FPS_vdw_fp_numres:
    #number of residues in the receptor considered during the calculation
  • FPS_es_fp_numres:
    #number of residues in the receptor considered during the calculation
  • FPS_hb_fp_numres:
    #number of residues in the receptor considered during the calculation

RETURN TO TABLE OF CONTENTS

2.11.10. MultiGrid Score

The MultiGrid Score is similar to the Footprint Score described in the previous section, except that in the case of the Multi-Grid Score, the pair-wise interaction energies are computed over multiple grids rather than in Cartesian space. This is done to improve the tractability of FPS calculations as well as to make it simple to combine FPS and standard Grid Score. If the multiple grids are prepared as recommended than the sum of the interactions with each grid should equal the interaction of a standard DOCK grid representing the entire target. By default MultiGrid score will equal the sum of the interactions with all grids plus a FPS component generated by treating each grid as a protein residue. User defined scaling factors allow MultiGrid score to be set to equal Grid score, FPS score or any combination thereof. Generally, "important" receptor residues are identified before-hand based on the magnitude of their interaction with the reference ligand, then a unique grid is generated to represent each of those residues. Finally, a "remainder" grid is generated to represent all remaining receptor residues. The scoring function itself will then calculate intermolecular VDW and ES energies for the reference ligand and pose ligand on each of the grids (also called footprints), then it will calculate the footprint similarity using either the Standard Euclidean, Normalized Euclidean, or Pearson Correlation similarity metrics as described above.

To aid in the selection of important residues and automate the creation of grids, a wrapper python script has been included called "multigrid_fp_gen.py".

Grid Generation

Here is an example script for generating the grids:

#############################################################################
dock6 -i important_residues.in -o important_residues.out
multigrid_fp_gen.py rec.mol2 resid grid.in `grep -A 1 range_union important_residues.out | sed -e'/range_union/d' -e'/--/d' -e's/ //g' | tr ',' '\n' | sort -nu`
#############################################################################

This script can be found in the test suite (install/test/fp_multigrid_generation/getrange_mkgrids). In this script dock is run using Footprint Score to obtain the important residues, and then the dock output file is processed with grep, sed, and sort to give the range in the format needed by the python grid generation wrapper script.

Several files are needed including a box.pdb file and a grid input file to generate the grids, for example:

#############################################################################
compute_grids yes
grid_spacing 0.4
output_molecule yes
contact_score no
chemical_score no
energy_score yes
energy_cutoff_distance 999
atom_model a
attractive_exponent 6
repulsive_exponent 9
distance_dielectric yes
dielectric_factor 4
bump_filter yes
bump_overlap 0.75
receptor_file ./temp.mol2
box_file ./box.pdb
vdw_definition_file ../../../parameters/vdw_AMBER_parm99.defn
score_grid_prefix ./temp.rec
receptor_out_file ./temp.rec.grid.mol2
#############################################################################

This grid program produces the temp grid files which are then renamed by the python script.

2.11.10.1 MulitGrid FPS Score Parameters

Parameter Description Default Value
multigrid_score_primary Flag to perform MultiGrid FPS scoring as the primary scoring function no
multigrid_score_rep_rad_scale Scale the VDW repulsive exponent only by this amount. 1.0
multigrid_score_vdw_scale Scale both VDW terms in the molecular mechanics interaction function by this amount. 1.0
multigrid_score_es_scale Scale both ES terms in the molecular mechanics interaction function by this amount. 20
multigrid_score_number_of_grids The number of grids to be used, which typically includes N selected grids plus one remainder grid. 20
multigrid_score_grid_prefix0 Provide prefixes to identify the grids. Note that the first grid starts at '0'. The last grid should be the remainder grid. This must be done for each grid. multigrid0
multigrid_score_individual_rec_ensemble Flag for individual receptor (standard) or multiple receptor (not implemented yet). no
multigrid_score_weights_text Flag for providing a textfile as input for the reference footprint. no
multigrid_score_footprint_text Name of the reference footprint input text file, when multigrid_score_weight_text is turned on. reference.txt
multigrid_score_fp_ref_mol Flag for providing a MOL2 as input for the reference footprint. no
multigrid_score_footprint_ref Name of the reference footprint input MOL2 file, when multigrid_score_fp_ref_mol is turned on. reference.mol2
multigrid_score_foot_compare_type Footprint similarity calculation methods (Options: Euclidean, Pearson). If Pearson, the correlation coefficient as the metric to compare the footprints. When the value is 1 then there is perfect agreement between the two footprints. When the value is 0 then there is poor agreement between the two footprints. If Euclidean, the Euclidean distance as the metric to compare the footprints. When the value is 0 then there is perfect agreement between the two footprints. As the agreement gets worse between the two footprints the value increases. Euclidean
multigrid_score_normalize_foot normalization is used only with Euclidean distance. no
multigrid_score_vdw_euc_scale Scaling factor for VDW term. when using euclidean 1.0
multigrid_score_es_euc_scale Scaling factor for ES term when using euclidean 1.0
multigrid_score_vdw_norm_scale Scaling factor for VDW term. euclidean and normalize 10.0
multigrid_score_es_norm_scale Scaling factor for ES term. Flags if using Pearson Correlation similarity metric for footprint comparison. 10.0
multigrid_score_vdw_cor_scale Scaling factor for VDW term -10.0
multigrid_score_es_cor_scale Scaling factor for ES term -10.0

When using MultiGrid FPS Score as a component scoring function in the Descriptor Score, the following parameters (questions asked in the DOCK input) may be needed.

Parameter Description Default Value
descriptor_multigrid_score_rep_rad_scale Scale the VDW repulsive exponent only by this amount. 1.0
descriptor_multigrid_score_vdw_scale Scale both VDW terms in the molecular mechanics interaction function by this amount. 1.0
descriptor_multigrid_score_es_scale The number of grids to be used, which typically includes N selected grids plus one remainder grid. 20
descriptor_multigrid_score_number_of_grids Path to the reference txt file - only used when footprint reference txt is turned on. ligand_footprint.txt
descriptor_multigrid_score_grid_prefix0 Provide prefixes to identify the grids. Note that the first grid starts at '0'. The last grid should be the remainder grid. This must be done for each grid. multigrid0
descriptor_multigrid_score_individual_rec_ensemble Flag for individual receptor (standard) or multiple receptor (not implemented yet). no
descriptor_multigrid_score_weights_text Flag for providing a textfile as input for the reference footprint. no
descriptor_multigrid_score_footprint_text Name of the reference footprint input text file, when multigrid_score_weight_text is turned on. reference.txt
descriptor_multigrid_score_fp_ref_mol Flag for providing a MOL2 as input for the reference footprint. no
descriptor_multigrid_score_footprint_ref Name of the reference footprint input MOL2 file, when multigrid_score_fp_ref_mol is turned on. reference.mol2
descriptor_multigrid_score_foot_compare_type Footprint similarity calculation methods (Options: Euclidean, Pearson). If Pearson, the correlation coefficient as the metric to compare the footprints. When the value is 1 then there is perfect agreement between the two footprints. When the value is 0 then there is poor agreement between the two footprints. If Euclidean, the Euclidean distance as the metric to compare the footprints. When the value is 0 then there is perfect agreement between the two footprints. As the agreement gets worse between the two footprints the value increases. Euclidean
descriptor_multigrid_score_normalize_foot normalization is used only with Euclidean distance. no
descriptor_multigrid_score_vdw_euc_scale Scaling factor for VDW term. when using euclidean 1.0
descriptor_multigrid_score_es_euc_scale Scaling factor for ES term when using euclidean 1.0
descriptor_multigrid_score_vdw_norm_scale Scaling factor for VDW term. euclidean and normalize 10.0
descriptor_multigrid_score_es_norm_scale Scaling factor for ES term. Flags if using Pearson Correlation similarity metric for footprint comparison. 10.0
descriptor_multigrid_score_vdw_cor_scale Scaling factor for VDW term -10.0
descriptor_multigrid_score_es_cor_scale Scaling factor for ES term -10.0

MultiGrid Score Output Components

Note: output components will have the prefix desc_ if the scoring function is employed through Descriptor Score

  • MultiGrid_Score:
    #sum of the van der Waals, electrostatic energies, van der Waals, and electrostatic footprint similarity scores
  • MGS_vdw_energy:
    #van der Waals interaction between the ligand and grid
  • MGS_es_energy:
    #electrostatic interaction between the ligand and grid
  • MGS_vdw+es_energy:
    #sum of the van der Waals and electrostatic components
  • MGS_vdw_fps:
    #van der Waals footprint similarity score
  • MGS_es_fps:
    #electrostatic footprint similarity score
  • MGS_vdw+es_fps:
    #sum of the van der Waals and electrostatic footprint similarity scores

RETURN TO TABLE OF CONTENTS

2.11.11. Pharmacophore Matching Similarity Score

The Pharmacophore Matching Similarity score is a scoring function that calculates the level of pharmacophore overlap between a reference molecule and a candidate molecule in three dimensional space.

Pharmacophore Features

Pharmacophore features are derived from the pharmacophore type of atoms in the molecule defined by the SYBYL atom type and atom environment. Definitions of pharmacophore features used in this scoring function include: 1) hydrophobic (PHO), 2) hydrogen bond donor (HBD), 3) hydrogen bond acceptor (HBA), 4) aromatic ring (ARO), 5) nonaromatic ring (RNG), 6) positively charged (POS), and 7) negatively charged (NEG) features. See Jiang et al.

Pharmacophore Model

A pharmacophore model includes a set of pharmacophore points with various pharmacophore features. Each pharmacophore point is recorded by the center of the point (coordinate) and the directionality (directional vector).

Pharmacophore Matching Similarity

Pharmacophore Matching Similarity (FMS) evaluates the level of overlap between two pharmacophore models. A candidate pharmacophore model is generated for each candidate molecule on the fly during docking. A reference is required for similarity calculations and can be provided in either of the two following formats.

(1) Provide a mol2 file containing a reference molecule that can be employed to generate a reference pharmacophore model.

(2) Provide a text file containing a list of pharmacophore points which defines a reference pharmacophore model. The format of the text input file is shown in the following example:

# ################################ #
# ###       Reference Ph4      ### #
# ################################ #
ph4name ph4id   coox       cooy     cooz       vecx      vecy      vecz      radius
ARO         1   20.6703   -0.4227   53.2458    0.2157   -0.7128   -0.6674    1.4132
ARO         2   22.5789   -1.1186   54.6003    0.2146   -0.7114   -0.6692    1.4019
ARO         3   27.1081    1.1912   53.3015   -0.0350    0.0311    0.9989    1.4067
HBA         4   18.9762    2.4878   48.5516   -0.0011   -0.1939   -0.9810    1.0000
HBA         5   19.6220    1.2062   51.1414   -0.9055    0.4234    0.0278    1.0000
PHO         6   28.8423   -1.0178   53.4316    1.0000    0.0000    0.0000    1.0000
PHO         7   29.5539   -2.0013   53.4979    1.0000    0.0000    0.0000    1.0000
HBD         8   23.7558    1.4882   52.9105   -0.5368    0.7799   -0.3219    1.0000
HBA         9   23.9348   -1.0207   54.9311    0.9673    0.0615    0.2462    1.0000
HBA        10   21.7564   -2.0218   55.2984   -0.5723   -0.6447    0.5068    1.0000
HBA        11   17.8583   -0.6662   52.6137   -0.4954   -0.8663    0.0639    1.0000
HBA        12   15.0957    0.1565   53.3356    0.3976    0.3143    0.8621    1.0000


The functional form for quantifying the pharmacophore overlap in a virtual screening experiment using DOCK, termed pharmacophore matching similarity (FMS), is as follows.

Here, k and X are constant parameters, n stands for the total number of matches, and N is the number of pharmacophore points in the reference pharmacophore. δ+Aj represents residual of the best match to the reference pharmacophore point Aj . See Jiang et al. for a detailed description of the matching protocols.

When using Pharmacophore Matching Similarity (FMS) Score as a separate scoring function, the following parameters (questions asked in the DOCK input) may be needed. In some cases, parameters are only needed (questions will only be asked) if the parameter above is enforced. These parameters are indicated below by additional indentation.

2.11.11. Pharmacophore Matching Similarity Score Parameters

Parameter Description Default Value
pharmacophore_score_primary Flag to perform FMS scoring as the primary scoring function no
fms_score_use_ref_mol2 Use a molecule to calculate pharmacophore reference no
fms_score_ref_mol2_filename molecule reference input file name. Ph4.mol2
fms_score_use_ref_txt Use a text format pharmacophore reference. no
fms_score_ref_txt_filename text reference input file name. Ph4.txt
fms_score_write_reference_pharmacophore_mol2 Flag to write the reference pharmacophore model as a mol2 output file. no
fms_score_write_reference_ph4_txt Flag to write the reference pharmacophore model as a txt output file. no
fms_score_reference_output_mol2_filename reference pharmacophore mol2 output file name. ref_ph4.mol2
fms_score_reference_output_txt_filename Reference pharmacophore txt output file name. ref_ph4.txt
fms_score_write_candidate_pharmacophore Flag to write the candidate pharmacophore model as a mol2 output file. no
fms_score_candidate_output_filename Candidate pharmacophore output file name cad_ph4.mol2
fms_score_write_matched_pharmacophore Flag to write the matched pharmacophore model as a mol2 output file. The matched pharmacophore model, which is consist of pharmacophore points well-matched to any reference pharmacophore point, is a subset of the candidate pharmacophore model. no
fms_score_matched_output_filename matched pharmacophore output file name. mat_ph4.mol2
fms_score_compare_type Flag to determine comparison method between reference and candidate ph4. If overlap user is using a ligand-based reference for computing the FMS. When the value is 0 then there is a perfect overlap. When the value is negative then you have multi-matched ph4. When the value is positive then you have matches with residual. If compatible (This is under development and not currently available) user is using a receptor based reference for computing the FMS. When the value is X then there is a perfect overlap. When the value is Y then you have multi-matched ph4. When the value is Z then you have matches with residual.(Options: overlap, compatible) overlap
fms_score_full_match Flag to determine if full match is desired. Currently only full match is considered. yes
fms_score_match_rate_weight Specify the constant parameter k (weight on the match rate term) in FMS score 5
fms_score_match_proj_cutoff Specify the scalar projection cutoff σ in the pharmacophore matching protocol. Default value cos(45 ° ) ≈ 0.7071 corresponds to a vector angle cutoff of 45 ° 0.7071
fms_score_max_score Specify the FMS score value for pharmacophore model pairs with no matches. This maximum FMS score depends on k, r and σ. 20

When using Pharmacophore Matching Similarity Score as a component scoring function in the Descriptor Score, the following parameters (questions asked in the DOCK input) may be needed.

Parameter Description Default Value
descriptor_fms_score_use_ref_mol2 Use a molecule to calculate pharmacophore reference no
descriptor_fms_score_ref_mol2_filename molecule reference input file name. Ph4.mol2
descriptor_fms_score_use_ref_txt Use a text format pharmacophore reference. no
descriptor_fms_score_ref_txt_filename text reference input file name. Ph4.txt
descriptor_fms_score_write_reference_pharmacophore_mol2 Flag to write the reference pharmacophore model as a mol2 output file. no
descriptor_fms_score_write_reference_ph4_txt Flag to write the reference pharmacophore model as a txt output file. no
descriptor_fms_score_reference_output_mol2_filename reference pharmacophore mol2 output file name. ref_ph4.mol2
descriptor_fms_score_reference_output_txt_filename Reference pharmacophore txt output file name. ref_ph4.txt
descriptor_fms_score_write_candidate_pharmacophore Flag to write the candidate pharmacophore model as a mol2 output file. no
descriptor_fms_score_candidate_output_filename Candidate pharmacophore output file name cad_ph4.mol2
descriptor_fms_score_write_matched_pharmacophore Flag to write the matched pharmacophore model as a mol2 output file. The matched pharmacophore model, which is consist of pharmacophore points well-matched to any reference pharmacophore point, is a subset of the candidate pharmacophore model. no
descriptor_fms_score_matched_output_filename matched pharmacophore output file name. mat_ph4.mol2
descriptor_fms_score_compare_type Flag to determine comparison method between reference and candidate ph4. If overlap user is using a ligand-based reference for computing the FMS. When the value is 0 then there is a perfect overlap. When the value is negative then you have multi-matched ph4. When the value is positive then you have matches with residual. If compatible (This is under development and not currently available) user is using a receptor based reference for computing the FMS. When the value is X then there is a perfect overlap. When the value is Y then you have multi-matched ph4. When the value is Z then you have matches with residual.(Options: overlap, compatible) overlap
descriptor_fms_score_full_match Flag to determine if full match is desired. Currently only full match is considered. yes
descriptor_fms_score_match_rate_weight Specify the constant parameter k (weight on the match rate term) in FMS score 5
descriptor_fms_score_match_proj_cutoff Specify the scalar projection cutoff σ in the pharmacophore matching protocol. Default value cos(45 ° ) ≈ 0.7071 corresponds to a vector angle cutoff of 45 ° 0.7071
descriptor_fms_score_max_score Specify the FMS score value for pharmacophore model pairs with no matches. This maximum FMS score depends on k, r and σ. 20

Pharmacophore Score Output Components

Note: output components will have the prefix desc_ if the scoring function is employed through Descriptor Score

  • Pharmacophore_Score:
    #pharmacophore similarity score
  • FMS_num_match_tot:
    #total number of pharmacophore matches
  • FMS_max_match_ref:
    #maximum number of pharmacophores in the reference
  • FMS_max_match_mol:
    #maximum number of pharmacophores in the candidate
  • FMS_max_match_rate:
    #pharamcophore matching rate
  • FMS_match_resid:
    #pharmacophore matching residual
  • FMS_num_hydrophobic_matched:
    #number of hydrophobic matches between the reference and candidate
  • FMS_num_donor_matched:
    #number of hydrogen-bond donor matches between the reference and candidate
  • FMS_num_acceptor_matched:
    #number of hydrogen-bond acceptor matches between the reference and candidate
  • FMS_num_aromatic_matched:
    #number of aromatic matches between the reference and candidate
  • FMS_num_aroAcc_matched:
    #number of aromatic ring with hydrogen bond acceptors matches between the reference and candidate
  • FMS_num_positive_matched:
    #number of positive charged species matches between the reference and candidate
  • FMS_num_negative_matched:
    #number of negatively charged species matches between the reference and candidate
  • FMS_num_ring_matched:
    #number of ring matches between the reference and candidate

RETURN TO TABLE OF CONTENTS

2.11.12. Internal Energy Score

The internal energy of a molecule can now be used as a scoring function, which allows structures to be minimized by the simplex minimizer. This means conformations of ligands can be generated without protein influence, and ligands can be constructed using de novo design in the same way. The internal energy scoring function (also called "simple score") should be used to score molecules without orienting. One main use for this function is to perform conformational expansion of small molecules about a rigid segment.

See the 2.10. Internal Energy Calculation section for a discussion of a related function, in which the internal energy is used as a dependent function alongside other scoring functions, rather than the standalone function that is discussed here.

2.11.12.1 Internal Energy Score Parameters

Parameter Description Default Value
internal_energy_score_primary Flag to perform internal energy as the primary scoring function no
internal_energy_rep_exp The VDW exponent only when use internal energy is turned on 12

2.11.13. SASA Score

The SASA score provides the user the ability to calculate the percent exposure of a ligand. In addition to the percent exposure, the code calculates the percentage of the hydrophobic portion of the ligand and the receptor that is buried in the pocket.

The surface area is calculated using the same implementation as the Hawkins GB/SA.

Note: This is used for post-processing and should be used as a single-point calculation only.

2.11.13.1. SASA Score Parameters

Parameter Description Default Value
sasa_score_primary Flag to perform sasa scoring as the primary scoring function no
sasa_score_rec_filename Receptor file for SASA evaluation receptor.mol2

SASA Score Output Components

  • SASA_Score:
    #percentage of ligand exposed times 100
  • SASA_com_lig_sasa_tot:
    #solvent accessible surface area of the ligand in the complex
  • SASA_lig_sasa_tot:
    #solvent accessible surface area of the ligand
  • SASA_%_phobic_lig_exposed:
    #percentage of the hydrophobic atoms of ligand exposed times 100
  • SASA_com_lig_sasa_phobic:
    #solvent accessible surface area of the ligand's hydrophobic atoms in the complex
  • SASA_lig_sasa_phobic
    #solvent accessible surface area of the ligand's hydrophobic atoms
  • SASA_%_philic_lig_exposed:
    #percentage of the hydrophilic atoms of ligand exposed times 100
  • SASA_com_lig_sasa_philic:
    #solvent accessible surface area of the ligand's hydrophilic atoms in the complex
  • SASA_lig_sasa_philic:
    #solvent accessible surface area of the ligand's hydrophilic atoms
  • SASA_%_other_lig_exposed:
    #percentage of the "other" atoms of ligand exposed times 100
    ##other is defined as atoms not classified as hydrophobic or hydrophilic according to DOCK
  • SASA_com_lig_sasa_other:
    #solvent accessible surface area of the ligand's "other" atoms in the complex
  • SASA_lig_sasa_other:
    #solvent accessible surface area of the ligand's "other" atoms

2.11.14. GIST Score

Grid inhomogeneous solvation theory (GIST) Score.
Implementation is unpublished. Based on DOCK 3.7 implementations (Balius, PNAS, Stein, UCSF Thesis chapter, 2021). (This scoring method is still in development, so use with caution ).
GIST
GIST uses the ligand atoms and their atomic radii to calculate which voxels are displaced. Voxels are only contribute once per pose even if they are displaced by multiple atoms. This may be used for single point and minimization. It will work for docking with Anchor-and-grow but will be slow. (This is currently incompatible with HDB search as implemented in DOCK 6 because we have not dealt with issues of double counting, although in DOCK 3.7, we have an implementation that avoids double counting).
Blurry GIST
Blurry GIST uses the ligand atom and the atomic radius to calculate the displacement. It uses a gaussian to scale the voxels by proximity to the atomic center. We can then sum up voxels without concerns of double counting. Voxels located in areas with high atomic overlap will have a higher weight then areas of low overlap by design.
Precomputing blurry displacement.
We can approximate the Blurry GIST result by using tri-linear interpolation performed on a GIST grid where the displacement has been precalculated. This precalculated grid is generated by placing a probe sphere on each grid point summing up the displaced voxels using a gaussian weighting from the center. These new grids will be smaller than the original grids (we only use precomputed points that to not go outside the original grid). (The python program to calculate this is called dx-gist_precalculate_sphere_gausian.py and is available in on github: https://github.com/tbalius/GIST_DX_tools).
Caveat.
GIST score only calculates receptor desolvation energies. To include ligand-receptor sterics (vdw) and electrostatics, users should combine GIST score with DOCK 3.5 score or Grid score in descriptor score (see below).

2.11.14.1. GIST Score Parameters

gist_score_primary Yes or no. Use gist as the scoring function. no
gist_score_att_exp The attactive van der Waals exponent. This is used to calculate atomic radius. 6
gist_score_rep_exp The repulsive van der Waals exponent. This is used to calculate atomic radius. 12
gist_score_gist_scale The value to scale the gist energies by. GIST quantifies how favoarable a water is a voxel. If the voxel is favorable, then it is unfavorable to displace and vise versa. So this value should be negative. -1
gist_score_gist_type See discussion above. There are three options: trilinear, displace, and blurry_displace. trilinear
gist_score_grid_file GIST grid. For trilinear option then use precomputed displacement grid. grid.dx
gist_score_blurry_gist_div Sigma determines the sharpness of the peak of the Gaussian. Sigma equals the radius divided by this value(D): σ_a = r_a / D. This parameter is only used for blurry displacement. 2.0
gist_score_Hydrogen_grid_file Only asked if trilinear option is selected. Use precomputed displacement grid computed with probe with a smaller radius. grid_h.dx

RETURN TO TABLE OF CONTENTS

2.11.15. Descriptor Score

The Descriptor Score is a newly developed scoring function that is a linear combination of scoring functions that allows users to guide sampling and evaluate docked molecules with one or more scoring criteria that emphasize different properties of the molecule.

Note: Users should be aware that in versions 6.7 and earlier of DOCK, Descriptor Score was only used for Footprint Score.

Descriptor Score Formula

Descriptor score, as defined above, is a linear combination of various existing and newly developed scoring functions of DOCK, in the following formula:

Here the total score can consist of different scoring functions including grid-based score, multigrid FPS score, continuous score, footprint score, pharmacophore matching similarity score, Tanimoto score, Hungarian matching similarity score and volume overlap score.

These scoring functions can be categorized into two groups, interaction-based scoring functions and similarity-based scoring functions.

Interaction-based scoring functions include grid score, multigrid FPS score, continuous score, and footprint score. These four scoring functions report the interaction energy between the ligand and the receptor in either Cartesian space (continuous score and footprint score) or grid space (grid score and multigrid FPS score), thus the program does not allow users to combine scoring functions from separate groups. Users can however combine continuous score and footprint score. (Grid score is inherently computed in multigrid FPS score, thus these two scores are typically not combined). Not choosing any of the interaction-based scoring function is also an option of using descriptor score.

Similarity-based scoring functions include pharmacophore matching similarity score, Tanimoto score, Hungarian matching similarity score, and volume overlap score. This set of scoring functions always require a reference for comparison, and user can choose any number of scoring functions from this group for the desired descriptor score formula.

Descriptor Score Weights

Choosing the appropriate weights for different component scoring functions in descriptor score is essential for obtaining desired DOCK results. Due to the numerous combination of scoring functions as well as properties of different ligands and receptors, it is difficult to construct a set of parameters that performs well for all systems. A general guideline for weight selections is to choose weights based on ranges of scores of different scoring functions so that the products of the weight and score for each component scoring function are roughly in the same range; this ensures that different properties are equally emphasized.

The scores of Tanimoto and volume overlap score range from 0 to 1, whereby 1 is the best and 0 is the worst score, therefore, negative numbers should be utilized for the weights when these scoring functions are employed so that their scores remain consistent with the DOCK rank ordering that reports the lowest scored molecule as the best molecule.

As an example, if grid score and volume overlap were employed together, the weights can be set to 1 for grid score and -50 for volume overlap score. The idea here is that while the range of grid score is from negative infinity to infinity, a grid score of approximately -50 kcal/mol is generally considered a good score and the range of volume overlap score is 0 to 1 with 1 being perfect overlap. Thus, the weight for volume overlap score should be negative to guarantee that it follows the same trend as grid score. On the other hand, advance users may choose to use positive weights for descriptors (i.e. volume overlap and Tanimoto score) if the goal is to steer the search away from the reference molecule᾿s volume or chemical space.

However, the optimal set of weights to use for different combinations of scoring functions is an active area of research and users should explore different values to achieve optimal DOCK performances for specific purposes.

2.11.15 Descriptor Score Parameters

Parameter Description Default Value
descriptor_score_primary Flag to perform descriptor scoring as the primary scoring function no
descriptor_use_grid_score Flag to use grid score as a component of descriptor score. yes
descriptor_use_multigrid_score Flag to use multigrid FPS score as a component of descriptor score. yes
descriptor_use_continuous_score Flag to use continuous score as a component of descriptor score. yes
descriptor_use_footprint_similarity Flag to use footprint score score as a component of descriptor score. yes
descriptor_use_pharmacophore_score Flag to use pharmacophore score as a component of descriptor score. no
descriptor_use_tanimoto Flag to use Tanimoto score as a component of descriptor score. no
descriptor_use_hungarian Flag to use Hungarian score as a component of descriptor score. no
descriptor_use_volume_overlap Flag to use volume overlap score as a component of descriptor score. no
descriptor_use_gist Flag to use gist score as a component of descriptor score. no
descriptor_use_dock3.5 Flag to use chemgrid score (and its components) as part of descriptor score. no

Note that for the reasons discussed in the previous section, the only allowed combination among the first four scoring function is continuous score with footprint score, or each of them can only be used together with scoring functions in the second group. Thus, depending on the previous input parameters, some scoring functions may automatically not to be used, thus not asked by the program. From pharmacophore score on, all the scoring functions will always appear in the decision tree regardless previous choices of scoring functions to include in the descriptor score.

The second section of parameters for the descriptor score is specific parameters for the scoring functions chosen to be components of the descriptor score. Using grid score as an example, if grid score is chosen to be part of the descriptor score, following parameters will need to be determined.

  • descriptor_grid_score_rep_rad_scale [1] ():
  • descriptor_grid_score_vdw_scale [1] ():
  • descriptor_grid_score_es_scale [1] ():
  • descriptor_grid_score_grid_prefix [grid] ():

Please refer to sections of each scoring function for detailed discussion of parameters for any specific scoring function (grid-based score, continuous score, footprint score, multigrid FPS score and pharmacophore matching similarity score).

The third section of parameters for the descriptor score is the weights for all the selected component scoring functions.

Parameter Description Default Value
descriptor_weight_grid_score Weight for grid score 1
descriptor_weight_multigrid_score Weight for multigrid score 1
descriptor_weight_cont_score Weight for continuous score 1
descriptor_weight_fps_score Weight for footprint similarity score 1
descriptor_weight_pharmacophore_score Weight for pharmacophore matching score 1
descriptor_weight_fingerprint_tanimoto Weight for Tanimoto score 1
descriptor_weight_hms_score Weight for Hungarian matching similarity score 1
descriptor_weight_volume_overlap_score Weight for volume overlap score -1
descriptor_weight_dock_3.5_score Weight for dock_3.5 score 1
descriptor_weight_gist_score Weight for gist score. Pay attention to the internal weight (if both are negative one that is going to give a weight of +1). -1

At the end of input parameters of descriptor score, a formula of user specified descriptor score will be printed to the screen, here is an example:

Using these settings, the Descriptor Score function takes the form:

Descriptor_Score = (1 * Continuous_Score) + (1 * Footprint_Similarity_Score) + (1 * Pharmacophore_Similarity_Score) + (-1 * Tanimoto) + (1 * Hungarian_Matching_Similarity_Score) + (-1 * Volume_Score)

2.11.15.1. Tanimoto Score

The Tanimoto score is a two-dimensional (i.e. does not consider three-dimensional position or conformation) chemical similarity between a candidate molecule and a user-supplied reference molecule.

In DOCK, molecular fingerprints, or unique molecule identifiers, are computed in a manner inspired by the MOLPRINT 2D method described by Bender et al. 2004. Briefly, for every atom in a candidate molecule, its local topology in all directions one, two, and three bonds away is computed and stored as a string. The atom hybridization, as well as bond order are considered in these environments. The collection of all atom environments in a molecule constitutes its fingerprint. Fingerprints between a candidate molecule (a) and a reference molecule (b) can be compared based on the number of features they have in common (Fa,b), and the number of features found in only either the candidate (Fa) or in the reference (Fb):

The user provides a mol2 file containing the reference molecule for comparison. A perfect match between two identical molecules will return a Tanimoto score of 1.0, and two molecules which share no features will return a Tanimoto score of 0.0. Molecules which share some, but not all, features, will return a value between 0.0 and 1.0.

Tanimoto Score Parameters

Parameter Description Default Value
descriptor_fingerprint_ref_filename Filename of reference molecule for Tanimoto Score fing_ref.mol2

Tanimoto Output Components

  • Tanimoto_Score:
    #tanimoto score

2.11.15.2. Hungarian Matching Similarity Score

The Hungarian matching similarity score is a combined two- and three-dimensional (i.e. it considers both chemical composition and three-dimensional position and conformation) similarity between a candidate molecule and a user-supplied reference molecule.

The Hungarian algorithm in DOCK was originally implemented to correct for molecule symmetry in RMSD calculations as described previously Allen et al., 2014. It has been adapted as a scoring function for comparing dissimilar molecules based on both chemical composition and spatial position / conformation at the same time. The function used to compute Hungarian RMSD is as follows:

Where #ref is the number of atoms in the larger molecule (whichever has more atoms), #unmatched is the number of atoms that are dissimilar between the two molecules, RMSDmatched is the symmetry-corrected RMSD between the atoms that are in common, and C1 and C2 are weighted coefficients. Given the default coefficients of C1 = -5 and C2 = 1, the two terms will be weighted approximately the same, and a larger negative value (or a positive value closer to zero), will be considered more favorable.

The user provides a mol2 file containing the reference molecule for comparison. A perfect match between two identical molecules will return a Hungarian matching similarity score of -5.0, and two molecules which share no chemical similarity and are spatially dissimilar will return a large positive value.

Hungarian Matching Similarity Score Parameters

Parameter Description Default Value
descriptor_hms_score_ref_filename Filename of reference molecule for Hungarian Matching Similarity Score. hun_ref.mol2
descriptor_hms_score_matching_coeff Matching coefficient C1 from the equation above. -5
descriptor_hms_score_rmsd_coeff RMSD coefficient C2 from the equation above. 1

Hungarian Matching Similarity Score Output Components

  • Hungarian_Matching_Similarity_Score:
    #Hungarian matching similarity score
  • desc_HMS_num_unmtchd_hvy_atms:
    #number of unmatched heavy atoms between the reference and candidate molecule
  • desc_HMS_num_ref_hvy_atms:
    #number of heavy atoms in the reference
  • desc_HMS_rmsd_mtchd_hvy_atms:
    #rmsd of the matched heavy atoms between the reference and candidate molecule

2.11.15.3. Volume Overlap Score

The volume overlap score is a scoring function that calculates property-based spacial occupation similarity between a reference molecule and a candidate molecule in three dimensional space.

Volume overlap score not only calculates the general overlap of two molecules, it also takes into consideration the overlapping volume of atoms bearing specific properties. The reported volume overlap score has six component scores, geometric, heavy atoms, positively charged atoms, negatively charged atoms, hydrophobic atoms, and hydrophilic atoms volume overlap. Geometric volume overlap is a straightforward volume overlap value that takes every atom into consideration. Heavy atoms volume overlap calculates all atoms that are not hydrogen. Positively charged atoms and negatively charged atoms volume overlap calculate atoms with positive and negative partial charges, respectively. Hydrophobic and hydrophilic atoms are determined by the chem.defn file, atom types categorized as hydrophobic in chem.defn will contribute to hydrophobic atoms volume overlap, and atom types categorized as donor, acceptor, and polar in chem.defn will contribute to hydrophilic atoms volume overlap.

To calculate the overlapping volume of the two molecules, or atoms with certain properties of the two molecules, there are two methods users can choose from: an analytical method and a grid-based method.

Analytical Method

The analytical method used to calculate volume overlap score employs an algorithm developed and published by Sastry et al., in which oab is defined as the overlapping volume of two atoms a and b, from two sets of atoms A and B, respectively, and OAB is defined as the total overlap:

The volume overlap is defined as follows:

The analytical method reports a very efficient but slightly rough estimation of volume overlap between two sets of atoms, so it is good to be used for on-the-fly sampling purposes.

Grid-based Method

Another method to calculate overlapping volume of two sets of atoms is a grid-based method. With this method, a bounding box that contains all the atoms is first generated, and within the box, grid points are generated with user defined grid separation. The overlapping volume is then determined by counting the number of grid points only in set A and set B and in both set A and B, which is calculated by the following form:

With the grid-based method, the accuracy of overlapping volume can be very high with a very small grid separation, but is more computationally expensive when compared to the analytical method, so it is recommended to be used for rescoring but not on-the-fly sampling.

In version 6.8 of DOCK, volume overlap score is introduced only as part of the descriptor score, so it will only be activated when the parameter descriptor_score_primary is set to "yes". (see Descriptor Score Parameters). If a user wants to use volume overlap score by itself, all other flags for descriptor score component scoring functions should be set to "no", and the parameter descriptor_use_volume_overlap should be set to "yes" (see Descriptor Score Parameters).

When using volume overlap score, the following parameters (questions asked in the DOCK input) may be needed.

Volume Overlap Score Parameters

Parameter Description Default Value
descriptor_volume_score_reference_mol2_filename mol2 filename of reference molecule for volume overlap calculation volume_reference.mol2
descriptor_volume_score_overlap_compute_method Flag to determine volume overlap calculation method. (Options: analytical, grid)See previous subsection for detailed description of the two methods.The following parameters are required only when using the grid-based method. analytical
descriptor_volume_score_number_of_layers_in_one_dimension Minimum number of grid points in each dimension for sufficient sampling. Grid point separation for each dimension can then be derived. 30
descriptor_volume_score_maximum_grid_point_separation Maximum grid point separation value for sufficient sampling. The smallest value among the user specified maximum value and the three grid point separation values derived for three dimensions with minimum number of grid points, will be used as the grid point separation for calculation. 0.3
descriptor_volume_score_write_points_cloud Flag to output all overlapping grid points as a mol2 file (generates three mol2 files) 1)cloud.mol2 containing all overlapping grid points, 2)charge_cloud.mol2 containing overlapping grid points of matching positive or negative partial charge, 3)hydrophobicity_cloud.mol2 containing overlapping grid points of hydrophobic or hydrophilic atoms. no

Volume Overlap Score Output Components

Below are the components for Volumne Overlap Score. Property_Volume_Score is an average of 6 different types of volumn overlap. It is possible that two different molecules with the exact same chemical structure with perfect overlap may result in a Property_Volume_Score less than 1.0 if one of the components is not present. For example, a perfect overlap of two benzene ring would report a 0.0 for hydrophilic overlap, lowering Property_Volume_Score to ~0.83, while all other components would be almost exactly 1.0.

  • Property_Volume_Score:
    #volume overlap similarity (VOS)
  • desc_VOS_geometric_vo:
    #geometric volume overlap (VOG)
  • desc_VOS_hvy_atom_vo:
    #heavy atom volume overlap between the reference and candidate molecule (VOH)
  • desc_VOS_pos_chrg_atm_vo:
    #positive charge atom volume overlap between the reference and candidate molecule (VOP)
  • desc_VOS_neg_chrg_atm_vo:
    #negative charge atom volume overlap between the reference and candidate molecule (VON)
  • desc_VOS_hydrophobic_atm_vo:
    #hydrophobic atom volume overlap between the reference and candidate molecule (VOB)
  • desc_VOS_hydrophilic_atm_vo:
    #hydrophilic atom volume overlap between the reference and candidate molecule (VOC)

RETURN TO TABLE OF CONTENTS

2.12. Minimization

Score optimization allows the orientation and conformation of a molecule to be adjusted to improve the score. Although the calculations can be expensive, the orientational and conformational searches may become more efficient because less sampling is necessary. The set of optimization features is controlled by the minimize_ligand parameter. Three types of minimization, which are discussed below, are available: standard minimization, pre-minimization, and restrained minimization. The optimizer uses the downhill simplex algorithm, which does not require evaluation of derivatives (Nelder et al. Computer Journal, 1964). However, it does depend on a random number generator which can be sensitive to the initial seed in the simplex_random_seed parameter. The amount of variance should be small, but for detailed calculations, it is recommended that the optimization be repeated with different random number seeds to check convergence. Note that for some compilers, simplex_random_seed = 0 and 1 always generate the same random number. Thus it is recommended not to use both 0 and 1 as random seeds for such repeated testings.

The initial step size of the minimizer is specified with the initial translation XXX_trans_step, initial rotation XXX_rot_step, and initial torsion XXX_tors_step parameters, where XXX is defined below. XXX_trans_step has DOCK length units. The units of XXX_rot_step are π radians; this is a natural unit; in other words, the constant π is normalized to unity, and the default values of 0.1 for XXX_rot_step are 0.1 π radians = 18 degrees; in addition, the range of values is -1.0 to +1.0; input values outside that range are wrapped around into that range. The units of XXX_tors_step are degrees.

Users can choose to minimize the rigid anchors and minimize during flexible growth. Note that the simplex_final_min (minimize the final conformation) option was removed starting with version 6.4. Note that the simplex_final_min (minimize the final conformation(s)) option has been added back in starting with version 6.12. We added back simplex final min. (It is useful for mirroring DOCK3.7 behavior.) It will only minimize those molecule being written to mol2 file (Balius, J.Comput. Chem. 2024). The recommendation now is to use the internal energy function; it is included as part of the minimization routine at each stage of growth. If a user wishes to do a final step of minimization, DOCK can be run an additional time (turn off orienting and flexible growth, turn on minimization). The anchor minimization is always done rigidly; also, if no flexible growth is being done, this step will minimize the entire molecule. The minimization during the flexible growth is a complete (torsions + rigid) minimization.

The XXX_max_iterations parameters specify the convergence criteria in number of iterations inside one call of the simplex minimizer; the XXX_score_converge parameters specify the other convergence criteria in terms of the score inside one call of the simplex minimizer. Thus, when the simplex shrinks enough so that the highest and lowest points are within the scoring energy tolerance or when the maximum number of iterations is reached, one call to the simplex minimizer terminates. Because of convergence issues with the downhill simplex method, additional calls of the simplex minimizer inside one step of minimization are possible. These convergence criteria are XXX_max_cycles for the maximum number of calls, i.e., cycles, of the simplex minimizer and XXX_cycle_converge for the normalized vector distance that the simplex has moved. For further details see page 416 of Ewing et al. 2001 and note that the citation numbers are off by one: i.e., [24] should be [23].

Here is a discussion of the number of iterations for these two types of minimization: standard minimization, which explores all (N + 6) degrees of freedom, and pre-minimization, which explores only the torsional ( N ) degrees of freedom. The additional 6 degrees are the translational (3) and rotational (3) ones. Pre-minimization is controlled, depending on the value of conformer_search_type, with one of these parameters: simplex_tors_premin_iterations or simplex_grow_tors_premin_iterations . Note that if 500 iterations of standard minimization and 20 iterations of torsion pre-minimization are specified, at most 520 steps of minimization will be performed. The motivation for using the torsion pre-minimizer is to optimize the torsions before translating. This parameter should only be used in cases where the growth tree reveals that the minimizer is translating a correctly oriented scaffold to relieve clashes instead of adjusting the torsions first. Alternatively, the restraint minimization routine could be used (see below). Although the default number of minimization steps is set to 500, this may be unnecessary. Results that are almost as good can be achieved with 20 steps of simplex_grow_max_iterations with much faster run time.

A third type of minimization is restrained minimization. Restrained minimization uses an RMSD tether: The minimizer may be performing too much sampling by moving partially grown conformers too far from the initial starting point. The minimizer should not be a coarse sampling tool. The objective of this routine is to ensure that the minimizer does NOT redundantly sample conformations which should be accessed using the anchor and grow code. The philosophy motivating the development of restrained minimization is to avoid the loss of information gained in the initial anchor placement and the other preceding growth steps. Conformations which cannot be rescued without moving "far away" should be pruned instead of being moved into the conformational space of an adjacent branch of growth.

RMSD and RMSD2 are metrics for the distances between two molecules. RMSD2 can be thought of as the mean squared distance.

where the variables ai and bi are the Cartesian coordinates of the same atom from two conformers of the same molecule. An intuitive way to restrain a (partial or fully grown) conformer is to use Hooke's law:

Erestraint= k RMSD2

where the parameter k is in kcal/(mol Ã…2). Simplex minimization energy evaluation is the sum (Score + Internal Energy+ Erestraint). A typical value of k=10 kcal/(mol Ã…2), for small conformational changes where say RMSD =0.5 Ã…, yields Econstraint =10*(0.5)^2=2.5 kcal/mol. This indicates that the constraint will affect the minimization very little unless the ligand is moved a lot.

RETURN TO TABLE OF CONTENTS

NOTE: The minimizer requires a scoring function in addition to internal energy to properly minimize ligands.

Score Optimization Parameters

Parameter Description Default Value
minimize_anchor Flag to perform rigid optimization of the anchor. yes
simplex_anchor_max_iterations Maximum number of iterations per cycle per anchor. 500
minimize_flexible_growth Flag to perform complete optimization during conformational search. yes
simplex_grow_max_iterations Maximum number of iterations per cycle per growth step. 500
simplex_grow_tors_premin_iterations Maximum number of iterations for torsion minimization per cycle per growth step occurs prior to standard minimization 0
use_advanced_simplex_parameters Flag to use a simplified set of common minimization parameters for each of the minimization steps listed above no
minimize_flexible_growth_ramp *ONLY FOR DOCKING - NOT AVAILABLE FOR DOCK_DN OR DOCK_GA* Flag to apply a ramping to the number of steps based on the current layer of growth during anchor and grow. Increases speed. yes
simplex_restraint_min Flag to perform RMSD tethering. yes
simplex_coefficient_restraint The force constant for the Hooke's law restraint. 10.0
simplex_final_min Flag for using a final minimization step on poses before writing them out. If yes then minimize poses before writing out. if no then just write out poses. Useful for HDB search. no
simplex_random_seed Seed for random number generator. Note that for some compilers, simplex_random_seed=0 and 1 always generate the same random number.. 0

Generic Minimizer Parameters

  1. if conformer_search_type = flex OR use_advanced_simplex_parameters = no, XXX = simplex
  2. if use_advanced_simplex_parameters = no AND minimize_anchor = yes, XXX = simplex_anchor
  3. if use_advanced_simplex_parameters = no AND minimize_flexible_growth = yes, XXX = simplex_grow

RETURN TO TABLE OF CONTENTS

2.13. Miscellaneous Parameters

There are a few parameters that govern the output of the mol2 files produced by DOCK6, presented in the table below.

Miscellaneous Parameters

Parameter Description Default Value
ligand_outfile_prefix prefix for the output mol2 files including the {ligand_outfile_prefix}_scored.mol2 file. output
write_mol_solvation for ChemGrid Score, per-atom solvation parameters are needed. These parameters, per-atom values, maybe written into the output mol2 file ({ligand_outfile_prefix}_scored.mol2) in the "@<TRIPOS>SOLVATION" section of the mol2 file. They will be the same values that are read in (controlled by read_mol_solvation). no
write_orientations controls whether to write out orientations into the {ligand_outfile_prefix}_orients.mol2 file. This is useful for debugging purposes. no
num_scored_conformers controls the number of conformers (poses) written out into the {ligand_outfile_prefix}_scored.mol2 file. 1
write_conformations This parameter only appears if num_scored_conformers greater than 1. controls whether to write out conformers (poses) into the {ligand_outfile_prefix}_conformers.mol2 file. useful for debugging purposes yes
cluster_conformations This parameter only appears if num_scored_conformers greater than 1. This parameter controls whether to cluster the poses (conformers) and write out only conformationally divers poses to the {ligand_outfile_prefix}_scored.mol2 file. If cluster_conformations is no, then {ligand_outfile_prefix}_conformers.mol2 and {ligand_outfile_prefix}_scored.mol2 will contain the same poses, if yes then {ligand_outfile_prefix}_scored.mol2 will contain only distinct poses, a subset of the poses in {ligand_outfile_prefix}_conformers.mol2. yes
cluster_rmsd_threshold defines the threshold used for the best-first clustering of poses (conformers) written to {ligand_outfile_prefix}_scored.mol2. It controls how distinct the poses are from one another. The larger the threshold the more encompassing the cluster (bigger clusters) and the fewer poses written out. 2.0
score_threshold only poses whose scores are below this threshold will be written out to the {ligand_outfile_prefix}_scored.mol2 file. This is important for large-scale docking so that only molecules with good scores will be written out (this helps control the disk footprint of the calculation). The more negative the fewer poses are written. 100
rank_ligands when a multi-mol2 file is docked this parameter will sort the poses by score and rank the ligands poses in order of score within the {ligand_outfile_prefix}_scored.mol2 file. (currently, this parameter should not be uses with the mpi version of DOCK). no
max_ranked_ligands This parameter only appears if rank_ligands is set to yes. It controls the number of poses (molecules) written to the {ligand_outfile_prefix}_scored.mol2 file. 500

RETURN TO TABLE OF CONTENTS

2.14. Parameter Files

The parameter files contain atom and bond data needed during DOCK calculations. The definition (*. defn ) files contain atom and bond labeling data. The table (*. tbl ) files contain additional data for chemical interactions and flexible bond torsion positions. They may be edited by the user. All the parameter files described below can be found in the "parameter" directory in the DOCK distribution.

RETURN TO TABLE OF CONTENTS

2.14.1. Atom Definition Rules

The definition files use a consistent atom labeling convention for which any atom in virtually any chemical environment can be identified. The specification of adjacent atoms is nested using the elements listed below:

  • Each element must be separated by a space.
  • If more than one adjacent atom is specified then ALL must be present (i.e., a Boolean AND for rules within a line).
  • If a label can have multiple definition lines then any ONE of them must be satisfied for inclusion (i.e., a Boolean OR for rules on different lines).

Atom Definition Elements

Element

Function

atom type

Specifies partial or complete atom type. A partial specification is more general (i.e., "C" versus "C.3"). An asterisk (*) specifies ANY atom type.

( )

Specifies atoms that must be bonded to parent atom.

[ ]

Specifies atoms that must NOT be bonded to parent atom.

integer

Specifies the number of an atom that must be bonded.

Example Definitions

Example

Explanation

C.2 ( 2 O.co2 )

A carboxylate carbon.

.3 [ 3 H ]

Any sp3 hybridized atom that is not attached to three hydrogens.

C. [ O . ] [ N . [ 2 O.2 ] [ 2 C. ] ]

Any carbon not attached to an oxygen or a nitrogen (unless the nitrogen is a nitro or tertiary nitrogen).

RETURN TO TABLE OF CONTENTS

2.14.2. vdw.defn

This file contains atom labels and definitions for van der Waals (VDW) atom typing. The following data types are associated with each atom: atom model, VDW radius, VDW well-depth, flag for heavy atom, and valence. The atom model specifies one of three possible values: all, united, or either; these indicate an all-atom model, a united-atom model, or either all- or united-atom models. The VDW radius and VDW well-depth values are used in molecular mechanics-scoring functions (see Grid). The valence is the value for the maximum number of atoms that can be attached. The definition is the Sybyl atom types that should be associated with the atom name. A label may have multiple definitions.

In the vdw_AMBER_parm99.defn file, there are additional parameters needed for use with the Hawkins GB/SA scoring function (see Hawkins GB/SA). Each entry has an additional gbradii and gbscale parameter.

WARNING: The last entry in the vdw.defn file MUST be Dummy.

Sample Entries

_____________________________________
name Carbon_sp/sp2
atom_model either
radius 1.850
well_depth 0.120
heavy_flag 1
valence 4

definition C
_____________________________________
name Carbon_All_sp3
atom_model all
radius 1.800
well_depth 0.060
heavy_flag 1
valence 4
gbradii 1.70
gbscale 0.72

definition C.3
_____________________________________
name Carbon_United_CH3
atom_model united
radius 2.000
well_depth 0.150
heavy_flag 1
valence 4

definition C. ( 3 H )
_____________________________________

RETURN TO TABLE OF CONTENTS

2.14.3. chem.defn

This file contains labels and definitions for chemical labeling. Nothing outside of addition to a label needs to be assigned to an atom. A label may have multiple definition lines but the names must match the rules in the chem_match.tbl file.

Sample Entries

________________________________________________________
name hydrophobic
definition C. [ O. ] [ N . [ 2 O.2 ] [ 2 C. ] ] ( * )
definition N.pl3 ( 3 C. )
definition Cl ( C. )
definition Br ( C. )
definition I ( C. )
definition C.3 [ * ]
________________________________________________________
name donor
definition N. ( H )
definition N.4 [ * ]
________________________________________________________
name acceptor
definition O. [ H ] [ N. ] ( * )
definition O.3 ( 1 * ) [ N. ]
definition O.co2 ( C.2 ( O.co2 ) )
definition N. [ H ] [ N. ] [ O . ] [ 3 . ] ( * )
definition O.2 [ * ]
________________________________________________________

RETURN TO TABLE OF CONTENTS

2.14.4. chem_match.tbl

This file contains the interaction matrix for which chemical labels can form an interaction in matching. The labels must be identical to labels in chem.defn. The table flag indicates the beginning of the interaction table. Compatible labels are identified with a one, otherwise a zero.

Sample File

label null
label hydrophobic
label donor
label acceptor
label polar
table
1
1 1
1 0 1
1 0 0 1
1 0 1 1 1

RETURN TO TABLE OF CONTENTS

2.14.5. ph4.defn

This file contains pharmacophore types and definitions for pharmacophore matching in FMS score calculations. Note that the pharmacophore types in this file are defined for individually typed atoms in the input molecule, which is different from the pharmacophore label defined for the final constructed pharmacophore points. See Jiang et al. for detailed descriptions. Each pharmacophore type may have multiple definition lines.

Sample Entries

________________________________________________________
name null

definition *
________________________________________________________
name hydrophobic

definition C. [ O. ] [ N. ] [ S. ] [ F ] [ P ] ( * )
definition C. ( N.pl3 ( 2 C. ) ) ( * )
definition N.pl3 ( 3 C. )
________________________________________________________
name donor

definition H ( O. )
definition H ( N. )
definition H ( S. )
definition H ( F )
________________________________________________________
name acceptor

definition O. ( * )
definition N.1 ( 1 * )
definition N.2 [ 3 * ]
definition N.3 ( 3 * )
definition N.pl3 ( 2 * ) [ H ]
definition S.2 [ O. ] [ N. ]
definition S.3 ( 2 * )
definition F ( * )
definition Cl ( * )
________________________________________________________
name aromatic

definition C.ar
definition N.ar
________________________________________________________
name aroAcc

definition N.ar [ H ] [ 3 * ] ( * )
________________________________________________________
name negative

definition C. ( 2 O.co2 )
definition C.2 ( O.2 ) ( O.3 [ * ] )
definition P. ( 4 O. ) ( O.3 [ * ] )
________________________________________________________

RETURN TO TABLE OF CONTENTS

2.14.6. flex.defn

This file contains labels and definitions for flexible bond identification. The drive_id field corresponds to a torsion type in the flex_drive.tbl file. The minimize field is a flag for whether the bond may be minimized (This is currently disabled and this flag has no effect on the calculation). Two definition lines must be present. Each definition corresponds to an atom at either end of the bond.

Sample Entries

______________________________________
name sp3-sp3
drive_id 3
minimize 1
definition .3 [ 3 H ] [ 3 O.co2 ]
definition .3 [ 3 H ] [ 3 O.co2 ]
______________________________________
name sp3-sp2
drive_id 4
minimize 1
definition .3 [ 3 H ] [ 3 O.co2 ]
definition .2 [ 2 H ] [ 2 O.co2 ]
______________________________________
name sp2-sp2
drive_id 2
minimize 0
definition .2 [ 2 H ] [ 2 O.co2 ]
definition .2 [ 2 H ] [ 2 O.co2 ]
______________________________________

RETURN TO TABLE OF CONTENTS

2.14.7. flex_drive.tbl

This file contains torsion positions assigned to each rotatable bond when the flexible docking parameter is used in DOCK. The drive_id field corresponds to each torsion type in the flex.defn file. The positions field specifies the number of torsion angles to sample. The torsions field specifies the angles that are sampled.

Sample Entries

______________________________________
drive_id 2
positions 2
torsions 0 180
______________________________________
drive_id 3
positions 3
torsions -60 60 180
______________________________________
drive_id 4
positions 4
torsions -90 0 90 180
______________________________________

RETURN TO TABLE OF CONTENTS

NOTE: The following parameter definitions will use the format below:

parameter_name [default] (value):
#description

In some cases, parameters are only needed (questions will only be asked) if the parameter above is enforced. These parameters are indicated below by additional indentation.

Atom Typing Parameters

RETURN TO TABLE OF CONTENTS

2.15. Parallel Processing

Parallel processing is fully integrated into the DOCK program. A master-slave paradigm is employed. The single master processor performs file input and output, whereas the slave processors perform the actual calculations. Consequently, a minimal difference in performance between 1 and 2 processors will exist under normal file handling conditions. Improved performance will only become evident with more than 2 processors. If the number of processors is 1 then the code defaults to the non-MPI behavior. It should be emphasized that the primary benefit in using DOCK6 in parallel mode is to reduce bookkeeping tasks associated with manually splitting up a database into multiple chunks which then must be submitted to different processors individually. dock6.mpi automatically partitions out subsets of a database to various processors, collates and ranks the final results, and does all intermediate bookkeeping.

The performance of parallel DOCK has been studied (Moustakas et al., 2006 and Peters et al., 2008). The parallel efficiency is less than but close to 100% even for high processor counts. Sorting the ligand database input file by the number of atoms per ligand or by the number of rotatable bonds per ligand improves load balancing.

Since DOCK is only parallelized over ligands, one ligand in the ligand_atom_file running in parallel is the same as running serially. In addition, the maximum productive number of processors is equal to the number of ligands plus one. The general advice for parallel DOCKing is to start with serial DOCK on a small representative set of ligands. Once one has a useful serial calculation then one can confidently run a large library of ligands in parallel.

See the Installation section for details on building dock6.mpi. Parallel jobs simply require that the user specify the location of the MPI installation used to build dock6.mpi and the names of the nodes and processors on which to run dock6.mpi. For parallel docking three additional parameters must be specified: (1) the path of the MPI installation, (2) a machine file containing the names of the computers (nodes) to be used, and (3) the number of processors which typically is the same as the number of lines in the machine file. See Commandline-Arguments for usage information on parallel DOCK.


Accessories

RETURN TO TABLE OF CONTENTS

3.1. Grid

AUTHOR: Todd Ewing (based on work by Elaine Meng and Brian Shoichet)

USAGE: grid -i grid.in [-stv] [-o grid.out]

OPTIONS:
- i input_file #Input parameters extracted from input_file, or grid.in if not specified
-o output_file #Output written to output_file, or grid.out if not specified
-s Input parameters entered interactively
-t Reduced output level
-v Increased output level

DESCRIPTION:

3.1.1. Overview

Grid creates the grid files necessary for rapid score evaluation in DOCK. Two types of scoring are available: contact and energy scoring. The scoring grids are stored in binary files ending in *.cnt and *.nrg respectively. When docking, each scoring function is applied independent of the others and the results are written to separate output files. Grid also computes a bump grid which identifies whether a ligand atom is in severe steric overlap with a receptor atom. The bump grid is identified with a *.bmp file extension. The binary file containing the bump grid also stores the size, position and grid spacing of all the grids.

The grid calculation must be performed prior to docking. The calculation can take up to 45 minutes, but needs to be done only once for each receptor site. Grid generation and docking should be performed on the same platform; because the grid files have a binary format, copying grid files between machines may produce incorrect results. Furthermore, binary files should not be modified with text editors. Since DOCK can perform continuum scoring without a grid, the grid calculation is not always required. However, for most docking tasks, such as when multiple binding modes for a molecule or multiple molecules are considered, it will become more time efficient to precompute the scoring grids.

General Grid Parameters

0.75
Parameter Description Default Value
allow_non_integral_charges During receptor input, allow residues with a non integer charge (0.001 tolerance) no
box_file PDB file containing showbox output which specifies boundaries of grid site_box.pdb
compute_grids Flag to compute scoring grids no
grid_spacing The distance between grid points along each axis when compute_grids is turned on. 500
output_molecules Flag to write out the coordinates of the receptor into a new, cleaned up file. Atoms are resorted to put all residue atoms together. no
receptor_out_file File for cleaned up receptor when output_molecules is turned on. receptor_out.mol2
atom_model Choice of atom model. united atom, u, or all atom, a. a (CHECK)
attractive_exponent Specify the attractive van der Waals exponent. 6
repulsive_exponent Specify the repulsive van der Waals exponent. most offten 12, hard, or 9, Soft. 12 (CHECK)
distance_dielectric Indicates wether to use a disance dependent dielectic or not. if "yes", distance dependent dielectic is used. if "no" standared is used. yes (CHECK)
dielectric_factor specify the dielectic_factor. (a value of 1 will have no screening, if distance_dielectric is turned off). 4 is often used for protein (little screening). 80 is often used for water. 4
bump_filter Weither to generate a bump grid. yes
bump_overlapbump grid parameter. (more details?) 0.75 (check)
receptor_file Receptor coordinate file. Partial charges and atom types need to be present. receptor.mol2
score_grid_prefix Prefix for file name of grids. File extension will be appended automatically. grid
vdw_definition_file VDW parameter file (see vdw.defn) vdw.defn

RETURN TO TABLE OF CONTENTS

3.1.2. Bump Checking

Prior to scoring, each orientation can be processed with the bump filter to reject ones that penetrate deep into the receptor. Orientations that pass the bump filter are then scored and/or minimized with any of the available scoring functions. A bump is based on the sum of the van der Waals radii of the two interacting atoms. The user specifies what fraction of the sum is considered a bump. For example, the default definition of a bump is if any two atoms approach closer than 0.75 of the sum of their radii. Grid stores an atomic radius which corresponds to smallest radius of ligand atom at the grid position which would still trigger a bump. During docking, for a given orientation, the position of each atom is checked with the bump grid. If the radius of the atom is greater than or equal to the radius stored in the bump grid, then the atom triggers a bump. To conserve disk space, the atom radius is multiplied by 10 and converted to a short unsigned integer.

Bump Grid Parameters

Parameter Description Default Value
bump_filter Flag to screen each orientation for clashes with receptor prior to scoring and minimization. no
bump_overlap Amount of VDW overlap allowed. If the probe atom and the receptor heavy atom approach closer than this fraction of the sum of their VDW radii, then the position is flagged as a bump. (0 = Complete overlap allowed, 1 = No overlap allowed) 0.75

RETURN TO TABLE OF CONTENTS

3.1.3. Contact Scoring

Contact scoring in grid incorporates the scoring performed with the DISTMAP program (developed by Shoichet and Bodian). The score is a summation of the heavy atom contacts (every atom except hydrogen) between the ligand and receptor. A contact is defined as an approach of two atoms within some cutoff distance (usually 4.5 angstroms). If the two atoms approach close enough to bump (as identified with the bump grid) then the interaction can be penalized by an amount specified by the user.

Distance dependence of contact score function

The attractive score in grid is negative and a repulsive score is positive. This switch of sign is necessary to allow the same minimization protocol to be used for contact scoring as implemented for energy scoring.

Contact Grid Parameters

Parameter Description Default Value
contact_score Flag to construct contact grid no
contact_cutoff_distance Maximum distance between heavy atoms for the interaction to be counted as a contact. 4.5

RETURN TO TABLE OF CONTENTS

3.1.4. Energy scoring

The energy scoring component of DOCK is based on the implementation of force field scoring. Force field scores are approximate molecular mechanics interaction energies, consisting of van der Waals and electrostatic components:

where each term is a double sum over ligand atoms i and receptor atoms j, which include the quantities listed below.

Generalization of the VDW component

The van der Waals component of the scoring function has been generalized to handle any combination of repulsive and attractive exponents (providing that a> b). The user may choose to "soften" the potential by using a 6-9 Lennard -Jones function. The general form of the van der Waals interaction between two identical atoms is presented:

where e is the well depth of the interaction energy, R is the van der Waals radius of the atoms, and coefficients C and D can be determined given the two following boundary conditions:

at

at

Application of these boundary conditions to the above equation yields an expression of the van der Waals interaction with a generalized Lennard -Jones potential.

The consequence of using a different exponent for the repulsive term is illustrated in Figure 1. Notice that the well position and depth are unchanged, but that the repulsive barrier has shrunk by about 0.25 angstrom.

Distance dependence of the Lennard -Jones Function

Precomputing potentials on a grid

By inspection of the above equations, the repulsion and attraction parameters ( Aij and Bij ) for the interactions of identical atoms can be derived from the van der Waals radius, R, and the well depth, e.

In order to evaluate the interaction energy quickly, the van der Waals and electrostatic potentials are precomputed for the receptor and stored on a grid of points containing the docking site. Precomputing the van der Waals potential requires the use of a geometric mean approximation for the A and B terms, as shown:

Using this approximation, the first equation can be rewritten:

Three values are stored for every grid point k ,each a sum over receptor atoms that are within a user defined cutoff distance of the point:

These values, with trilinear interpolation, are multiplied by the appropriate ligand values to give the interaction energy. Grid calculates the grid values and stores them in files. The values are read in during a DOCK run and used for force field scoring.

The user determines the location and dimensions of the grid box using the program showbox. It is not necessary for the whole receptor to be enclosed; only the regions where ligand atoms may be placed need to be included. The box merely delimits the space where grid points are located, and does not cause receptor atoms to be excluded from the calculation. Besides a direct specification of coordinates, there is an option to center the grid at a sphere cluster center of mass. Any combination of spacing and x, y, and z extents may be used.

Energy Grid Parameters

Parameter Description Default Value
energy_score Flag to perform energy scoring no
energy_cutoff_distance Maximum distance between two atoms for their contribution to the energy score to be computed. 10
atom_model Flag for how to model nonpolar hydrogens (u = United atom model, a = All atom model). u
attractive_exponent Exponent of attractive Lennard-Jones terms for VDW potential 6
repulsive_exponent Exponent of repulsive Lennard-Jones terms for VDW potential 12
distance_dielectric Flag to make the dielectric depend linearly on the distance. yes
dielectric_factor Coefficient of the dielectric 4.0

RETURN TO TABLE OF CONTENTS

3.2. Docktools

Docktools is a suite of programs that are available to create grids used by Dock3.5 score function in DOCK 6 which is an implementation of the scoring function available in the older version of DOCK, i.e., dock3.5.54. These programs can be used to generate steric, electrostatic and ligand and receptor desolvation grids. Dock3.5 scoring functionality in DOCK 6 is an alternate scoring approach to electrostatic interaction energy and also includes different grid-based methods for calculating ligand and receptor desolvation. Docktools consists of chemgrid, solvmap, solvgrid (and sevsolv), grid-convert and grid-convrds.  This section will briefly review the theory behind each of the programs and describe the usage. The sevsolv program is included so that the chemgrid (dock3.5) scoring function matches DOCK 3.7 (or 3.8).

3.2.1. CHEMGRID

AUTHOR: Brian K. Shoichet

DESCRIPTION:

This program chemgrid produces values for computing force field scores and bump checking.  The force field scores, or molecular mechanics interaction energies are calculated as van der Waals and electrostatic components and stored on grids. The calculations are based on the theory presented in the Grid section above. However only the steric interaction energy grids are used in DOCK 6 as a part of Dock3.5 Score. The electrostatic interaction calculation differs from Energy Scoring in the following aspects. For calculating the electrostatic interaction, the electrostatic potential of the receptor calculated using the linearized form of Poisson-Boltzmann equation:

npbe_score_eqn

Where phi(x) the potential is determined by the dielectric function epsilon(x), a modified Debye-Huckel parameter kappa(x), and the charge density of the receptor rho(x). The electrostatic potential map (or phimap) is calculated using DelPhi and then is used by DOCK 6 to calculate the electrostatic interaction energy as:

delphi_elec_score
Where, qi the partial charge of every atom i, is multiplied by the electrostatic potential of the receptor phi at the respective atomic position. Trilinear interpolation method is used for interpolating the electrostatic potential from the phimap on to the ligand position.

USAGE: chemgrid

INPUT FILE:

This programs require that an INCHEM file be created in the working directory, which contains the parameters to control the program. The INCHEM parameters for chemgrid are detailed below:

receptor.pdb ; receptor pdb file
parameters/ prot.table.ambcrg.ambH ; charge parameter file (for alternate naming conventions see also prot.table.ambcrg.pdb3H, prot.table.ambcrg.pdbH, and prot.table.ambcrg.sybH)
parameters/ vdw.parms.amb.mindock ; VDW parameter file
box.pdb ; box pdb file
0.33 ; grid spacing in angstroms
1 ; es type: distance-dependent dielectric; 2: constant dielectric
1 ; es scale for ff scoring
2.3 2.8 ; bumping distances for polar and non-polar receptor atoms
output_prefix ; output grid prefix name

OUTPUT FILES

3.2.2 SOLVMAP

AUTHOR:  Brian K. Shoichet

DESCRIPTION:

The solvmap program calculates the grid that is used by DOCK6 for calculating ligand desolvation. Ligand desolvation is calculated as a sum of the atomic desolvation multiplied by a normalization factor that accounts for the extent to which the ligand atom is buried by the binding site. The atomic desolvation for each ligand atom can be calculated by AMSOL (AMSOL is not distributed by us, please follow the link for more information) and is stored in the input file (see file formats). The cost of desolvating each atom, or the normalization factor, is the distance weighted high dielectric volume displaced by the protein that is stored for each grid element in the active site. Thus the volume based ligand desolvation energy is calculated as:

                                                                Edesol_equation

Here L is the ligand atom desolvation, volume summed over k volume elements, V. This method is only an approximation to GB solvation and works within the limits of complete burial from the solvent and complete exposure to the solvent on the protein surface. However, being grid-based it is fast and can be used during conformational search and final scoring.

USAGE:  solvmap

INPUT FILE:

This programs require that an INSOLV file be created in the working directory, which contains the parameters to control the program. The INSOLV parameters for chemgrid are detailed below:

        receptor.pdb; receptor file
        solvmap ; output grid file
        1.4,1.3,1.7,2.2,2.2,1.8 ; radii of oxygen, nitrogen, carbon, sulfur, phosphorus, and "other" atoms.
        1.4 ;  radius of probe
        1 ; grid resolution
        box.pdb ; box file

OUTPUT FILES:

Starting in 6.11, The solvmap program program from DOCK 3.7 is also now included and is called solvmapsev (MySinger, J Chem Inf Model 2010).

3.2.3 SOLVGRID

AUTHOR  Kaushik Raha

DESCRIPTION:

The solvgrid program creates bulk (or receptor) and explicit (or ligand) desolvation grids using the occupancy desolvation method (Luty et. al., J. Comp. Chem, 1995; Verkhiver et. al., J. Mol. Recog., 1999). The occupancy desolvation method is phenomenological in nature where desolvation energy can be described pairwise additively. The desolvation energy due to interaction between a ligand atom and receptor atom can be calculated as  the solvent affinity of a ligand atom weighted by the volume of the solvent displaced from the receptor atom due to binding and vice versa. Thus,

                                                Edsol  =  Si ϕDES,EXPL(xi) +  fi ϕDES,BULK(xi)

Where the mobile atom i, has a solvation affinity of Si and a fragmental volume of  fi. The solvent affinity of the ligand atom is calculated as:

                                                  lig_atm_sol

Where qi is the charge on the ligand atom i, and alpha and beta are constants  set at alpha = 0.25 kcal/mol and beta = -0.005 kcal/mol. fi is the volume of ligand atom i, calculated from the amber radius of the ligand atom. For the receptor, these can be precalculated and stored on a grid. ϕDES,BULK(xi)  and ϕDES,EXPL(xi) are interpolated from grids calculated using the solvgrid program during docking. It requires the calculation of two separate grids:

                                            blk_exp_dsol_grd

where j is a rigid receptor atom, and Sj and fj are the solvent affinity and the fragmental volume of the receptor atom respectively. Bulk and explicit desolvation grids are calculated from fj and Sj at grid points p, distance rjp from the receptor atom multiplied by Gaussian weighting of the distance.  The solvgrid program calculates these grids from the charge and the volume of the receptor atoms.

USAGE: solvgrid

INPUT

This programs require that an INRDSL file be created in the working directory, which contains the parameters to control the program. The INRDSL parameters for solvgrid are detailed below:

receptor.pdb ; receptor pdb file
parameters/ prot.table.ambcrg.ambH ; charge parameter file< (for alternate naming conventions see also prot.table.ambcrg.pdb3H, prot.table.ambcrg.pdbH, and prot.table.ambcrg.sybH)
parameters/ vdw.parms.amb.mindock ; VDW parameter file
box.pdb ; box pdb file
0.33 ; grid spacing in angstroms
1 ; es type: distance-dependent dielectric; 2: constant dielectric
4 ; es scale for ff scoring
2.3 2.8 ; bumping distances for polar and non-polar receptor atoms
output_prefix ; output grid prefix name
sol_op ; method for calculating desolvation grid
solE_recep; solvation free energy of receptor

OUTPUT FILES



3.2.4 GRID-CONVERT

AUTHOR: Kaushik Raha, John J. Irwin (Derived from Todd Ewing's GRID Program)

DESCRIPTION:

This consists of programs grid-convert and grid-convrds that convert grids generated by chemgrid, solvgrid and DelPhi into DOCK6 readable grids. Note that grids created by program Grid are already DOCK6 readable grids. Thus, even though the input of grid-convert may contain parameters related to Grid produced grids, such grids do not need conversion - to wit the contact grid.

Update grid-convert. Updated grid-convert to convert qnifft grids and to convert grid generated with blastermaster.py from DOCK3.7. (Balius, J.Comput. Chem. 2024)

USAGE: grid-convert -i gconv.in >& gconv.out

INPUT FILES:

  • gconv.in; input file with parameters
  • vdw.defn; vdw parameters file
  • conv.defn; atomtype definition file
  • RETURN TO TABLE OF CONTENTS

    3.3. Nchemgrids

    AUTHOR: Xiaoqin Zou

    USAGE: nchemgrid_GB or nchemgrid_SA

    INPUT FILE:

    Both programs require that an INCHEM file be created in the working directory, which contains the parameters to control the program. The INCHEM parameters for both the nchemgrid_GB and nchemgrid_SA programs are detailed below:

    For nchemgrid_GB:

    receptor.pdb ; receptor pdb file
    cavity.pdb ; cavity pdb file
    parameters/ prot.table.ambcrg.ambH ; charge parameter file (for alternate naming conventions see also prot.table.ambcrg.pdb3H, prot.table.ambcrg.pdbH, and prot.table.ambcrg.sybH)
    parameters/ vdw.parms.amb ; VDW parameter file
    box.pdb ; box pdb file
    0.4 ; grid spacing in angstroms
    2 ; es type: GB
    1 ; es scale for ff scoring
    8.0 8.0 ; cutoff for es and outer box
    78.3 78.3 ; dielectric of solvent ,cavity
    2.3 2.8 ; bumping distances
    output_prefix ; output grid prefix name
    1 ; pairwise calculation

    NOTE: The cavity.pdb file should be an empty file. This feature is not frequently used. However, the parameter must still be passed. The pairwise calculation value must also always be 1.

    For nchemgrid_SA:

    receptor.pdb ; receptor pdb file
    parameters/prot.table.ambcrg.ambH ; charge parameter file (for alternate naming conventions see also prot.table.ambcrg.pdb3H, prot.table.ambcrg.pdbH, and prot.table.ambcrg.sybH)
    parameters/ vdw.parms.amb ; VDW parameter file
    box.pdb ; box pdb file
    0.4 ; grid spacing in angstroms
    1.4 ; probe radius for SA
    2 ; scoring type: SA
    8.0 ; cutoff for SA calculations
    output_prefix ; output grid prefix name

    DESCRIPTION:

    The nchemgrid_gb and nchemgrid_sa programs create the GB and SA receptor grids for use with the Zou GB/SA scoring function (see Zou GB/SA Scoring).

    OUTPUT FILES

    For nchemgrid_gb

    For nchemgrid_sa:

    RETURN TO TABLE OF CONTENTS

    3.4. Sphgen

    AUTHOR: Irwin D. Kuntz (modified by Renee DesJarlais and Brian Shoichet)

    USAGE: sphgen

    INPUT FILE*:
    rec.ms #molecular surface file
    R #sphere outside of surface (R) or inside surface (L)
    X #specifies subset of surface points to be used (X=all points)
    0.0 #prevents generation of large spheres with close surface contacts (default=0.0)
    4.0 #maximum sphere radius in angstroms (default=4.0)
    1.4 #minimum sphere radius in angstroms (default=radius of probe)
    rec.sph #clustered spheres file

    *WARNINGS:
    (1) The input file names and parameters are read from a file called INSPH, which should not contain any blank lines or the comments (denoted by # ) from above.
    (2) The molecular surface file must include surface normals. Sphgen expects the Fortran format

    A3, I5, X, A4, X, 2F8.3, F9.3, X, A3, 7X, 3F7.3

    DESCRIPTION:

    3.4.1. Overview

    Sphgen generates sets of overlapping spheres to describe the shape of a molecule or molecular surface. For receptors, a negative image of the surface invaginations is created; for a ligand , the program creates a positive image of the entire molecule. Spheres are constructed using the molecular surface described by Richards (1977) calculated with the program dms . Each sphere touches the molecular surface at two points and has its radius along the surface normal of one of the points. For the receptor, each sphere center is outside the surface, and lies in the direction of a surface normal vector. For a ligand, each sphere center is inside the surface, and lies in the direction of a reversed surface normal vector.

    Spheres are calculated over the entire surface, producing approximately one sphere per surface point. This very dense representation is then filtered to keep only the largest sphere associated with each receptor surface atom. The filtered set is then clustered on the basis of radial overlap between the spheres using a single linkage algorithm. This creates a negative image of the receptor surface, where each invagination is characterized by a set of overlapping spheres. These sets, or clusters, are sorted according to numbers of constituent spheres, and written out in order of descending size. The largest cluster is typically the ligand binding site of the receptor molecule. The program showsphere writes out sphere center coordinates in PDB format and may be helpful for visualizing the clusters (see showsphere).

    RETURN TO TABLE OF CONTENTS

    3.4.2. Critical Points

    The process of labeling site points for critical matching must currently be done by hand (see Critical Points for use in DOCK). The user should load the site points and the receptor coordinates into a graphic program to determine the spheres closest to the target area. Once a sphere or group of spheres has been determined to be critical, the sphere(s) should be labeled by changing the second to last column of the final sphere file to the critical cluster number (see Output).

    RETURN TO TABLE OF CONTENTS

    3.3.3. Chemical Matching

    The process of labeling site points for chemical matching must also be done by hand (see Chemical Matching for use in DOCK). The user should load the site points and the receptor coordinates into a graphic program and study the local environment of each point. Labeled site points may be input as either a SPH format or SYBYL MOL2 format coordinate file. To store labeled site points in a MOL2 file, select an atom type for each label of interest. Then edit the chem.defn file to include the selected atom types (see chem.defn). Site point definitions can be distinguished from ligand atom definitions by explicitly requiring that no bonded atoms can be attached (ie. followed by [*]). Using the convention in that example file, site points should be labeled as follows: hydrophobic, "C.3"; donor, "N.4"; acceptor, "O.2"; polar, "F".

    Example of chemical labels in SPH format

    DOCK 3.5 receptor_spheres
    color hydrophobic 1
    color acceptor 2
    color donor 3
    cluster 1 number of spheres in cluster 49
    7 2.34500 36.49000 16.93500 1.500 0 0 1
    8 -0.05200 42.29900 14.18800 1.500 0 0 1
    9 -0.67000 41.20600 11.59800 1.500 0 0 1
    17 -6.00000 34.00000 17.00000 1.500 0 0 3
    18 -5.00000 29.00000 22.00000 1.500 0 1 3
    ...

    Caveats on Chemical Matching

    It can take a significant amount of effort to chemically label a large site and to verify that the docking results are what were expected. If you use this chemical matching, plan to spend some time in preparation and validation BEFORE running an entire database of molecules.

    It must be pointed out that the ultimate arbiter of which orientations of a ligand are saved is actually the scoring function. If the scoring function is unable to discriminate what the user feels are bad chemical interactions, then any improvement with chemical matching will probably be obscured. In addition, if score optimization is used, then the orientation will be perturbed from the original chemically-matched position to a new score-preferred positions.

    RETURN TO TABLE OF CONTENTS

    3.4.4. Output

    Some informative messages are written to a file called OUTSPH. This includes the parameters and files used in the calculation. The spheres themselves are written to the clustered spheres file. They are arranged in clusters with the cluster having the largest number of spheres appearing first. The sphere cluster file consists of a header followed by a series of sphere clusters. The header is the line DOCK 3.5 receptor_spheres followed by a color table (see Chemical Matching). The color table contains color names each on a separate line. As sphgen produces no colors, the color table is simply absent.

    The sphere clusters themselves follow, each of which starts with the line

    cluster n number of spheres in cluster i

    where n is the cluster number for that sphere cluster, and i is the number of spheres in that cluster. Next, all spheres in that cluster are listed in the format below:

    FORMAT: (I5, 3F10.5, F8.3, I5, I2, I3)
    I: Integer F: Float
    012345012345678901234567890123456789012345678901234567890123456789
    63 5.58405 50.91005 59.97029 1.411 92 0 0
    64 9.00378 52.46159 62.30926 1.400 321 0 0
    66 11.43685 56.49715 61.79008 1.984 493 0 0
    I5: Column 0~4 (the first 5 columns) were used to put integer data.
    F10.5: Column 5~14 (total 10 columns, and 5 digits for mantissa) were used to put float data.

    The values in the sphere file correspond to:

    • The number of the atom with which surface point i (used to generate the sphere) is associated.
    • The x, y ,and z coordinates of the sphere center.
    • The sphere radius.
    • The number of the atom with which surface point j (second point used to generate the sphere) is associated.
    • The critical cluster to which this sphere belongs.
    • The sphere color. The color is simply an index into the color table that was specified in the header. Therefore, 1 corresponds to the first color in the header, 2 for the second, etc. 0 corresponds to unlabeled.

    The clusters are listed in numerical order from largest cluster found to the smallest. At the end of the clusters is cluster number 0. This is not an actual sphere cluster, but a list of all of the spheres generated whose radii were larger than the minimum radius, before the filtering heuristics ( i.e., allowing only one sphere per atom and using a maximum radius cutoff) and clustering were performed. Cluster 0 may be useful as a starting point for users who want to explore a wider range of possible clusters than is provided by the standard sphgen clustering routine. The program creates three temporary files: temp1.ms, temp2.sph, and temp3.atc. These are used internally by sphgen, and are deleted upon completion of the computation. For more information on sphere generation and selection, go to the Sphere Generation and Selection demo.

    RETURN TO TABLE OF CONTENTS

    3.5. Showbox

    AUTHOR: Elaine Meng

    USAGE: showbox [< input.in]

    DESCRIPTION:

    Showbox is an interactive program for specifying the location and the size of the grids that will be calculated by the program grid. The output is in PDB format and thus can be visualized with many graphics programs. The user is asked whether the box should be automatically constructed to enclose all of the spheres in a cluster. If so, the user must also enter a value for how closely the box faces may approach a sphere center (how large a cushion of space is desired) and the sphere cluster filename and number. If not, the user is asked whether the box will be centered on manually entered coordinates or a sphere cluster center of mass. Depending on the response, the coordinates of the center or the sphere cluster filename and number are requested. Finally, the user must enter the desired box dimensions (if not automatic) and a name for the output PDB-format box file. If the input parameters are known, they can be listed in an input file and redirected into the program. For a flowchart of the input tree and an example input, see STEP 1 of the Grid Generation Tutorial.

    See also the discussion of showbox in the grid energy scoring section.

    RETURN TO TABLE OF CONTENTS

    3.6. Showsphere

    AUTHORS: Stuart Oatley , Elaine Meng , Daniel Gschwend

    USAGE: showsphere [< input.in]

    DESCRIPTION:

    Showsphere is an interactive program; it produces a PDB-format file of sphere centers and an MS-like file of sphere surfaces, given the sphere cluster file and cluster number. The surface file generation is optional. The user may specify one cluster or all, and multiple output files will be generated, with the cluster number appended to the end of the name of each file. The input cluster file is created using sphgen (see sphgen). Showsphere requests the name of the sphere cluster file, the number of the cluster of interest, and names for the output files. Information is sent to the screen while the spheres are being read in, and while the surface points are being calculated. If the input parameters are known, they can be listed in an input file and piped into the program.

    RETURN TO TABLE OF CONTENTS

    3.7. Sphere Selector

    AUTHOR: P. Therese Lang

    USAGE: sphere_selector < sphere_cluster_file.sph > <set_of_atoms.mol2> <radius>

    DESCRIPTION:

    Sphere_selector filters the output from sphgen selecting all spheres within a user-defined radius of a target molecule (see sphgen). The target molecule can be anything (e.g., known ligand or receptor residue) as long as it is in proper MOL2 format. WARNING: Please note that above order of input files must be maintained for the program to work. The total number of spheres is unlimited, eliminating the maximum of 100000 spheres in versions prior to DOCK 6.1.

    RETURN TO TABLE OF CONTENTS

    3.8. Antechamber

    Antechamber is an accessory program originally developed to prepare small molecules on the fly to use in AMBER. With permission, we have included a distribution of the code to facilitate preparing small molecules for Amber score. For more information on the use of the antechamber accessory, please visit the source web site at ambermd.org/antechamber/antechamber.html.
    From the web site:

    "Antechamber is a set of auxiliary programs for molecular mechanic (MM) studies. This software package is devoted to solve the following problems during the MM calculations: (1) recognizing the atom type; (2) recognizing bond type; (2) judging the atomic equivalence; (3) generating residue topology file; (4) finding missing force field parameters and supplying reasonable and similar substitutes. As an accessory module..., antechamber can generate input automatically for most organic molecules in a database...."

    RETURN TO TABLE OF CONTENTS

    3.9. tLEaP

    tLEaP is an accessory program that provides for basic model building and Amber coordinate and parameter/topology input file creation. For more information see the AmberTools distribution: ambermd.org/. tleap is only used during the preparation for Amber Score. tleap's charge tolerance has been increased from 0.0001 (as in Amber10) to 0.001 to avoid excessive instances of left over charges of plus or minus one.

    RETURN TO TABLE OF CONTENTS

    3.10. Amber Score Preparation Scripts

    AMBER score requires many additional input files beyond those of other DOCK scoring functions; see AMBER Score Inputs for more information. All the input files, such as the prmtop, frcmod, amber.pdb, etc. should be generated prior to running the DOCK AMBER score. Two perl scripts, prepare_amber.pl and prepare_rna_amber.pl, have been provided for this purpose. The script prepare_rna_amber.pl differs from prepare_amber.pl in that the former treats all nucleic acids as RNA whereas the latter treats them as DNA; in addition, prepare_rna_amber.pl supports the RNA specific features to neutralize to a total charge of zero and to solvate with water.

    The script prepare_amber.pl performs the following main tasks:
    (i) Reads the PDB file for the receptor; adds hydrogens and some other missing atoms if not present; adds AMBER force field atom types and charges. Generates Amber parameter/topology (prmtop) and coordinate (inpcrd) files. This is performed via the script amberize_receptor which invokes program tleap.
    (ii) Generates a modified mol2 file with suffix amber_score.mol2 (e.g., lig.amber_score.mol2) that appends to each TRIPOS MOLECULE a TRIPOS AMBER_SCORE_ID section containing a unique label (e.g., lig.1, mydnagil.1, etc.). This modified mol2 file should be assigned to the ligand_atom_file input parameter in the DOCK input file.
    (iii) Splits the ligand_mol2_file into separate mol2 files, one file per ligand, where the file prefixes are the AMBER_SCORE_ID unique labels. These mol2 files are used in the next step.
    (iv) Runs the antechamber program to determine the semi-empirical charges, such as AM1-BCC, for each ligand. Runs the tleap program to create parameter/topology and coordinate files for each ligand using the GAFF force field (prmtop, frcmod, and inpcrd), and writes a mol2 file for the ligands with GAFF atom types (gaff.mol2). This is performed via the script amberize_ligand.
    (v) Combines each ligand with the receptor to generate the parameter/topology and coordinate files for each complex. This is performed via the script amberize_complex which invokes program tleap.

    The script prepare_amber.pl also creates files with extensions .log and .out that contain the detailed results of the above steps. The amberize_*.out files can be browsed to verify that the preparation was successful. If prepare_amber.pl emits any warnings or errors then all these files should be scrutinized. Some errors are fatal, such as an inability to prepare the receptor; generally, and in this case especially start investigating by examining file amberize_receptor.out. Since preparation for Amber score is more stringent than preparation for other DOCK scores, usually a small fraction of a large set of ligands fails during prepare_amber.pl execution. This DOCK-Fans post discusses in detail the recovery options for failing ligands.

    See the tutorials for a complete example usage. Two options not discussed in the tutorial are designed for rescoring large ligand databases and should be applied only after experience with small data sets. These options are to use the existing ligand charges and to ignore non-receptor related errors. In addition, for DOCKing ligands to RNA the script prepare_rna_amber.pl supports neutralizing to a total charge of zero and solvating with water. Here are the man pages for prepare_amber.pl and prepare_rna_amber.pl.

    Under the best conditions these prepare scripts will work as designed, but if not then here is a starting point for looking under the hood.

    RETURN TO TABLE OF CONTENTS


    Molecular File Formats

    RETURN TO TABLE OF CONTENTS

    4.1. Tripos MOL2 Format

    This format is used for general molecule input and output of DOCK. Although previous versions of DOCK supported an extended PDB format to store molecule information, the current version now uses MOL2 as the molecule format. This format has the advantage of storing all the necessary information for atom features, position, and connectivity. It is also a standardized format that other modeling programs can read. For more information on how to generate MOL2 files from PDB files, go to the Structure Preparation demo.

    Of the many record types in a MOL2 file, DOCK recognizes the following: MOLECULE, ATOM, BOND, SUBSTRUCTURE and SET. In the MOLECULE record, DOCK utilizes information about the molecule name and number of atoms, bonds, substructures and sets. In the ATOM record DOCK utilizes information about the atom names, types, coordinates, residue numbers, and partial charges. In the BOND record, DOCK utilizes the atom identifiers for the bond. In the SUBSTRUCTURE record, DOCK records the fields, but does not utilize them. The SET records are entirely optional. They are used only in special circumstances, such as for ligand flexibility. In DOCK 6, additional record types have been introduced. One is the SOLVATION record that has the atomic desolvation information for the ligand atoms. The parameter read_mol_solvation can be used to read in this record. Another is the AMBER_SCORE_ID record that is used by AMBER score. This record should be appended to each TRIPOS MOLECULE and should contain a unique label for that ligand. This type of modified mol2 file is required by AMBER score and its name should be assigned to the ligand_atom_file input parameter in the DOCK input file.

    To facilitate analysis of docking results, the header section of mol2 files written out by DOCK will contain fields, preceded by multiple #### signs, with relevant docking components (i.e. descriptors). For example, docking energies, their components, rmsd values, pharmacophore overlap, and footprint similarity, among others, will be written to file depending on which scoring function(s) were used. The Chimera program ViewDock tool can be used to load a DOCK multi-mol2 files containing various descriptors which can be examined in the ViewDock ListBox. This can be a useful way to prioritize subsets of compounds from a large virtual screen. ListBox descriptors can easily be sorted which facilities the isolation of compounds with user-favored properties.

    For extensive details on the MOL2 format, as well as example files, please refer to the archived Tripos documentation (Tripos-mol2.pdf).

    RETURN TO TABLE OF CONTENTS

    4.2. PDB Format

    This format is used for several of the DOCK accessories and the AMBER score function. For extensive details on the PDB format, as well as example files, please refer to the Protein Databank File Format Documentation (http://www.pdb.org/pdb/static.do?p=file_formats/pdb/index.html).

    RETURN TO TABLE OF CONTENTS

    4.3. BILD Format

    This format is used to visualize the directional vectors in pharmacophore models generated by the FMS protocol using the molecular modeling software Chimera. Please refer to the UCSF Computer Graphics Laboratory BILD format documentation(http://www.cgl.ucsf.edu/chimera/docs/UsersGuide/bild.html).

    First, the following DOCK input parameters need to be set. By default, the parameters "*_write_out_reference_ph4", "*_write_out_candidate_ph4" and "*_write_out_matched_ph4" or are set to "no" and no output pharmacophore mol2 file will be generated.

    For FMS alone scoring protocol:

    For using FMS score in the descriptor scoring function:

    In the pharmacophore output mol2 files "ref_ph4.mol2", "cad_ph4.mol2" and "mat_ph4.mol2", each pharmacophore point is represented by a set of atoms (Table X, column c). Note for HBD, HBA, ARO and RNG labeled pharmacophore points, more than one atom is used because both the center of the point (denoted by the first atom in the list) and the directionality (derived from all the atoms in the list) need to be recorded. The output pharmacophore mol2 file will then be converted to a bild file using a python script mol2bild.py (can be found in the DOCK bin directory). The bild file contains the directional vectors derived for all the pharmacophore points with directionality (HBD, HBA, ARO, RNG) in the original mol2 file. Different colors are used to represent different pharmacophore labels as shown in Table X column d. The directional vectors are modeled as 3D arrow geometric objects in the molecular modeling software Chimera, each consists of a cylinder (from the start point to an intermediary point) and a cone (from the intermediary point to the end point) representing the arrowhead. As an example, a 3D arrow for a ring pharmacophore feature is written as follows in the bild file.

    .color orange
    .arrow    0.64  -17.12  -10.61    0.99  -17.69   -9.86 0.01 0.04 0.75
    .color orange
    .arrow    0.64  -17.12  -10.61    0.30  -16.55  -11.36 0.01 0.04 0.75
    .color orange
    .arrow   -0.04  -15.65   -9.18    0.30  -16.22   -8.43 0.01 0.04 0.75
    .color orange
    .arrow   -0.04  -15.65   -9.18   -0.39  -15.09   -9.93 0.01 0.04 0.75
    .color orange
    .arrow   -0.22  -16.30   -4.16   -0.73  -16.46   -3.32 0.01 0.04 0.75
    .color orange
    .arrow   -0.22  -16.30   -4.16    0.29  -16.15   -5.01 0.01 0.04 0.75
    .color orange
    .arrow   -1.30  -14.47   -4.50   -1.81  -14.62   -3.65 0.01 0.04 0.75
    .color orange
    .arrow   -1.30  -14.47   -4.50   -0.79  -14.33   -5.35 0.01 0.04 0.75
    .color red
    .arrow   -7.12  -15.42   -2.60   -7.25  -14.95   -1.73 0.01 0.04 0.75
    .color red
    .arrow   -7.11  -15.54   -4.81   -7.24  -15.16   -5.73 0.01 0.04 0.75
    .color blue
    .arrow    2.65  -16.61  -11.14    1.71  -16.86  -10.90 0.01 0.04 0.75
    .color blue
    .arrow    1.53  -15.84  - 3.04    0.72  -16.07   -3.57 0.01 0.04 0.75


    Here, each Chimera object is defined by two lines. The first line defines the color of the Chimera object (e.g. ".color orange"). The second line defines the type of the geometric object (".arrow"), the start and end point of the arrow ( (x1, y1, z1)= (0.64, -17.12, -10.61) and (x2, y2, z2)= (0.99, -17.69, -9.86) in the first object in the above example, arrow pointing from (x1, y1, z1) to (x2, y2, z2) ), as well as the size of the arrow (radius of the cylinder r1= 0.01, the radius of the base of the cone r2=0.04, and the ratio of the length of cylinder to that of the complete arrow rho=0.75).

    Pharmacophore feature representation in ph4.mol2 and ph4.bild

    a. Label

    b. definition

    c. mol2

    d. bild

    PHO

    Hydrophobic

    C

    -

    HBD

    Hydrogen bond donor

    HD, N

    blue

    HBA

    Hydrogen bond acceptor

    O, HA

    red

    ARO

    Aromatic ring

    S, H1, H2

    orange

    RNG

    Non-aromatic ring

    P, H3, H4

    yellow

    POS

    Positively charged

    Na

    -

    NEG

    Negatively charged

    Cl

    -

    The complete bild file includes all the directional vectors derived from the pharmacophore mol2 files. Both the pharmacophore mol2 and bild files will be opened in Chimera for visualization of the pharmacophore model.

    RETURN TO TABLE OF CONTENTS


    References

    Allen, W.J., Rizzo, R.C. Implementation of the Hungarian Algorithm to Account for Ligand Symmetry and Similarity in Structure-Based Design. J. Chem. Inf. Model. 54:518-529, 2014.

    Allen, W.J.; Balius, T.E.; Mukherjee, S.; Brozell, S. R.; Moustakas, D. T.; Lang, P. T.; Case, D. A.; Kuntz, I. D.; Rizzo, R. C. DOCK 6: Impact of New Features and Current Docking Performance. J. Comput. Chem. 36(15): 1132-1156, 2015.

    Allen, W.J.; Fochtman, B.C.; Balius, T.E.; Rizzo, R.C. Customizable de novo design strategies for DOCK: Application to HIVgp41 and other therapeutic targets J. Comput. Chem. 38(30): 2641-2663, 2017.

    Balius, T.E., Mukherjee, S., and Rizzo, R.C., Implementation and Evaluation of a Docking-Rescoring Method using Molecular Footprint Comparisons. J. Comput. Chem. 32(10): 2273-2289, 2011.

    Balius, T.E., Allen, W.J., Mukherjee, S. and Rizzo, R.C. Grid-based Molecular Footprint Comparison Method for Docking and De Novo Design: Application to HIVgp41. J. Comput. Chem. 34(14): 1226-1240, 2013.

    Balius, T.E., Tan, Y.S., Chakrabarti, M., DOCK 6: Incorporating hierarchical traversal through precomputed ligand conformations to enable large-scale docking. J. Comput. Chem. 45(1): 47-63, 2024. https://doi.org/10.1002/jcc.27218

    Balius, T. E., Fischer, M., Stein, R. M., Adler, T. B., Nguyen C. N., Cruz A., Gilsonc M. K., Kurtzman, T., Shoichet, B. K., Testing inhomogeneous solvation theory in structure-based ligand discovery. Proc. Natl. Acad. Sci. USA., 114 (33): E6839-E6846, 2017

    Bender, A., Mussa, H.Y., Glen, R.C., Reiling, S. Similarity Searching of Chemical Databases Using Atom Environment Descriptors (MOLPRINT 2D): Evaluation of Performance. J. Chem. Inf. Comput. Sci. 2004, 44, 1708.

    Brozell, S.R., Mukherjee, S., Balius, T.E., Roe, D.R., Case, D.A., Rizzo, R.C., Evaluation of DOCK 6 as a Pose Generation and Database Enrichment Tool. J. Comput. Aided Mol. Design. 26(6): 749-773, 2012.

    Coleman, R.G., Carchia, M., Sterling, T., Irwin, J.J., Shoichet, B.K., Ligand Pose and Orientational Sampling in Molecular Docking. PLOS ONE 8(10): e75992, 2013.

    Deb, K.; Pratap, A.; Agarwal, S.; Meyarivan, T. A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE Transactions on Evolutionary Computation. 6: 182-97, 2002.

    DesJarlais, R.L. and Dixon, J.S. A Shape-and chemistry-based docking method and its use in the design of HIV-1 protease inhibitors. J. Comput-Aided Molec. Design. 8: 231-242, 1994.

    Ewing, T. J. A.; Makino, S.; Skillman, A. G.; Kuntz, I. D. DOCK 4.0: search strategies for automated molecular docking of flexible molecule databases. J. Comput-Aided Molec. Design. 15: 411-428 (2001).

    Ewing, T.J.A. and Kuntz, I.D., Critical evaluation of search algorithms for automated molecular docking and database screening. J. Comput. Chem. 18: 1175-1189, 1997.

    Ferro, D.R. and Hermans, J. Different best rigid-body molecular fit routine. Acta. Cryst. A. 33: 345-347, 1977.

    Graves, A.P., Shivakumar, D.M., Boyce, S.E., Jacobson, M.P., Case, D.A. and Shoichet, B.K. Rescoring Docking Hit Lists for Model Cavity Sites: Predictions and Experimental Testing. J. Mol. Biol. 377:914-934, 2008.

    Hawkins, G. D.; Cramer, C. J.; Truhlar, D. G. Pairwise Solute Descreening of Solute Charges from a Dielectric Medium. Chem. Phys. Lett. 246: 122-129, 1995

    Hawkins, G. D.; Cramer, C. J.; Truhlar, D. G. Parametrized models of aqueous free energies of solvation based on pairwise descreening of solute atomic charges from a dielectric medium. J. Phys. Chem. 100: 19824-19839, 1996

    Irwin, J.J. and Shoichet, B.K. ZINC - A free database of commercially available compounds for virtual screening. J. Chem. Inf. Model. 45: 177-182, 2005.

    Jiang, L.; Rizzo, R. C. Pharmacophore-Based Similarity Scoring for DOCK. J. Phys. Chem. B, 119 (3), 1083-1102, 2015.

    Kollman, P. A.; Massova, I.; Reyes, C.; Kuhn, B.; Huo, S.; Chong, L.; Lee, M.; Lee, T.; Duan, Y.; Wang, W.; Donini, O.; Cieplak, P.; Srinivasan, J.; Case, D. A.; Cheatham, T. E., Calculating structures and free energies of complex molecules: combining molecular mechanics and continuum models. Acc. Chem. Res. 33: 889-897, 2000

    Kuhl, F.S., Crippen, G.M., and Friesen, D.K. A Combinatorial Algorithm for Calculating Ligand Binding. J. Comput. Chem. 5:24-34, 1984.

    Kuhn, H. W. The Hungarian method for the assignment problem. Nav. Res. Logist. Q. 2:83-97, 1955.

    Kuntz, I.D., Blaney, J.M., Oatley, S.J., Langridge, R. and Ferrin, T.E. A geometric approach to macromolecule-ligand interactions. J. Mol. Biol. 161: 269-288, 1982.

    Lang, P.T., Brozell, S.R., Mukherjee, S., Pettersen, E.T., Meng, E.C., Thomas, V., Rizzo, R.C., Case, D.A., James, T.L., Kuntz, I.D. DOCK 6: Combining Techniques to Model RNA-Small Molecule Complexes. RNA 15:1219-1230, 2009.

    Liu, H.-Y., Kuntz, I. D., and Zou, X. Pairwise GB/SA Scoring Function for Structure-based Drug Design. J. Phys. Chem. B. 108: 5453-5462, 2004.

    Luty, B. A.; Wasserman P.F.; Hodge C.N.; Zacharias M.; McCammon J.A. A Molecular Mechanics / Grid Method for Evaluation of Ligand-Receptor Interactions. J. Comput. Chem. 16:454-464, 1995.

    Matos, G.D.R., Pak, S., and Rizzo, R.C. Descriptor-Driven de Novo Design Algorithms for DOCK6 Using RDKit. J. Chem. Inf. Model., 63(18): 5803-5822, 2023. https://doi.org/10.1021/acs.jcim.3c01031

    Meng, E.C., Gschwend, D.A., Blaney, J.M. and Kuntz, I.D. Orientational sampling and rigid-body minimization in molecular docking. Proteins. 17(3): 266-278, 1993.

    Meng, E.C., Shoichet, B.K. and Kuntz, I.D. Automated docking with grid-based energy evaluation. J. Comp. Chem. 13: 505-524, 1992.

    Miller, M.D., Kearsley, S.K., Underwood, D.J. and Sheridan, R.P. FLOG -A system to select quasi-flexible ligands complementary to a receptor of known three-dimensional structure. J. Comput. Aided Mol. Design. 8: 153-174, 1994.

    Moustakas, D.T., Lang, P.T., Pegg, S., Pettersen, E.T., Kuntz, I.D., Broojimans, N., Rizzo, R.C. Development and Validation of a Modular, Extensible Docking Program: DOCK 5. J. Comput. Aided Mol. Design. 20:601-609, 2006.

    Mukherjee, S., Balius, T.E., and Rizzo, R.C., Docking Validation Resources: Protein Family and Ligand Flexibility Experiments. J. Chem. Inf. Model., 50(11): 1986-2000, 2010.

    Munkres, J. Algorithms for the assignment and transportation problems. J. Soc. Indust. Appl. Math. 5:32-38, 1957.

    MySinger, M.M., and Shoichet, B.K., Rapid context-dependent ligand desolvation in molecular docking. J. Chem. Inf. Model., 50(9): 1561-1573, 2010.

    Nelder, J.A. and Mead, R., A Simplex-Method for Function Minimization. Computer Journal, 7: 308-313, 1964.

    Onufriev, A., Bashford, D., and Case, D.A. Exploring protein native states and large-scale conformational changes with a modified generalized Born model. Proteins. 55:383-394, 2004.

    Pearlman, D.A., Case, D.A.,Caldwell, J.W., Ross, W.S., Cheatham, III, T.E., DeBolt, S., Ferguson, D., Seibel, G. and Kollman, P.A. AMBER, a package of computer programs for applying molecular mechanics, normal mode analysis, molecular dynamics and free energy calculations to simulate the structural and energetic properties of molecules. Comp. Phys. Commun. 91:1-41, 1995.

    Prentis, L.E.; Singleton, C.D.; Bickel, J.D.; Allen, W.J.; Rizzo, R.C. A Molecular Evolution Algorithm for Ligand Design in DOCK. J. Comput. Chem. 43(29):1942-1963, 2022.

    Rizzo, R. C.; Aynechi, T.; Case, D. A.; Kuntz, I. D. Estimation of Absolute Free Energies of Hydration Using Continuum Methods: Accuracy of Partial Charge Models and Optimization of Nonpolar Contributions. J. Chem. Theory Comput. 2: 128-139, 2006.

    Sareni, B., Krahenbuhl, L., Fitness sharing and niching methods revisited. IEEE Transactions on Evolutionary Computation, Institute of Electrical and Electronics Engineers, 1998, 2, 8.

    Sastry, G.M., Dixon, S.L., Sherman, W. Rapid Shape-Based Ligand Alignment and Virtual Screening Method Based on Atom/Feature-Pair Similarities and Volume Overlap Scoring. J. Chem. Inf. Model, 2011, 51 (10): 2455-2466, 2015.

    Shoichet, B.K., Bodian, D.L. and Kuntz, I.D. Molecular docking using shape descriptors. J. Comp. Chem. 13(3): 380-397, 1992.

    Shoichet, B.K. and Kuntz, I.D. Protein docking and complementarity. J. Mol. Biol. 221: 327-346, 1991.

    Singleton, C.D. (2018). Computer-aided Design of Fusion Inhibitors Targeting Ebolavirus. Order No. 10746080, State University of New York at Stony Brook

    Srinivasan, J.; Cheatham, T. E.; Cieplak, P.; Kollman, P. A.; Case, D. A., Continuum solvent studies of the stability of DNA, RNA, and phosphoramidate - DNA helices. J. Am. Chem. Soc. 120:9401-9409, 1998.

    Trott, O and Olson, A. J. AutoDock Vina: Improving the speed and accuracy of Docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 31:455-461, 2010.

    Tsui, V. and Case,D.A. Theory and applications of the generalized solvation model in macromolecular simulations. Biopolymers. 56:275-291, 2001.

    Verkhiver, G.M.; Rejto, P.A.; Bouzida, D.; Arthur, S.; Colson, A.B.; et. al. Towards Understanding the Mechanisms of Molecular Recognition by Computer Simulation of Ligand-Protein Interactions. J. Mol. Recog. 12:371-389 (1999)

    Wang, J., Wolf, R.M., Caldwell, J.W., Kollman, P.A. and Case, D.A. Development and testing of a general Amber force field. J. Comput. Chem. 25:1157-1174, 2004.

    Weiser, J., Shenkin, P.S., and Still, W.C. Approximate atomic surfaces from linear combinations of pairwise overlaps (LCPO). J. Comput. Chem. 20:217-230, 1999.

    Zou, X. Q., Sun, Y. X., and Kuntz, I. D. Inclusion of solvation in ligand binding free energy calculations using the generalized-born model. J. Am. Chem. Soc. 121 (35): 8033-8043, 1999.

    RETURN TO TABLE OF CONTENTS


    Acknowledgments

    The developers gratefully acknowledge the use of computational facilities at Stony Brook University and the Ohio Supercomputer Center. We thank OpenEye Scientific Software for an academic license.

    RETURN TO TABLE OF CONTENTS
